4 Spool Tractor Monoblock Hydraulic Directional Control Valve P40L/Min 31.5MPa Pressure

4 Spool Tractor Monoblock Hydraulic Directional Control Valve P40L/Min 31.5MPa Pressure
4 Spool Tractor Monoblock Hydraulic Directional Control Valve P40L/Min 31.5MPa Pressure 4 Spool Tractor Monoblock Hydraulic Directional Control Valve P40L/Min 31.5MPa Pressure 4 Spool Tractor Monoblock Hydraulic Directional Control Valve P40L/Min 31.5MPa Pressure

Large Image :  4 Spool Tractor Monoblock Hydraulic Directional Control Valve P40L/Min 31.5MPa Pressure

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: P40
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: Negotiable
Packaging Details: Carton Packing
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 sets per year
Detailed Product Description
Model No.: 4P40 Oil Port: G1/2"
Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Pressure: 31.5MPa
High Light:

hydraulic monoblock valves

,

hydraulic directional valve



4 Spool Tractor Hydraulic Cylinder Monoblock Directional Control Valve P40L/Min




Spool: 4
flow rate: 40 L / min
Nom pressure: 20MPa
Maximum pressure: 31.5MPa
Standard thread: G1/2"





 Spool:    4 Spool
 Flow rate:   40 L / min
 Nom pressure:   20MPa
 Maximum pressure:   31.5MPa
 Standard thread:   G1/2"






Description
Manually or mechanically controlled hydraulic directional control valve Р40 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.



Construction
Р40 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating

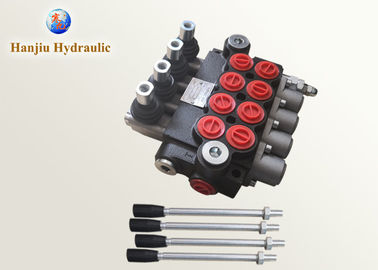

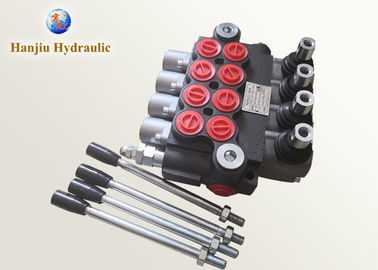

4 Spool Tractor Monoblock Hydraulic Directional Control Valve P40L/Min 31.5MPa Pressure 04 Spool Tractor Monoblock Hydraulic Directional Control Valve P40L/Min 31.5MPa Pressure 1

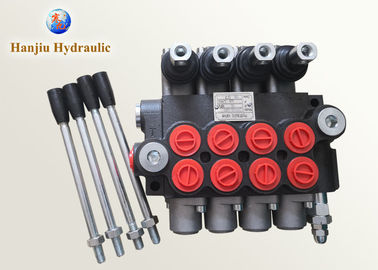

4 Spool Tractor Monoblock Hydraulic Directional Control Valve P40L/Min 31.5MPa Pressure 2
