Professional 4 Spool Hydraulic Control Valve / Monoblock Loader Valve 80LPM

Professional 4 Spool Hydraulic Control Valve / Monoblock Loader Valve 80LPM
Professional 4 Spool Hydraulic Control Valve / Monoblock Loader Valve 80LPM Professional 4 Spool Hydraulic Control Valve / Monoblock Loader Valve 80LPM Professional 4 Spool Hydraulic Control Valve / Monoblock Loader Valve 80LPM

Large Image :  Professional 4 Spool Hydraulic Control Valve / Monoblock Loader Valve 80LPM

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: P80
Payment & Shipping Terms:
Minimum Order Quantity: 50 PCS
Price: Negotiable
Packaging Details: Carton Packing
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000000 sets per year
Detailed Product Description
Model: 4P80 Oil Port: G1/2"
Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Pressure: 31.5MPa
High Light:

hydraulic control valve

,

hydraulic directional valve



4 Spool Monoblock Valve / Manual distributors / Hydraulic command 80LPM





P80 Monoblock Directional Control Valve



PRODUCT INTRODUCTION P80 series
Product Name  Monoblock Directional Control Valve 5.jpg
Product No  4P80
Oil Port  G1/2"
Spool Range  1-6





The hydraulic distributor Р80 is used for switching on/off and directing the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tank. It is manufactured with up to 6 plungers





Product Description:



1.Nominal Flow:80L/min Max 80L/Min, Max Working Pressure 315Bar

2.Operation Methods: Pneumatic Control, Electrical +Pneumatic control, Electric+ hydraulic Control, Remote Control

3.Positioning Return Modes: Ball locking; Spring Return

4.Spool Functions: O  A  Y etc

5.Thread: G1/2; G3/4;M18*1.5;7/8-14UNF;3/4-16UNF

6.Oil Way: Parallel Circuit, Power Beyond Option

7.Application: Agricultural tractor,Sanitation Machines, etc

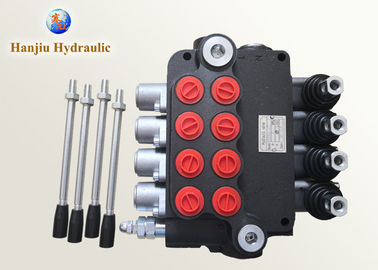

Professional 4 Spool Hydraulic Control Valve / Monoblock Loader Valve 80LPM 1

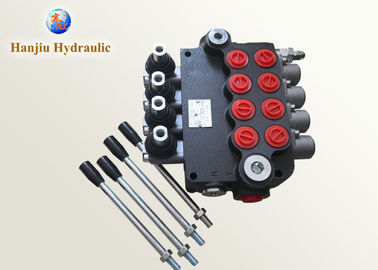

Professional 4 Spool Hydraulic Control Valve / Monoblock Loader Valve 80LPM 2

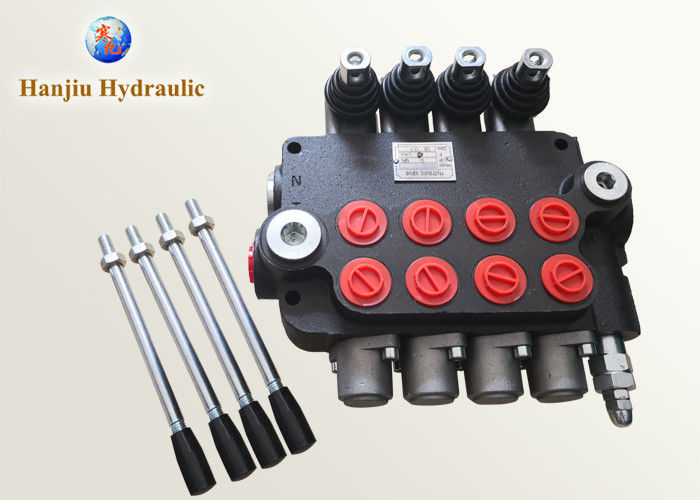

Professional 4 Spool Hydraulic Control Valve / Monoblock Loader Valve 80LPM 3
