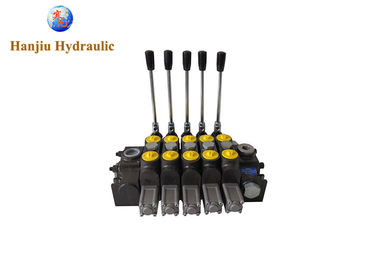

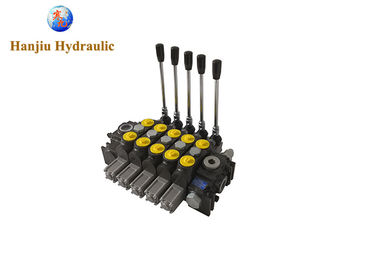

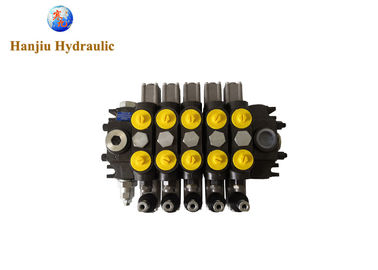

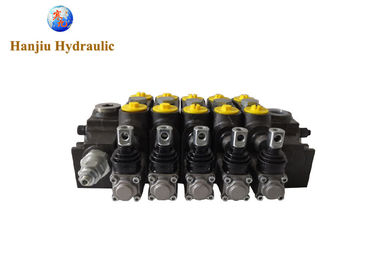

Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min

Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min
Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min

Large Image :  Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: DCV140
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 19-25 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Detailed Product Description
Model No.: DCV140-5 Warranty: 12-18 Months
Spool: 1, 2, 3, 4, 5, 6, ... Flow: 140 Liters
Pressure: 31.5Mpa
High Light:

hydraulic monoblock valves

,

hydraulic directional valve



Timber trucks hydraulic control valves 5 section 140 l/min with manual control





Specification





Norminal Flow 120L/min
Max.flow 140L/min
Max Pressure 315bar
Control Type pnuemaitic or customized
Pneumatic control pressure 5~10bar
Oil port size as customized
Spool stroke ±5mm





Advantages of our company and why it is worth buying from us:
A wide range of control valves with manual, electromagnetic, hydraulic control, as well as hydraulic motors, hydraulic pumps, valves and other hydraulic equipment, 12 months warranty







Features:

These directional valves meet the highest requirements and European quality standards, which are many times higher than domestic counterparts of P40, P80, DCV60, DCV100, so Hanjiu valve distributors have established themselves as an excellent replacement used in all types of utility, mining, lifting, garbage collection , snow removal, agricultural and all types of special equipment like: manipulators, tractors, combines, excavators, mini tractors, truck cranes, aerial platforms, forestry manipulators, wood splitters, choppers, garbage trucks, loaders, motor vehicles, motor graders, timber trucks, bulldozers, dump trucks, as well as on all types of woodworking, metal-cutting and other machines, presses and hydraulic stations, as an excellent replacement for OEM hydraulic control valves you may find on original equipment







Control Type:

hydrodistributor 2 section at 60 l / min with manual control
Various types of control like hydro-electromagnetic control at 12, 24 Volts, pneumatic control, hydraulic control with a hydraulic joystick, joystick control on cables and combined





Function:

As standard, there is a built-in pressure valve from 0 to 320 Bar, a spring return of the handle to the neutral position, as an additional option it is possible to fix the handle and the floating position, electric control, hydraulic control, pneumatic control





Material:

These directional control valves are manufactured on the most modern equipment and are tested on all manufacturing cycles, starting from checking the quality of casting the casing and the gaps between the pair of casing-spool. High precision spool manufacturing provides “zero leakage” during operation pressure and minimum pressure drop when switching the position of the spool relative to neutral position. The technical and design department uses materials high quality (hydro-cast iron) and unique precision when manufacture each unit distributor, this allows for high performance and minimal steam leaks







Dear customers, maybe you are looking for another directional control valve?


Let us know and our qualified professional will be happy to help you choose the valve that you need. To do this, you only need to specify the necessary technical characteristics of the valve, for example: the principle of its operation, sketch, device or scope of the equipment you require.


Our experts will provide free advice on the selection of an analogue of any hydraulic or pneumatic equipment. For all questions regarding the purchase of equipment, contact the phone numbers or email addresses listed below







Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min 0



Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min 1



Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min 2





Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min 3





Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min 4





Timber Trucks Hydraulic Motor Control Valve / Hydraulic Directional Valve 5 Section 140 L/Min 5
