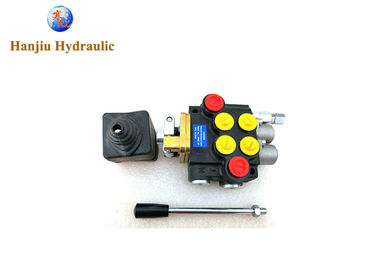

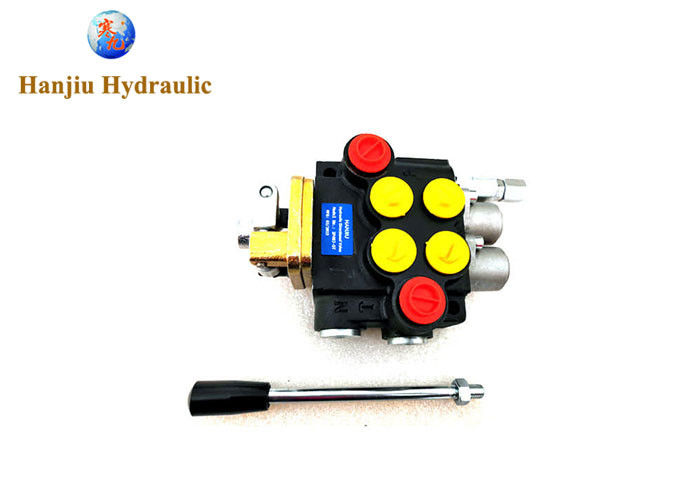

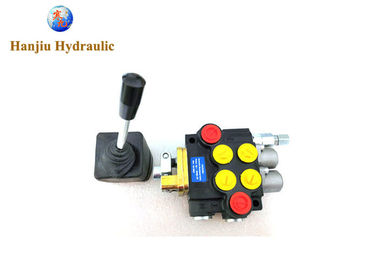

2P40 Monoblock Directional Control Spool Valve With Joystick

2P40 Monoblock Directional Control Spool Valve With Joystick
2P40 Monoblock Directional Control Spool Valve With Joystick 2P40 Monoblock Directional Control Spool Valve With Joystick 2P40 Monoblock Directional Control Spool Valve With Joystick

Large Image :  2P40 Monoblock Directional Control Spool Valve With Joystick

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: 2P40J-OT
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: Negotiable
Packaging Details: Inner carton / Outer carton / Pallet
Delivery Time: 25 - 35 work days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 1000000 sets per year
Detailed Product Description
Products Name: Loader Control Valve Model No.: 2P40
Warranty: Come With 1 Year Warranty Spool: 2
Flow: 40 Liters/ Min Rated Pressure: 16 MPa
Spool Function: 'O' Position: 'T'
P,T,N: 1/2' BSP A, B: 3/8' BSP
High Light:

hydraulic control valve

,

hydraulic monoblock valves



2P40 Monoblock Directional Control Spool Valve with Joystick





Quick Details:

Model No.: 2P40J-OT

P,T,N: 1/2' BSP

A, B: 3/8' BSP

Liters: 40 l/min




Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 40 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke +/-7 mm
Actuating force < 200 N
Modification/ Spools 1 to 8




Monoblock valve Flow Nom. Pressure Spool
P40 40L/Min

E 16 MPa

F 20 MPa

1
      2
      3
      4
      5
      6
P80 80L/Min

E 16 MPa

F 20 MPa

1
      2
      3
      4
      5
      6
P120 120L/Min

E 16 MPa

F 20 MPa

1
      2
      3
      4
      5
      6





Application:
This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.





Product description:

P40 series valves with middle-high pressure monoblock construction is developed based on Europe
technology.
1. Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be
returned.
2. Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working
pressure.
3. Oil way: Parallel circuit, power beyond option
4. Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
5. Valve construction: monoblock construction, 1-7 levers.
6. Spool Function: O,Y, P,A.
7. Option: Hydraulic lock is available to be added on A and B port.
8. Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric
control and etc.


Functions and features:

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
2. Work group number can be added according to demand, 7 spools at most.
3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.



Specifications:



2P40 Monoblock Directional Control Spool Valve With Joystick 0













2P40 Monoblock Directional Control Spool Valve With Joystick 1

2P40 Monoblock Directional Control Spool Valve With Joystick 2
