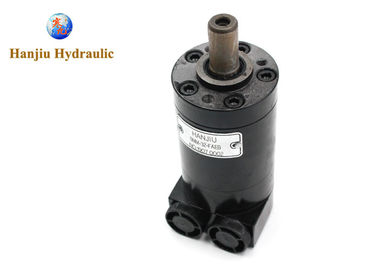

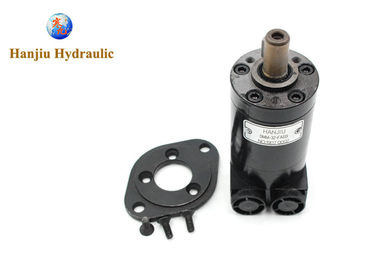

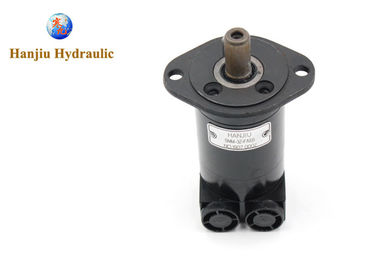

Hydraulic System Of CLAAS JAGUAR Combine Harvester Pump 068867.0 0000688670 Hydraulic Orbit Motor

Hydraulic System Of CLAAS JAGUAR Combine Harvester Pump 068867.0 0000688670 Hydraulic Orbit Motor
Hydraulic System Of CLAAS JAGUAR Combine Harvester Pump 068867.0 0000688670 Hydraulic Orbit Motor Hydraulic System Of CLAAS JAGUAR Combine Harvester Pump 068867.0 0000688670 Hydraulic Orbit Motor Hydraulic System Of CLAAS JAGUAR Combine Harvester Pump 068867.0 0000688670 Hydraulic Orbit Motor

Large Image :  Hydraulic System Of CLAAS JAGUAR Combine Harvester Pump 068867.0 0000688670 Hydraulic Orbit Motor

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMM
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: 1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time: 10 - 15 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability: 70000 pieces per year
Detailed Product Description
Type: Gerotor Hydraulic Motor Brand: HANJIU
Model No.: BMM32 Power: Hydraulic Oil
Displacement: 8,12, 20, 32, 40, 50 ML/R Weight: 2.5 Kgs
Feature: Replace OMM, M+S MM, EATON J Series Application: Plastic, Agricultural, Forestry, Industrial, Etc.
High Light:

slow speed high torque motor

,

lsht hydraulic motor

hydraulic system of the CLAAS JAGUAR combine harvester pump 068867.0 0000688670 hydraulic orbit motor



this type of hydraulic motor has the same technology with Europe/US products,as well as the performance

with long life,less leakage,widely used as below machines


- Fan and brush drives
- Conveyor belts on harvesters



Characteristic features:

• Smooth running over the entire speed range

• Constant operating torque over a wide speed range

• High starting torque

• High return pressure without the use of drain line (High pressure shaft seal)

• High efficiency

• Long life under extreme operating conditions



Model Crossing:



MOTOR CROSS REFERENCE TABLE

HANJIU
HYDRAULIC
M+S
HYDRAULIC
EATON
CHAR LYNN
ROSS
TRW
WHITE
CROSS
PARKER SAM
BREVINI
BOSCH
RECROTH
BMM MM MLHK J SERIES OMM       BGM MGX





Geometric displacement 32 cm³
• speed continuous. 800 min-1
• speed intermittent.¹ 630 rpm
• torque continuous. 40 Nm
• torque intermittent.¹ 57 Nm
• output continuous. 2.4 kW
• output intermittent.¹ 3.2 kW
• pressure continuous. 100bar
• pressure intermittent.¹ 140 bar
• pressure peak² 160 bar





Main Specifications:



type BMM8 BMM12 BMM20 BMM32 BMM40 BMM50
displacement 8.2 12.9 19.9 31.6 39.8 50.3
Max speed(rpm) rated 1537 1256 814 513 452 358
Cont. 1950 1550 1000 630 500 400
int. 2450 1940 1250 800 630 500
Max Torque
(N*M)
rated 8 13 19 31 37 33
Cont. 11 16 25 40 45 46
int. 15 23 35 57 70 88
peak 21 33 51 64 82 100
Max speed
(kw)
rated 1.3 1.7 1.7 1.7 1.7 1.2
Cont. 1.8 2.4 2.4 2.4 2.2 1.8
int. 2.6 3.2 3.2 3.2 3.2 3.2
Max pressure
drop(MPa)
rated 9 9 9 9 8.5 6
Cont. 10 10 10 10 9 7
int. 14 14 14 14 14 14
peak 20 20 20 16 16 16
Max flow(L/min) rated 14 18 18 18 20 20
Cont. 18 20 20 20 20 20
int. 20 25 25 25 25 25
Weight(kg) 1.9 2 2.1 2.2 2.3 2.4



Type   Max.inlet pressure
BMM8-50 Cont. 17.5
(Mpa) Int. 22.5





Hydraulic System Of CLAAS JAGUAR Combine Harvester Pump 068867.0 0000688670 Hydraulic Orbit Motor 0

Hydraulic System Of CLAAS JAGUAR Combine Harvester Pump 068867.0 0000688670 Hydraulic Orbit Motor 1





  • Model: BMM32
  • Shipping Weight: 2.2 kg
  • Manufactured by: Hanjiu Technology





Please do not hesitate to contact us for further information, inquiries or orders.

Thank you for choosing 'Hanjiu' Hydraulics.
