Product Details:
Payment & Shipping Terms:
|
| Products Name: | Hydraulic Directional Control Valve | Model No.: | P40F-QTC10 |
|---|---|---|---|
| Spool: | 2 | Flow: | 40 Liters/ Min |
| Rated Pressure: | 16 MPa | P,T,N: | 1/2' BSP |
| High Light: | hydraulic control valve,hydraulic directional valve |
||

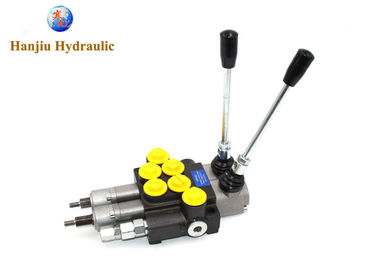

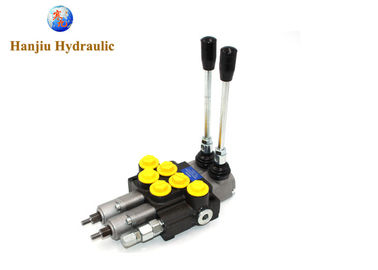

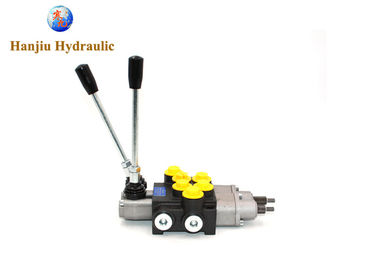

4 position hydraulic directional control valve for floating cylinder of snow plow, agricultural and heavy duty machines
Quick Details:
We specialized in Hydraulic directional control valve which are compatible with Italian & Bulgariamakes
They are available as follows:
*** monoblock, sectional
Several Applications:
- Relief Platforms
- Munck (Guindauto)
- Garbage Compactor
- Hydraulic Presses
- Winches
- Hydraulic Manual Control Systems
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 315 bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | +/-7 mm |
| Actuating force | < 200 N |
| Modification/ Spools | 1 to 8 |
| Monoblock valve | Flow | Nom. Pressure | Spool |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
1 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
2 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
3 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
4 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
5 |
| P40 | 40L/Min | 6 | |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
1 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
2 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
3 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
4 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
5 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
6 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
1 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
2 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
3 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
4 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
5 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
6 |
Application:
This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
