Product Details:
Payment & Shipping Terms:
|
| Type: | Manual Hydraulic Directional Control Valves | Structure: | Monoblock Directional Valve With Cable Control |
|---|---|---|---|
| Pressure: | Medium Pressure, High Pressure, 160-315bar | Flow: | 40 L/min, 80 L/min, 120 L/min |
| Connection: | Internal Thread | Power: | Hydraulic, Pneumatic, Solenoid, Manual, Electric |
| Application: | Agricultural Machines And Construction Machineries, Heavy Duty Tasks | Material: | Cast Iron |
| High Light: | hydraulic monoblock valves,hydraulic directional valve |
||

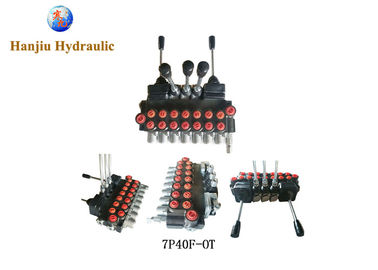

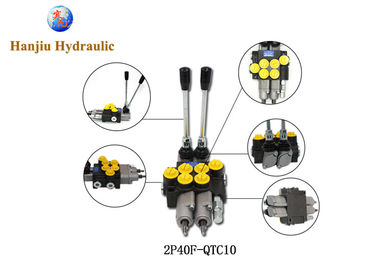

Manual hydraulic directional control valves 20L/min to 200L/min 1-12 spool, spring return detent return and floating
Simple, compact and heavy duty designed monoblock and sectional valve from 1-12 sections for open and closed centre hydraulic systems

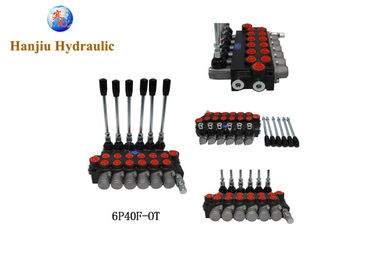

6 Spool Hydraulic Directional Control Valve + 2 Joysticks

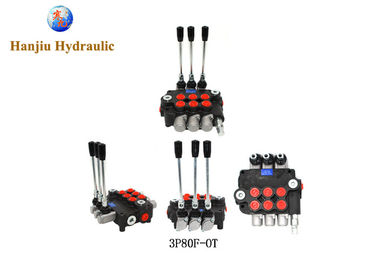

monoblock types with 1-7 working section, 40 liters to 80 liters
sectional types with 1-12 working section, 20 liters to 200 liters
Lever side control options:
manual, pneumatic control, electric and pneumatic control, hydraulic and electric control, hydraulic control and remote contro
With nominal pressure 160bar, max pressure up to 315bar
Joining port: L (screw connection)
parallel or serial action
Common or individual back valve for each plunger, with or without safety valve
Spool function: O, P. Y, M
Nominal diameter: G3/8;G1/2, M18*1.5, 7/8-14UNF, 3/4-16UNF
Available manual, pneumatic control, electric and pneumatic control ,hydraulic and electric control.
PARAMETERS
| Nom. Pressure (MPa) |
Max.Pressure (MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) |
hydraulic oil | ||
| Tem.rang (ºC) |
Visc.rang (mm2/S) |
filtrating accuracy (μm) |
||||
| 20 | 31.5 | 40 | ≤1 | -20~+80 | 10~400 | ≤10 |
| Flow rate | 40l/min |
| Spool function | Cylinder, motor spool, single acting |
| Thread | G3/8, M18*1.5,3/4-16 UNF-2B (SAE 8) |
| Control way | Spring and detent control |
| Max pressure | 315bar. |
| Spool diameter | 16mm |
| Monoblock valve | Flow | Nom. Pressure | Spool |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
1 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
2 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
3 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
4 |
| P40 | 40L/Min |
E 16 MPa F 20 MPa |
5 |
| P40 | 40L/Min | 6 | |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
1 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
2 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
3 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
4 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
5 |
| P80 | 80L/Min |
E 16 MPa F 20 MPa |
6 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
1 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
2 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
3 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
4 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
5 |
| P120 | 120L/Min |
E 16 MPa F 20 MPa |
6 |
Application:
This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor and can effectively control such actuating mechanisms like motor and oil cylinder.
