Product Details:
Payment & Shipping Terms:
|
| Model No.: | DCV40 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | O/Y/A | Oil Ports: | G1/2,G3/8 |
| High Light: | hydraulic monoblock valves,hydraulic directional valve |
||

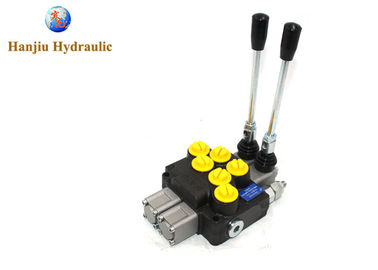

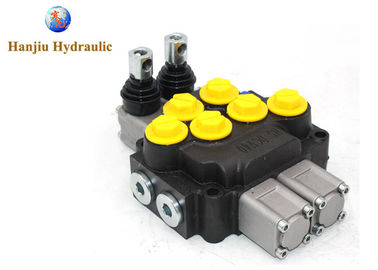

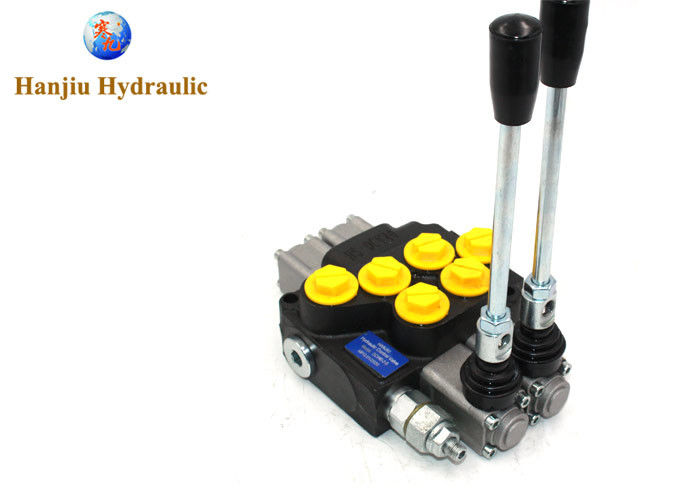

directional valve hydraulic manufacturing for mobile crushers sectional high pressure DCV40
Simple, compact and heavy duty designed sectional valve from 1 to 8 sections for open and closed center hydraulic systems.
Fitted with a main pressure relief valve and a load check valve on every working section.
Available with parallel or series circuit.
Optional carry-over port.
A wide variety of service ports and circuit valves.
Available manual, pneumatic, hydraulic, electro-hydraulic and remote with flexible cables spool control kits.
Diameter 25 mm (0,98 in.) interchangeable spools.
|
Norminal Flow
|
40 L/min
|
|
Max Flow
|
45 L/min
|
|
Max Pressure
|
350bar
|
|
Control Type
|
manual, pneumatic, hydraulic, electro-hydraulic
|
|
Allowed back pressure
|
≤1 mpa
|
|
Oil port size
|
customizable
|
| ambient temperature range | -40°-80°C |
| Structure | monoblock 1-8sections |
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
spool functional
Hanjiu: a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
