WHITE Agitator 10039180 SCHWING Hyd Motor Concrete Pump Spare Parts BUCHER BREL 470

WHITE Agitator 10039180 SCHWING  Hyd Motor Concrete Pump Spare Parts BUCHER BREL 470
WHITE Agitator 10039180 SCHWING  Hyd Motor Concrete Pump Spare Parts BUCHER BREL 470 WHITE Agitator 10039180 SCHWING  Hyd Motor Concrete Pump Spare Parts BUCHER BREL 470 WHITE Agitator 10039180 SCHWING  Hyd Motor Concrete Pump Spare Parts BUCHER BREL 470

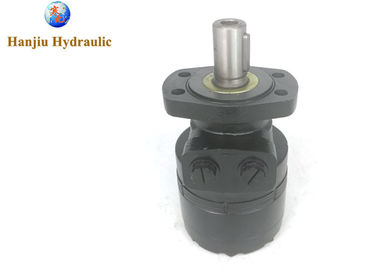

Large Image :  WHITE Agitator 10039180 SCHWING Hyd Motor Concrete Pump Spare Parts BUCHER BREL 470

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BMER-475
Payment & Shipping Terms:
Minimum Order Quantity: 30 Sets
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Detailed Product Description
Type: Hydraulic Orbital Torque Motor Speed: 160rpm-195rpm
OEM: 10039180 Displacement: 475cc
Warranty: 12-18 Months Torque: 1085N.M-1180N.M
Output: 14.5kw-16.5kw Pressure: 17.5mpa-19mpa
High Light:

cycloid hydraulic motor

,

hydraulic rotary motor

WHITE Agitator 10039180 SCHWING hyd motor concrete pump spare parts BUCHER BREL 470

Hanjiu High Torque BMER-475 Replaces American Parker/white Conical Cycloidal Hydraulic Oil Motor
BMER series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.

Main Specifications:

Type

BMER

125

BMER

160

BMER

200

BMER

230

BMER

250

BMER

300

BMER

350

BMER

375

BMER

475

BMER

540

BMER

750

Geometric displacement

(cm3 /rev.)

118 156 196 228 257 296 345 371 462 540 745
Max. speed (rpm) cont. 360 375 330 290 290 250 220 200 160 140 100
int. 490 470 425 365 350 315 270 240 195 170 120
Max. torque (N*m) cont. 325 450 530 625 700 810 905 990 1085 980 1050
int. 380 525 600 710 790 930 1035 1140 1180 1240 1180
peak 450 590 750 870 980 1120 1285 1360 1260 1380 1370
Max. output (kW) cont. 12.0 15 15.5 16.0 17.5 18.0 17.5 16.5 14.5 11.5 8.0
int. 14.0 17.5 18.0 19.0 20.0 21.0 20.0 19.0 16.5 15.0 10.0
Max. pressure drop (MPa) cont. 20.5 20.5 20.5 20.5 20.5 20.5 20.5 20.5 17.5 14 10.5
int. 24 24 24 24 24 24 24 24 19 17.5 12
peak 27.6 27.6 27.6 27.6 27.6 27.6 27.6 27.6 20.5 20.5 14
Max. flow (L/min) cont. 45 60 70 70 75 80 80 75 75 75 75
int. 60 75 85 85 90 95 95 90 90 90 90



Product details:



1, model number BMER-475
2, displacement 475ml/r
3, flange magneto Mount
4, shaft 1 1/4' (31.75) mm straight shaft
5, oil port 7/8-14 o-ring
6, drain ---
7, rotation Standard
8, paint Black
9, replace bucher brel 470


WHITE Agitator 10039180 SCHWING  Hyd Motor Concrete Pump Spare Parts BUCHER BREL 470 0

WHITE Agitator 10039180 SCHWING  Hyd Motor Concrete Pump Spare Parts BUCHER BREL 470 1








Applications:

HANJIU  Motor Orbital type is one type of high torque low speed hydraulic motors, with high efficiency and long life. Which can be widely used for kinds of Rollers, Heavey Machines, Construction Machines etc. To know more details, like technical data or drawing, pls directly contact us or to download from our main website.
