Dynamic Low Speed High Torque Hydraulic Motor 1inch Woodrufff Key BSP G1/2 Ports Cross Hydraulic Motor

Dynamic Low Speed High Torque Hydraulic Motor 1inch Woodrufff Key BSP G1/2 Ports Cross Hydraulic Motor

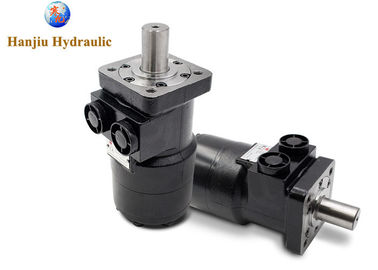

Dynamic Low Speed High Torque Hydraulic Motor 1inch Woodrufff Key BSP G1/2 Ports Cross Hydraulic Motor Dynamic Low Speed High Torque Hydraulic Motor 1inch Woodrufff Key BSP G1/2 Ports Cross Hydraulic Motor Dynamic Low Speed High Torque Hydraulic Motor 1inch Woodrufff Key BSP G1/2 Ports Cross Hydraulic Motor Dynamic Low Speed High Torque Hydraulic Motor 1inch Woodrufff Key BSP G1/2 Ports Cross Hydraulic Motor

Large Image :  Dynamic Low Speed High Torque Hydraulic Motor 1inch Woodrufff Key BSP G1/2 Ports Cross Hydraulic Motor

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMPH / Char Lynn H Series
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: Carton Box
Payment Terms: L/C, T/T, D/A, D/P, Western Union
Supply Ability: 80000 Pieces One Year
Detailed Product Description
Features: High Pressure Product Name: BMPH100
Displacement: 100CC Flnge: 4 Flange
Power: Hydraulic Oil Shaft Size: 25.4mm/1inch
High Light:

slow speed high torque motor

,

lsht hydraulic motor

Dynamic Low Speed High Torque Hydraulic Motor 1inch woodrufff key BSP G1/2 ports cross hydraulic motor





Product details:

type BMPH
displacement 100cc
flange: 4-3/8-16 Square-flange , pilot Ø 44.4 2.8
shaft Shaft Ø25.4, woodruff key
oil port G1/2





Designed for medium duty applications, these motors use industry-proven spool valve technology combined with state-of-the-art gerotors. In addition, a wide variety of mounting flanges, shafts, Ports and valving options provide design flexibility. Direction of shaft rotation and shaft speed can be controlled easily and smoothly throughout the speed range of the motor, and equipment can be driven direct, eliminating costly mechanical components.

Featuring a 1"diameter woodruff keyed cylindrical shaft with dual rotation. For light and medium duty applications. Good replacement for Char-Lynn “H” series.



Specification:



Type BMPH
36
BMPH
50
BMPH
80
BMPH
100
BMPH
125
BMPH
160
BMPH
200
BMPH
250
BMPH
315
BMPH
400
BMPH
500
Geometric displacement (cm3 /rev.) 36 51.7 77.7 96.2 120.2 157.2 194.5 240.3 314.5 389.5 486.5
Max. speed (rpm) cont. 1500 1150 770 615 490 383 310 250 192 155 120
int. 1650 1450 960 770 615 475 385 310 240 190 150
Max. torque (N·m) cont. 55 100 146 182 236 302 360 460 475 490 430
int. 76 128 186 227 290 370 440 570 555 580 560
peak 96 148 218 264 360 434 540 670 840 840 780
Max. output (kW) cont. 8 10 10 11 10 10 10 8.5 7 6 6
int. 11.5 12 12 13 12 12 12 10.5 8.5 7 7
Max. pressure drop (MPa) cont. 12.5 14 14 14 14 14 14 14 12 9.5 7
int. 16.5 17.5 17.5 17.5 17.5 17.5 17.5 17.5 14 11.5 9
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 18 13
Max. flow (L/min) cont. 55 60 60 60 60 60 60 60 60 60 60
int. 60 75 75 75 75 75 75 75 75 75 75
Weight (kg) 5.6 6 5.7 5.9 6 6.2 6.4 7 6.9 7.4 8

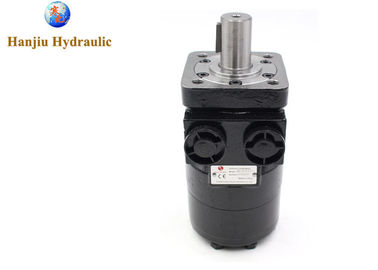

Dynamic Low Speed High Torque Hydraulic Motor 1inch Woodrufff Key BSP G1/2 Ports Cross Hydraulic Motor 0

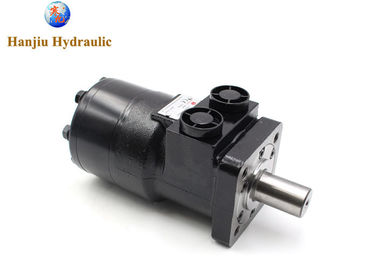

Dynamic Low Speed High Torque Hydraulic Motor 1inch Woodrufff Key BSP G1/2 Ports Cross Hydraulic Motor 1







We are professional manufacturer produce Hydraulic Orbital Motors,our motors match and Char Lynn and M+S and Brevini motor series



Please contact me for more details.

Tracy whatsapp/wechat :+8618132660311





Shijiazhuang Hanjiu Technology Co.,Ltd

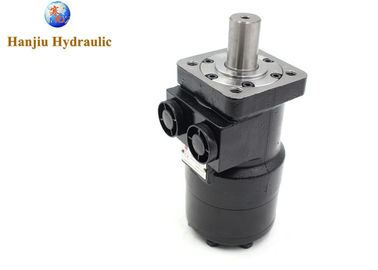

Dynamic Low Speed High Torque Hydraulic Motor 1inch Woodrufff Key BSP G1/2 Ports Cross Hydraulic Motor 2
