Hydraulic System Repair For Automatic Sprayer Uniport 10035C03 Jacto Steering Valve

Hydraulic System Repair For Automatic Sprayer Uniport 10035C03 Jacto Steering Valve
Hydraulic System Repair For Automatic Sprayer Uniport 10035C03 Jacto Steering Valve Hydraulic System Repair For Automatic Sprayer Uniport 10035C03 Jacto Steering Valve Hydraulic System Repair For Automatic Sprayer Uniport 10035C03 Jacto Steering Valve

Large Image :  Hydraulic System Repair For Automatic Sprayer Uniport 10035C03 Jacto Steering Valve

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: OSPC80 LS+OLSA
Payment & Shipping Terms:
Minimum Order Quantity: 50 Sets
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 1000000 Sets Per Year
Detailed Product Description
Model. No.: 101S-5-80-15-HC-PVFD-40 Relieve Valve: 15Mpa
Shock Valve: 21Mpa Function: Load Sensing
Rated Flow: 8 L/min Max Input Pressure: 15 MPa
Max Back Pressure: 2.5 MPa Valves: 1, 2, 3, 4 Options Available
High Light:

hydraulic orbital valve

,

forklift steering valve



Hydraulic System repair for automatic sprayer uniport 10035C03 Jacto steering valve




Brand OEM part Types
Jacto 10035C03 Pulverizador Uniport
Matão   coffee harvester Tornado Evolution
TDI   coffee harvester Tornado Evolution



Quick details:

  • we produce hydraulic steering valves for Forklifts, Loaders, Backholes, Tractors
  • variety version available from BZZ, 101, 101S, 102, 102S, 103S, 109, 109S, 060 series
  • variety types with same specifications with most OEM parts, also OSPB, OSPC, HKU, HKUS
  • meet all application on Heavy duty equipment, Ag machinery, Industrial



Features:



  • The same function of the 101 series
  • Including integrated valve (relief valve and checkproof valve)
  • Replace (ospc), M+S (HKU/4) series.
  • 101S Hydraulic steering unit is widely used in the steering control systems,



Applications:

The role of hydraulic steering valves is to increase the power steering wheel steering transmission to the transmission mechanism and change the direction of transmission. Widely used in agricultural machinery, shipbuilding machinery, garden machinery, road maintenance machinery, forestry machinery, construction machinery and mining machinery and other low-speed heavy vehicles. With it, the driver can achieve greater steering force control with a smaller steering force, and the performance is safe and reliable, the operation is light and flexible.






Specifications:



Parameters Series: 101s similar to OSPC
Function code 1,2,4 1,4
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400
Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 32 40
Max.input pressure(Mpa) 16
Relief Valve Pressure Settings ( MPa) 06,07,08,10,12,14,15,16
Shock Valve Pressure Settings ( MPa) 12,13,14,16,18,20,21,22
Max.cont.back pressure 2.5
Weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176

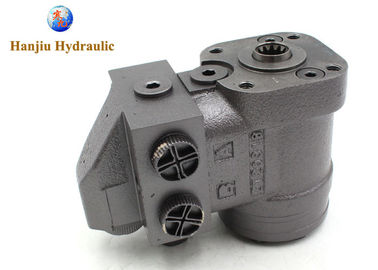

Hydraulic System Repair For Automatic Sprayer Uniport 10035C03 Jacto Steering Valve 0



We also make analogue steering orbitrol of M+S, , Eaton, , , Massey Ferguson, Claas, , ...

PV**-40,60,80 type priority valve is matched with the load sensing steering unit. When the hydraulic oil flow to teh priority valve,and the load or revolution changed.
PVF*-40,60,80 type priority valves is modulary design,matched with the 101S-5(L)(E) or 102S-5(L)(E)SCU;PVF*-40,60,80 static signal,PVFD-40,60,80 dynamic signals.

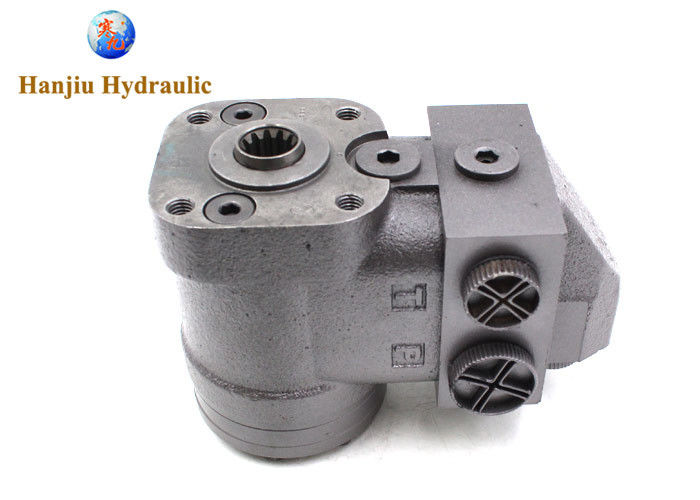

Hydraulic System Repair For Automatic Sprayer Uniport 10035C03 Jacto Steering Valve 1

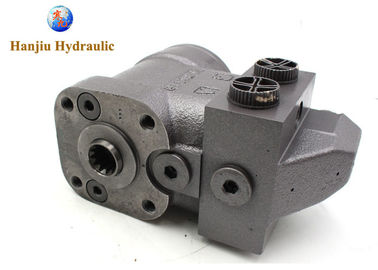

Hydraulic System Repair For Automatic Sprayer Uniport 10035C03 Jacto Steering Valve 2





Hanjiu is a hydraulic components manufacture, we are offering hydraulic motors, gear pumps,directional valves and more.We produce and supply only top quality, defect free hydraulic components that you can rely on.



we are willing to be your new supplier, because our products have lower price and good performance,

will saving you more extra cost,the best after sale service will less complaint from your consumers,

also stable delivery will make you have enough stock.
