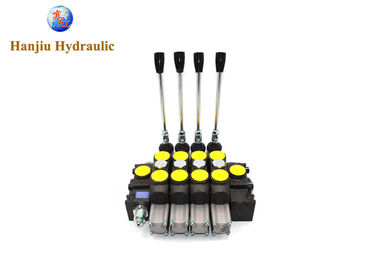

4 Spool Hydraulic Control Valve Sectional Valves DCV

4 Spool Hydraulic Control Valve Sectional Valves DCV
4 Spool Hydraulic Control Valve Sectional Valves DCV 4 Spool Hydraulic Control Valve Sectional Valves DCV 4 Spool Hydraulic Control Valve Sectional Valves DCV

Large Image :  4 Spool Hydraulic Control Valve Sectional Valves DCV

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: DCV60/4
Payment & Shipping Terms:
Minimum Order Quantity: 1 Sets
Price: 96 usd - 200 usd
Packaging Details: 1 pc/ carton
Delivery Time: 19 work days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 1000000 sets per year
Detailed Product Description
Type: Hydraulic Winches Accessories Structure: Directioanl Control Valve
Nominal Flow: 20 Liters To 200 Liters Max Pressure: 350 Bar
Operating Range: 100 - 315 Bar Temperature Range: -40 °C ~ 80 °C
High Light:

Hydraulic Control Sectional Valves

,

350 bar Hydraulic Control Valve

Hydraulic controls, 4 spool hydraulic control valve, sectional valves DCV







Quick overview:

Model: DCV60/6

Flow: 60LPM

Lever: 4







More available as below:

20 liters - 140 liters, 1 spool to 12 spool

for high pressure hydraulic system, such as drilling machine, sanitation, etc.

manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulicv

monoblock, sectional





DCV valve Flow Nom. Pressure Spool
DCV 20 20L/Min 100 ~315 BAR 1-12 sections
DCV 40 40L/Min 100 ~315 BAR 1-12 sections
DCV 45 45L/Min 100 ~315 BAR 1-12 sections
DCV 60 60L/Min 100 ~315 BAR 1-12 sections
DCV 100 100L/Min 100 ~315 BAR 1-12 sections
DCV 140 140L/Min 100 ~315 BAR 1-12 sections
DCV 200 200L/Min 100 ~315 BAR 1-12 sections







DCV directional control valve have the features of below

1, high pressure,
2, compact construct,
3, stable over load valve
4, performance and high universality.
5, Auxiliary valve:over load valve, anti-cavitation valve, combined valves, etc.
6, Spool function:A, O, Y, P, etc.
7, Control type:manual, joystick, cable, pneumatic, electro-hydraulic, electro-pneumatic, etc.
8, Circuit type:parallel,series-parallel
9, Carry-over port as hydraulic source for other parts
10, Structure:Monoblock, sectional








Whatever your need for Hydraulic Directional Control Valve, Hanjiu has a solution



4 Spool Hydraulic Control Valve Sectional Valves DCV 04 Spool Hydraulic Control Valve Sectional Valves DCV 14 Spool Hydraulic Control Valve Sectional Valves DCV 2







4 Spool Hydraulic Control Valve Sectional Valves DCV 3
