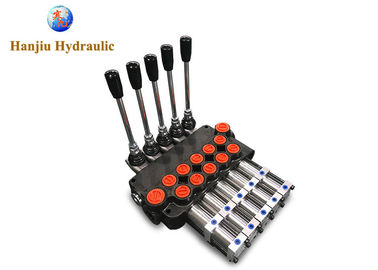

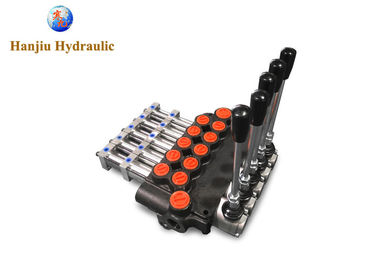

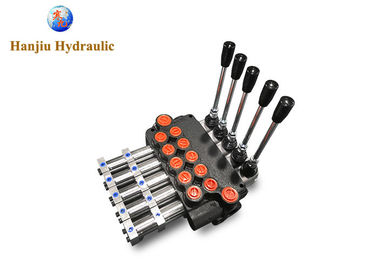

Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control

Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control
Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control

Large Image :  Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: P80
Payment & Shipping Terms:
Minimum Order Quantity: 30 units
Price: Negotiable
Packaging Details: Carton Packing and finally with a Tray, or Wooden Box
Delivery Time: 10-15 work days
Payment Terms: L/C, T/T
Supply Ability: 300000 sets per year
Detailed Product Description
Model No.: 5P80 Warranty: 12-18 Months
Spool: 1, 2, 3, 4, 5, 6, ... Flow: 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Function: O/Y/P/A Oil Ports: G1/2,G3/8
High Light:

Hydraulic Monoblock manual Control Valve

,

Hydraulic Monoblock pneumatic Control Valve



hydraulic monoblock control valve 80liters manual control pneumatic control

globe control valve

Р80 is a mono-bloc distributor. Its body is made of cast iron EN-GJL300. Plungers are made of carburized steel with hard chrome plating.

This product is applicable to special vehicles like truck mounted crane, wrecker, scrubbing machine and dynamic compactor, water drilling rig machines

Functions and features

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
2. Work group number can be added according to demand, 7 spools at most.
3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.

Specification:

Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 80 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke +/-7 mm
Actuating force < 200 N
Modification/ Spools up to 8



Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control 0

Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control 1

Port size

BSP Thread Metric thread US standard UNF thread US standard NTP thread
code Thread size code Thread size code Thread size code Thread size
G04 G1/4 M16 M16X1.5 U08 1/2-20UNF N04 NPT1/4
G06 G3/8 M18 M18X1.5 U10 5/8-12UNF N06 NPT3/8
G08 G1/2 M20 M20X1.5 U12 3/4-16UNF N08 NPT1/2
G12 G3/4 M22 M22X1.5 U16 1-12UNF N12 NPT3/4
G16 G1 M27 M27X2 U22 11/8-12UNF N16 NPT1
    M33 M33X2





control type

Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control 2



spool type

Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control 3



spool returning type

Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control 4





Hydraulic Monoblock Control Valve 80 Liters 31.5mpa 5 Banks Manual Control With Pneumatic Control 5



Hanjiu is a leading hydraulic components manufacture,we produce the most complete range of hydraulic motors,hydraulic steering units,directional control valves,gear pumps and more.

High quality,stable delivery time ,competitive price and good after-sales service is the crucial factor of our rapid growth.



We are proud of being your solution partner in hydraulics.



Strong at alternative,aftersales market , Eaton Char-lynn, Parker, M+S, industiral, mobile, agricultural, marine  parts,be able to support your business with more & better hydraulic solutions
