20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve

20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve
20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve

Large Image :  20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: P series, DCV series
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: Contact the seller to ask
Packaging Details: Box, Pallet
Delivery Time: 19 work days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 1000000 sets per year
Detailed Product Description
Type: Hydraulic Control Valve Structure: Monoblock, Sectional
Nominal Flow: 20 Liters To 200 Liters Max Pressure: 250 Bar, 350 Bar
Lever: 1 - 12 Temperature Range: -40 °C ~ 80 °C
High Light:

20 Lpm hydraulic directional valve

,

200 Lpm hydraulic directional valve

,

Monoblock Hydraulic Directional Valve



Hydraulic Directional Valve 20 lpm - 200 lpm 1 lever - 12 lever







Hydraulic Direction Valve: According to the purpose is divided into one-way valve and directional valve.



(1) one-way valve: only allow the fluid in the pipeline one-way connected, the reverse is cut off.

(2) directional valve: change the connection between different pipelines, according to the valve core in the valve body in the working position of two, three, etc.. According to the number of channels controlled by the two, three, four, five, etc., such as two two, three three, three five according to the spool drive, such as separation, maneuvering, electromagnetic, hydraulic, etc.



Our company provides Hydraulic Directional Valves

According to the structure, it can be divided into Monoblock type and Sectional type



*** for high pressure hydraulic system, such as drilling machine, sanitation, etc.

*** Manual, Joystick, Cable, Pneumatic, Solenoid, Electro-Pneumatic, Electro-hydraulic

*** Monoblock, Sectional

*** 20 liters -200 liters, 1 Spool to 12 spool

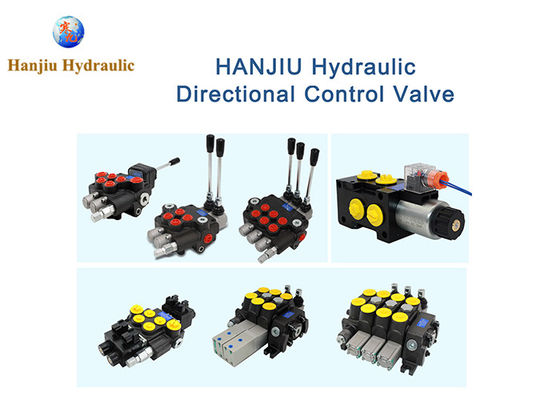

20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 0





Product Characteristics:

Innovative Designs
Professional Quality

Compact structure
Reliable work
High security

Customer Satisfaction









There are several other factors to consider when ordering:

1. Type of valve

2. Flow rate of valve

3. Valve pressure

4. Control mode of valve

5. Structure, installation and connection of the valve

6. Replacability. For example, whether the components of the original equipment are replaceable

7. Reputation, service life, maintenance convenience and supply of products

8. Dielectric compatibility

9. Interface size

10, the weight

11, the price

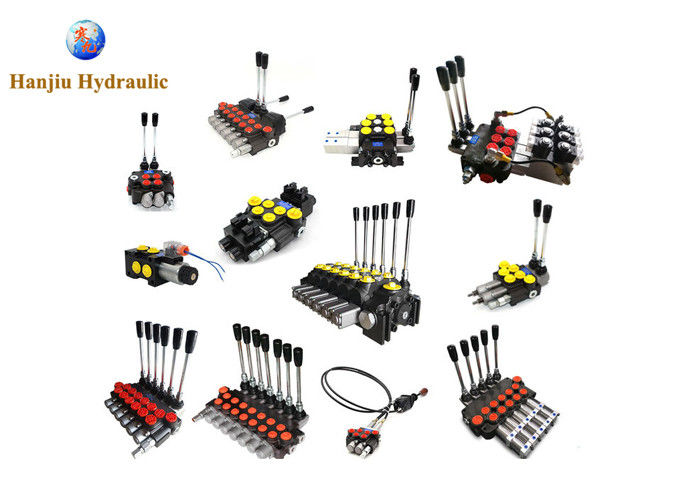

20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 1

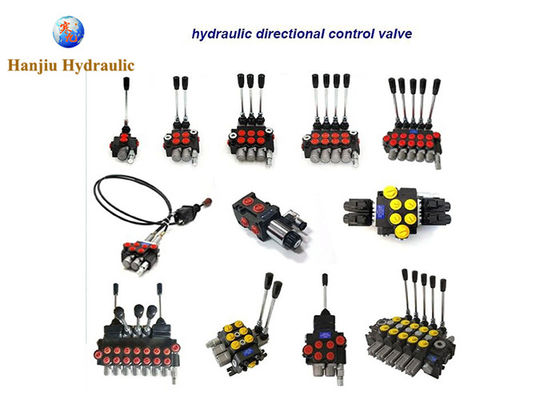

20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 2

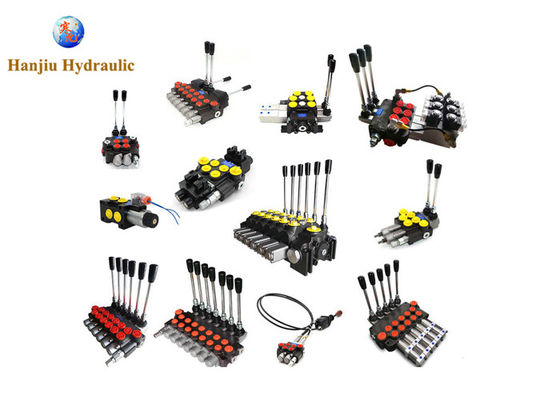

20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 3





DCV directional control valve have the features of high pressure, compact construct, stable over load valve
performance and high universality.It is widely used on construction machine,sanitation vehicle, drilling machine, special purpose vehicle, etc.



  • Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
  • Spool function:A, O, Y, P, etc.
  • Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
  • Circuit type:parallel,series-parallel
  • C port(oil bridge) as hydraulic source for other parts
  • Structure:Sectional











20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 4



20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 5







P40 series valves with middle-high pressure monoblock construction is developed based on Europe
technology.



Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 40 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke 6 mm
Actuating force < 200 N
Modification/ Spools with 1 to 7





Ports thread

BSP Thread Metric thread US standard UNF thread US standard NTP thread
code Thread size code Thread size code Thread size code Thread size
G04 G1/4 M16 M16X1.5 U10 5/8-12UNF N06 NPT3/8
G06 G3/8 M18 M18X1.5 U12 3/4-16UNF N08 NPT1/2
G08 G1/2 M20 M20X1.5 U14 7/8-14UNF N12 NPT3/4
G12 G3/4 M22 M22X1.5 U16 1-12UNF
    M27 M27X2


Functions and features

1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;


2. Work group number can be added according to demand, 7 spools at most.


3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by

customers;


4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.


5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.













20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 6





20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 7



20 Lpm - 200 Lpm 1 Lever - 12 Lever Hydraulic Directional Valve 8





Hanjiu: a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.





No matter what hydraulic directional valve you need, give us a call with your inquiry
