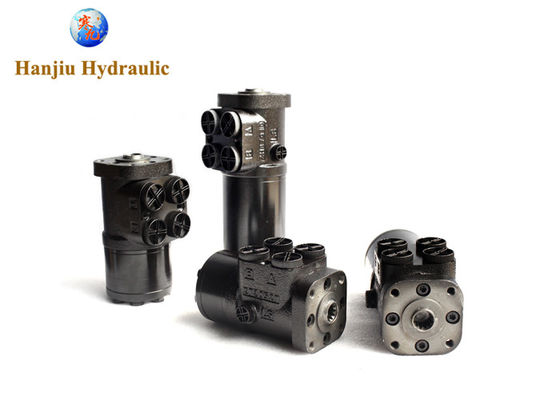

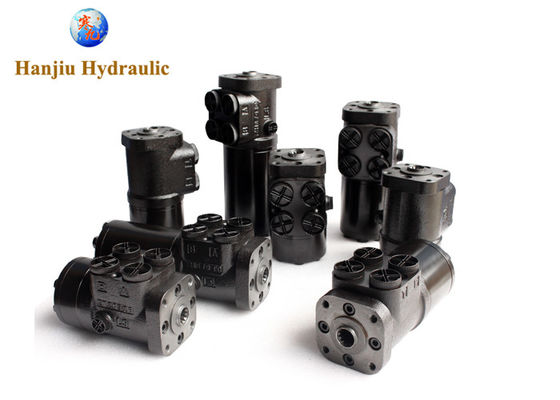

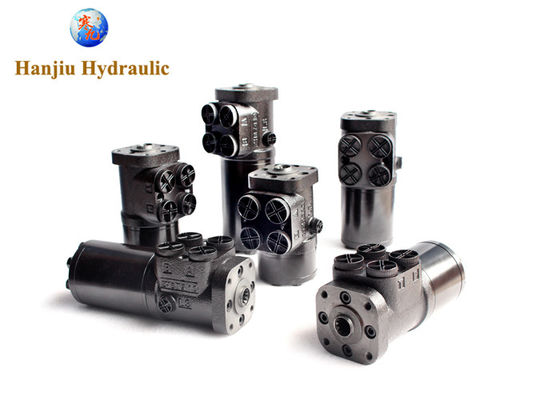

Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa

Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa
Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa

Large Image :  Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: BZZ
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: Contact the seller to ask
Packaging Details: Box, Pallet
Delivery Time: 25 - 35 work days
Payment Terms: L/C, T/T, D/P, Western Union
Supply Ability: 1000000 Sets Per Year
Detailed Product Description
Item: Hydraulic Steering Unit Type: Load Sensing
Model: BZZ-5T Displacement: 50 Ml/r, 80 Ml/r, 100 Ml/r, 125 Ml/r, 160ml/r, ..., 1000 Ml/r
Flow: 4 Lpm - 75 Lpm Max Input Pressure: 16 MPa
High Light:

50 Ml/R Hydraulic Steering Unit

,

1000 Ml/R Hydraulic Steering Unit

,

16 Mpa Hydraulic Steering Unit

Load sensing dynamic non-reaction steering units 50 ml/r - 1000 ml/r 16 Mpa​







Hydraulic steering control unit(SCU) is widely used both in the
steering system of vehicles and the marine rudder. The operator
can obtain bigger steering control force with less steering force,
and its function is more safety and reliable, its operation is more
smooth and flexible.

Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa 0

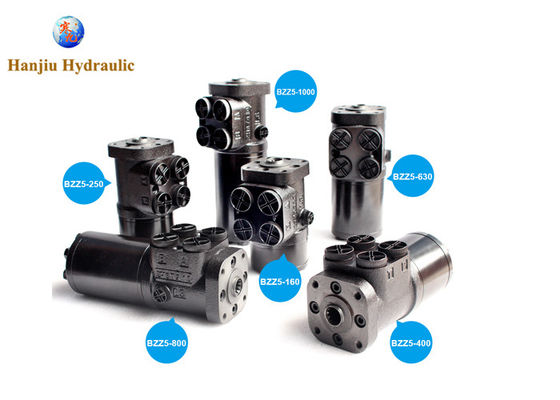

BZZ5 Series Hydraulic Steering Control Units (SCU)
As for load sensing steering system, the steering system and the
operational system may use the same pump through the priority
valve or the load sensing system can distribute the surplus oil of
the steering system into the operational system. Meanwhile, if the
pump with load sensing is used , the load sensing will have obviously
productive results.


Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa 1




Type Displacement
(mL/r)
Length
L(mm)
BZZ5–E 50* 50 140
BZZ5–E 63* 63 141
BZZ5–E 80* 80 142.5
BZZ5–E 100* 100 145
BZZ5–E 125* 125 148
BZZ5–E 160* 160 153
BZZ5–E 200* 200 158
BZZ5–E 250* 250 164
BZZ5–E 280* 280 169
BZZ5–E 315* 315 174
BZZ5–E 400* 400 184
BZZ5–E 500* 500 197
BZZ5–E 630* 630 216
BZZ5–E 800* 800 236
BZZ5–E 1000* 1000 262






Specifications:



Parameters Series: BZZ similar to OSPB
Function code 1,2,4,5 1,4,5
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400
Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 32 40
Max.input pressure(Mpa) 16
Max.cont.back pressure 2.5
Weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5







Load sensing
In load sensing steering systems both the steering system and the working hydraulics can be supplied
with oil from the same pump, using a load sensing pump, also delivers the potential for energy saving.
Load sensing steering units have an extra connection for load sensing (LS), so that a load pressure signal
can be directed via the steering unit to a Danfoss priority valve and/or an LS pump. The load sensing
signal controls the oil flow from the priority valve (and/or the LS pump) to the steering unit. The LS
connection is open to tank when the steering unit is in the neutral position.

The LS port of the load sensing steering unit has to connect with
priority valve or LS port of load sensing pump, so that the signal of
the steering load pressure of the steering unit can be transferred to
priority valve or load sensing pump through oil hose ( we suggest that
the length of the hose is ≤2 m), to control the oil volume supplied to
steering unit by the control system.



Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa 2





Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa 3









More founctions are available:







Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa 4



Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa 5



Load Sensing Dynamic Non Reaction Hydraulic Steering Unit 50 Ml/R - 1000 Ml/R 16 Mpa 6
