| Type: | Hydraulic Control Valve | Model No.: | HSV9 Series |
|---|---|---|---|
| DC: | 24 V | Flow: | 90 Lpm |
| Oil Port: | G3/4 | Rated Pressure: | 25mpa |
| High Light: | SVV90,90lpm hydraulic control valve solenoid,G3/4 hydraulic control valve solenoid |
||

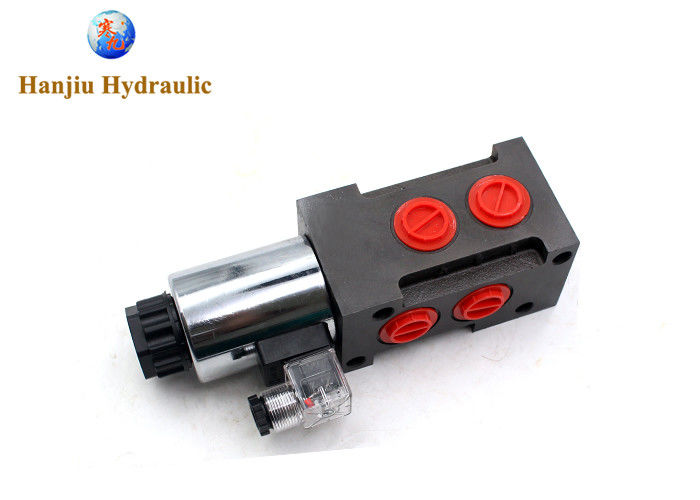

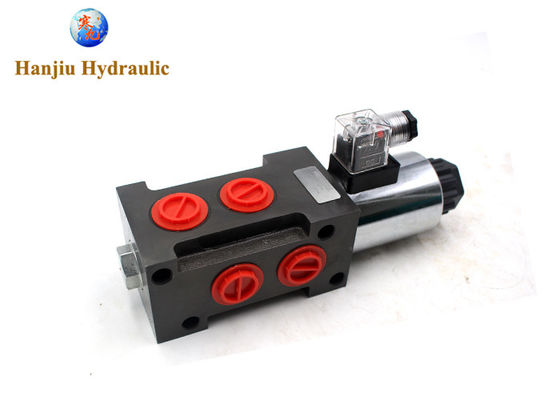

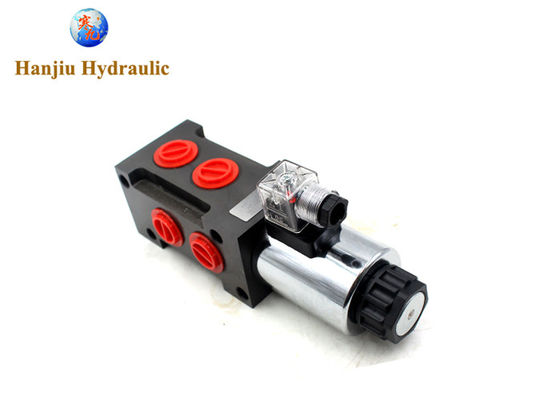

SVV90 hydraulic control valve Solenoid 24V 90 Liters G3/4 1 lever, replace
Ordering code
HSV6---X---X---X---X
1 2 3 4 5
1.series code
2.Model type: A/B/C
3.Number of sections:1-3( Model A,B available for stack)
4.Ports size
| Code | Port Thread size |
| P1 | G1/2 |
| P2 | G3/4 |
| P3 | 7/8-14UNF |
5.Solenoid type
Model type
Specifications:
| parameter | value |
| Number of Work Sections | from 1 to 3 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 90 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | 100% |
6 ways, 2 positions (6/2) solenoid operated valves. They are used for selective connection of different cylinders/hydraulic motors in the application. When valve is de-energised, oil directs from D & C ports to first actuator. When valve coil is energised, oil directs from A & B ports to second actuator
Through the ports P1 and P2, the solinoid valve DVS6-6 / 2L diverter is connected to one of the working sections of the regular directional control valves
To ports C D - connect consumer 1
To ports A1 B1 - connect consumer
