| Type: | Sweeper Hydraulic Motor | Speed: | 220rpm-270rpm |
|---|---|---|---|
| Displacement: | 300cc | Torque: | 905N.M-1035N.M |
| Output: | 17.5kw-20.0kw | Pressure: | 24mpa-27.6mpa |
| High Light: | 300cc Parker Hydraulic Wheel Motor,24mpa Parker Hydraulic Wheel Motor,TF0280US080AAAA |
||

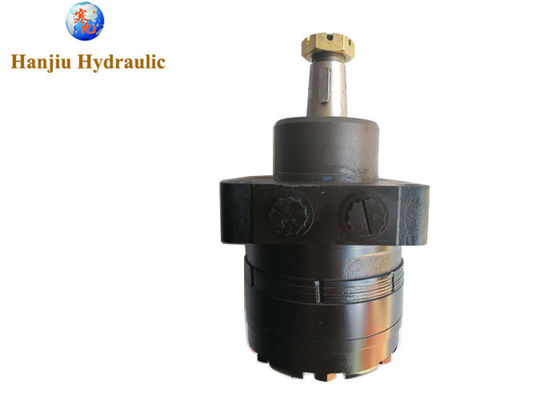

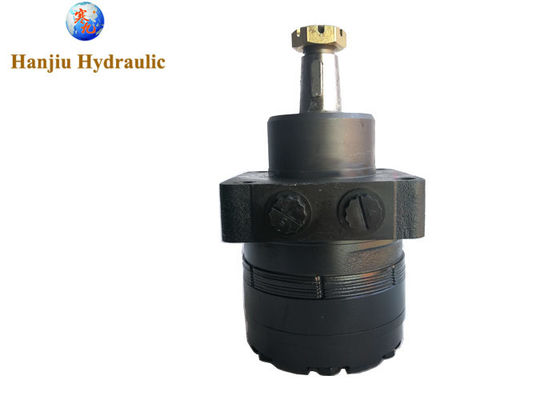

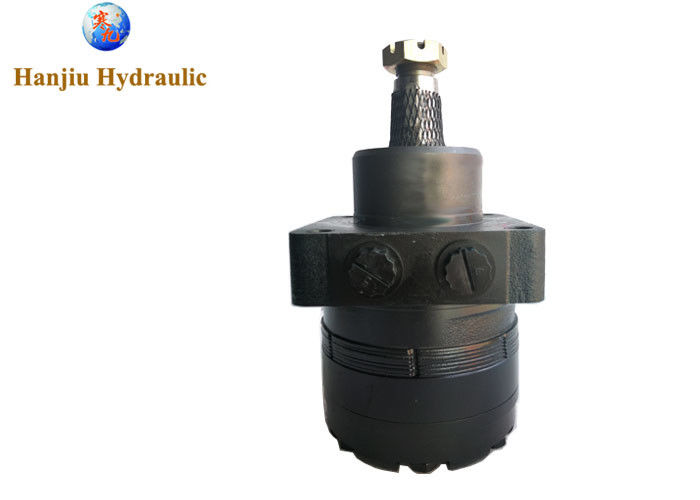

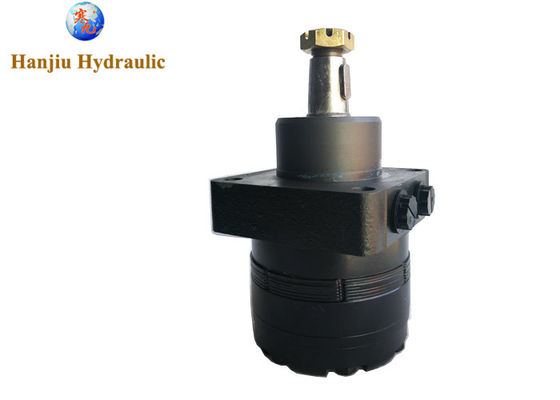

Street sweeper Hydraulic Motor TF0280US080AAAA PARKER Wheel motor tapper cone shaft
This type of hydraulic motors are widely used on sweeper machines, sweeper brush
for brand ELGIN/TYMCO/SCHWARZE/Paladina/Kersten
| Parker TF0280US080AAAA | BMER-300 |
| Parker TF0280AS080AAAA | BMER-300 |
| Parker TF0280MS080AAAA | BMER-300 |
| Parker TF0195US080AAAA | BMER-200 |
Hanjiu High Torque BMER Replaces American Parker Conical Cycloidal Hydraulic Oil Motor
BMER series motor adapt the advanced Geroler gear set designed with high speed distribution flow and high pressure, and have good stability in low speed , and can keep high volume efficiency. The unit can be supplied the individual variant in operating multifunction in accordance with requirement of applications.
Main Specifications:
| Type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
|
|
Geometric displacement (cm3 /rev.) |
118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
| 1, | model number | BMER-2-300 |
| 2, | displacement196 | ml/r |
| 3, | flange | wheel Mount |
| 4, | shaft | 1.25'' (31.75) mm splined key |
| 5, | oil port | G1/2 |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Parker TE TG TF |
Applications:
HANJIU Motor Orbital type is one type of high torque low speed hydraulic motors, with high efficiency and long life. Which can be widely used for kinds of Rollers, Heavey Machines, Construction Machines etc. To know more details, like technical data or drawing, pls directly contact us or to download from our main website.
