Product Details:
Payment & Shipping Terms:
|
| Model No.: | SD5-10D-DC12V | DC Optional: | 12V,24V |
|---|---|---|---|
| Flow: | 45L/MIN | Oil Port: | G1/2,G3/8,7/8-14UNF |
| High Light: | 13gpm monoblock directional control valve,12v monoblock directional control valve,Hydraulic Monoblock Solenoid Control Valve |
||

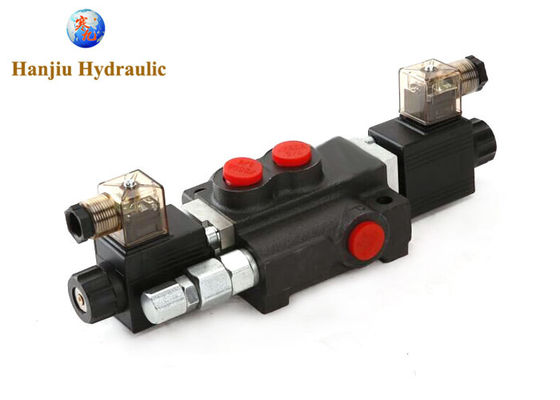

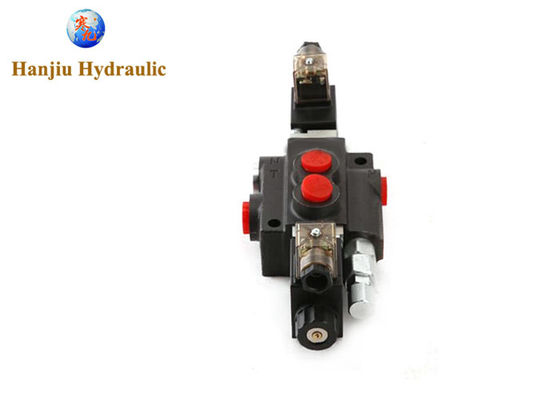

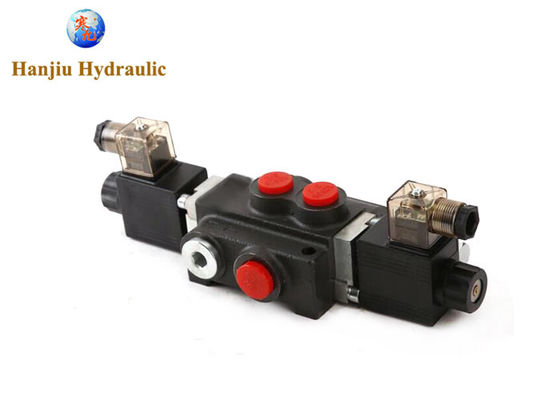

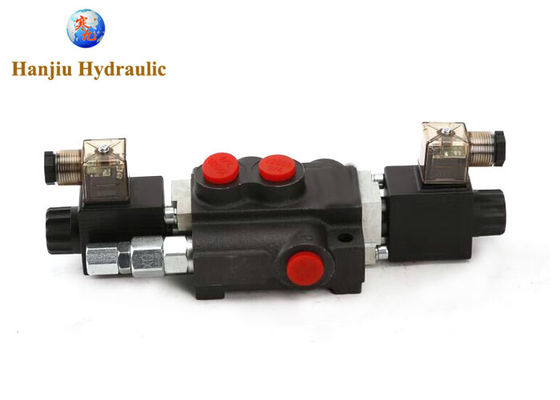

Hydraulic Monoblock Solenoid Control Valve 1 Spool 13 GPM 12V DC for tractor loader
Hydraulic Monoblock Valves are a style of Hydraulic Control valve. These valves are used to start and stop fluid flow into hydraulic cylinders or hydraulic motors. The number of cylinders or motors that a control valve can operate depends on the number of spools on the valve. The flow rates listed is the maximum allowed GPM (Gallons Per Minute) that can be put through a valve. A common example of a hydraulic control valve is the loader valve on a tractor. These valves have power beyond Capability (Power Beyond Adapter Sleeve is required SKU: P40-PB), as well as the ability to operate as a closed-center valve (Closed-Center Plug Required SKU: P40-CC).
Benefits:
Features:
Specifications:
| parameter | value |
| Number of Work Sections | from 1 to 3 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 50 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | one hundred% |
Port threads
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
Hanjiu: a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
Hanjiu hydraulic is always put clients rights at first,we hope both of us will earn more during our cooperation.
Choose hanjiu ,your business partner forever!
