| Type: | Hydraulic Orbital Torque Motor | Speed: | 100rpm-120rpm |
|---|---|---|---|
| Warranty: | 12-18 Months | Torque: | 1050N.M-1180N.M |
| Output: | 8.0kw-10.0kw | Pressure: | 10.5mpa-12mpa |
| High Light: | danfoss orbital motors,100rpm orbit hydraulic motor,8.0kw orbit hydraulic motor |
||

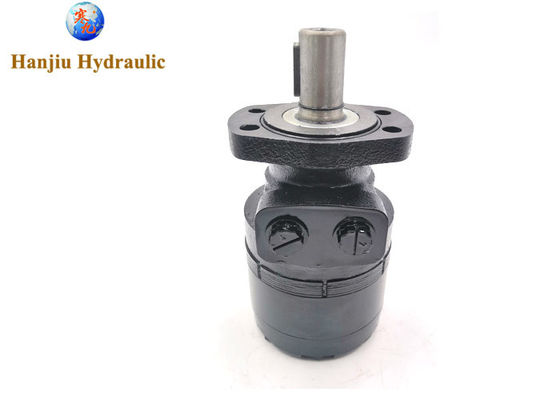

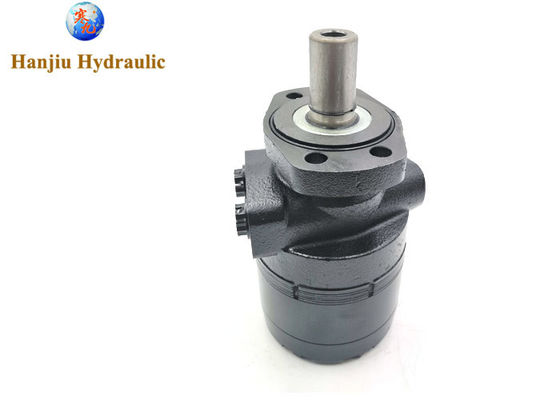

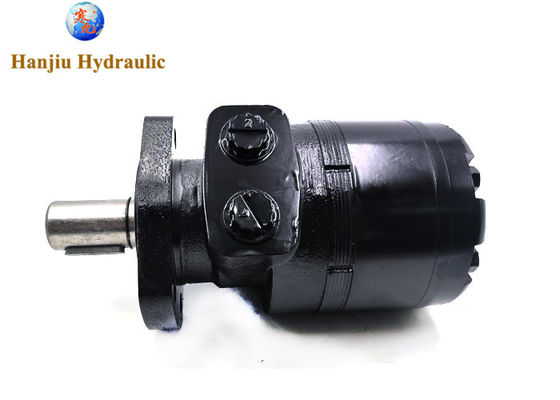

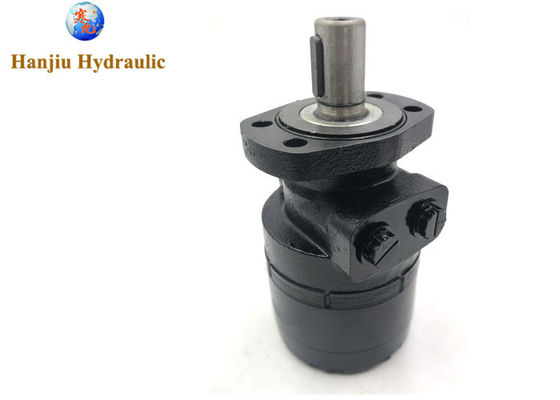

New Danfoss Roller Stator 505540A3120AAAAAB Series White Drive Gerotor Orbital Hydraulic Motor
HANJIU BMER Series motors offer the perfect compromise between price and performance by producing work horse power at
a reasonable cost. Although these motors perform well in a wide range of applications, they are especially suited for low flow,
high pressure applications. During startup,pressure causes the balance plate to flex toward the rotor,vastly improving volumetric efficiency.
As the motor reaches operating pressure, the balance plate relaxes, allowing the rotor to turn freely which translates into higher mechanical
efficiencies. Transmitting this power to the output shaft is the most durable drive link in its class. Four bearing options, combined with standard mounting flanges and output shafts, allow the motor to be configured to suit nearly any application.
Product details:
| 1, | model number | BMER-2 |
| 2, | displacement | 540ml/r |
| 3, | flange | magneto Mount |
| 4, | shaft | 1 1/4' (31.75) mm straight shaft |
| 5, | oil port | 7/8-14 o-ring |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | white RE |
Main Specifications:
| Type |
BMER 125 |
BMER 160 |
BMER 200 |
BMER 230 |
BMER 250 |
BMER 300 |
BMER 350 |
BMER 375 |
BMER 475 |
BMER 540 |
BMER 750 |
|
|
Geometric displacement (cm3 /rev.) |
118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N*m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 | |
FEATURES / BENEFITS
Application
Medium-duty wheel drives, augers, mixers, winch drives,swing drives, grapple heads, feed rollers, broom drives and more
HANJIU Motor Orbital type is one type of high torque low speed hydraulic motors, with high efficiency and long life. Which can be widely used for kinds of Rollers, Heavey Machines, Construction Machines etc. To know more details, like technical data or drawing, pls directly contact us or to download from our main website.
