Product Details:
Payment & Shipping Terms:
|
| Type: | Hydraulic Lifting Motor | Model No.: | BMK10-665 |
|---|---|---|---|
| Max.torque(N.m): | Cont.710N.m/int.1080N.m | Max.speed(rpm): | Cont.610rpm/int.830rpm |
| Max Pressure Drop: | Cont.20Mpa/int.30Mpa | Max Flow: | Cont.150l/min/int.170l/min |
| High Light: | 40.6cu Orbit Hydraulic Motor,8 inch Orbit Hydraulic Motor,8 inch Hydraulic Orbit Motor |
||

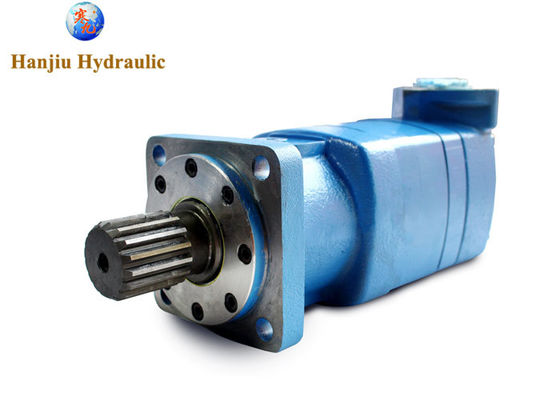

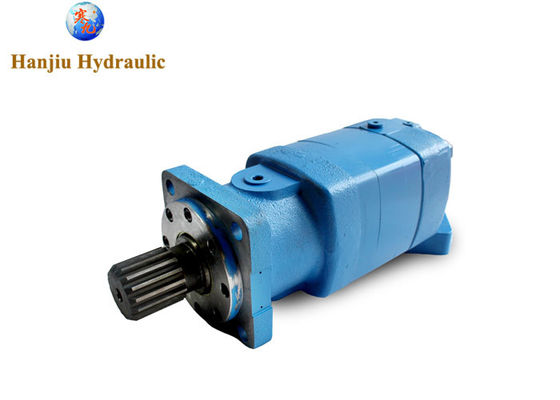

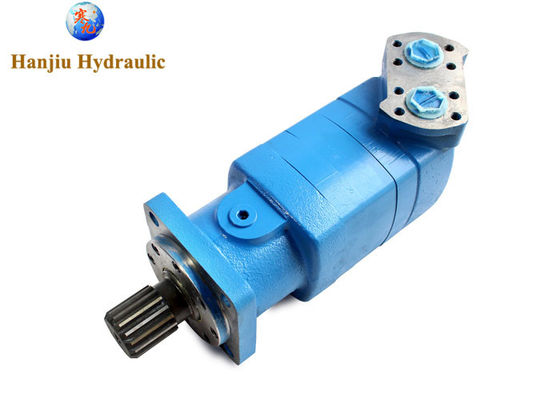

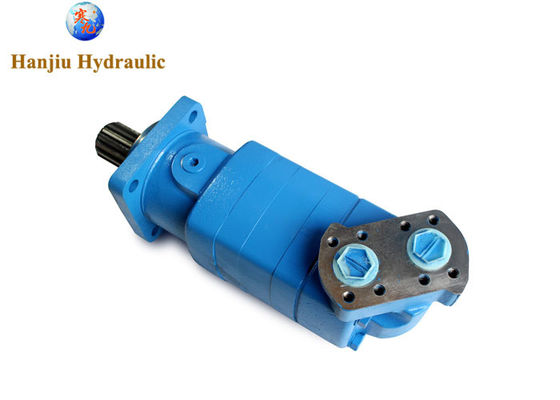

Heavy Duty Orbital Motor 10000 Series 119-1034-003 2 1 / 8 Inch 16 T Splined 40.6cu.
Hanjiu BMK10 = EATON CHAR-LYNN 10000 = EATON CHAR-LYNN 10K
Model number: BMK10-665
Replace Char-lynn motor 10000 Series
Displacement: 665cc
Flange: 4bolts Square flange
Pilot: 127x12.5mm
Mounting distance: 161.9mm
Paint: Blue
Features
• High torque and flow
• Many options like 2 speed and speed sensors make this motor “smart”
• Low pressure loss even in higher flows
Benefits
• High power density for demanding mobile and industrial applications
• Many options to draw from
Main Specification
| Type | BMK10 | BMK10 | BMK10 | BMK10 | ||
| 345 | 480 | 665 | 940 | |||
| Geometric displacement | 345 | 480 | 665 | 940 | ||
| (cm3 /rev.) | ||||||
| Main speed(rpm) | cont. | 501 | 354 | 254 | 179 | |
| int. | 784 | 552 | 396 | 279 | ||
| Max torque N.M | cont. | 1040 | 1475 | 2085 | 2700 | |
| int. | 1390 | 1965 | 2610 | 3440 | ||
| Max pressure drop (Mpa) | cont. | 20 | 20 | 20 | 20 | |
| int. | 27.5 | 27.5 | 27.5 | 27.5 | ||
| Weight (kg) | 26.3 | 26.8 | 27.3 | 28 | ||
Related code
112-1011
112-1025
112-1026
112-1058
112-1060-006
112-1062
112-1063
112-1064
112-1065
112-1066
112-1067-006
112-1068
112-1069
112-1076
112-1080
112-1088
112-1089
112-1091
112-1093
112-1094
112-1096
112-1097
112-1098
112-1099
112-1104-006
112-1107-006
112-1108-006
112-1111-006
112-1116
112-1128
112-1131
112-1206
112-1138
112-1145
112-1150
112-1166
112-1182
112-1193-006
112-1206
112-1207
112-1209
112-1213
112-1215
112-1216
112-1217
112-1218
112-1219-006
112-1227
112-1229
112-1254-006
112-1290-006
112-1307
112-1309-006
112-1320-006
112-1322
112-1350
112-1359
112-1360
112-1375-006
112-1446-006
113-1071-006
113-1074-006
113-1095-006
113-1101-006
113-1108-006
113-1121-006
113-1133-006
113-1140-006
113-1143-006
114-1020-005
114-1034-006
114-1046-006
114-1065-005
114-1079-006
114-1080-006
114-1082-006
114-1084-006
114-1086-006
114-1028-006
119-1028-003
119-1029-003
119-1030-003
119-1031-003
119-1039-003
119-1040-003
119-1041-003
119-1043-003
119-1046-003
119-1095-003
119-2003-003
119-2004-001
119-2015-001
119-2016-001
119-2022-001
119-2023-001
119-2024-001
119-2035-001
Please do not hesitate to contact us for further information, inquiries or orders.
Thank you for choosing 'Hanjiu' Hydraulics.
