Product Details:
Payment & Shipping Terms:
|
| Model No.: | BMPH/charlynn H | Displacement: | 200cc |
|---|---|---|---|
| Speed: | 310/385rpm | Torque: | 360/440Nm |
| Max Power: | 10/12KW | Max Flow: | 60/75l/min |
| Certificate: | CE/ISO Certificate | Shaft: | 1inch Straight Key |
| High Light: | corn Harvester head motor,200cc Low Speed High Torque Motor,10kw Low Speed High Torque Motor |
||

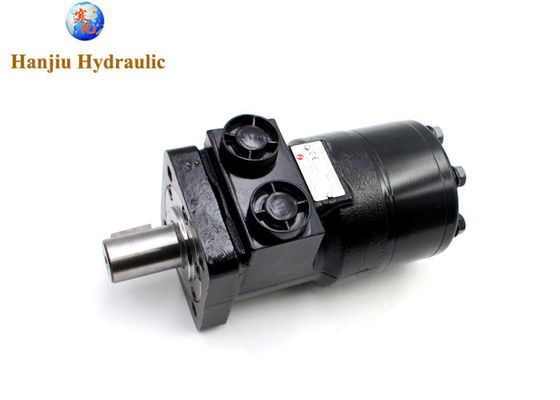

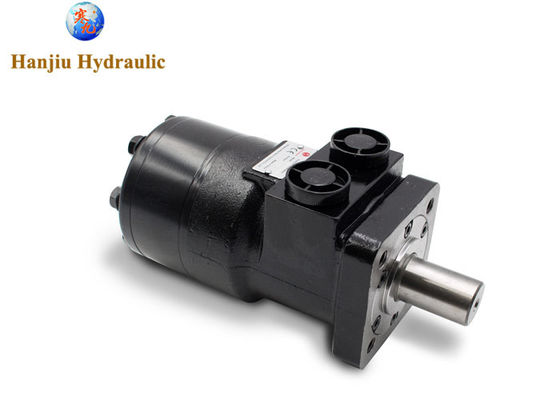

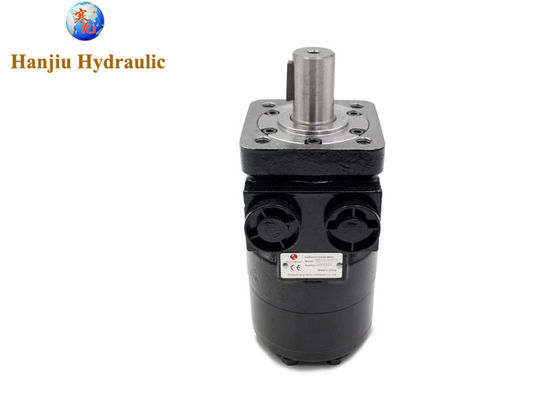

Corn Harvester Head Parts Low Speed High Torque Motor 4 Bolt Eaton Alternative 101-1012-009
Hanjiu brand type BMPH-200 used on John Deere - Corn Head Parts: 493, 494, 606, 608, 612, 616, 618, 693, 694, 893, 894, 1293
HANJIU hydraulic supply the most completely range of hydraulic motors for different harvester equipments
such as:
|
grape harvesters
|
|
blueberry harvester
|
|
sugar cane harvester
|
|
|
|
|
|
Self-Propelled Berry Harvester
|
|
Walnut harvester
|
|
Potato harvester
|
how to choose a suitable hydraulic motor:
(1) The main basis for selecting a hydraulic motor is the host's requirements for the hydraulic system,
such as torque, speed, working pressure, displacement, shape and connection size, volumetric efficiency,
total efficiency, quality, price, supply, and convenience for use and maintenance Sex and so on.
(2) There are many types of hydraulic motors. The characteristics are different, according to the specific
application and working conditions, refer to the table below to select the appropriate hydraulic motor.
Low-speed motor can be selected for low-speed operation, or high-speed motor acceleration and deceleration
device can be used. In the choice of two programs. The selection should be made according to the structure and
space conditions, equipment cost, and whether the driving torque is reasonable.
If you cannot confirm which hydraulic motors are fit for your equipment,
just contact us, we have experienced engineer to help sovling your problems
