| Item: | Vane Pump | Series: | VQ |
|---|---|---|---|
| Displacement: | Single | Feature: | Less Noise |
| Minimum Speed: | 600rpm | Maximum Speed: | 2700/2400 Rpm |
| High Light: | 4535vq Vane Pumps,3520vq Vane Pumps,2520vq Vane Pumps |
||
Vane Pumps, Replacement Cartridge, 20VQ, 25VQ, 35VQ, 45VQ, 2520VQ, 3520VQ, 4525VQ, 4535VQ

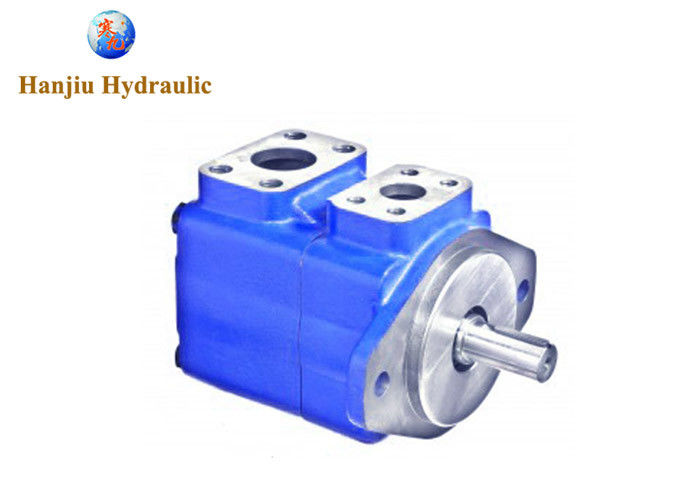

VANE PUMP DESCRIPTION
- Single displacement vane pump.
- Volumetric efficiency over 90%. And less noise than a gear pump.
- Minimum speed: 600rpm.
- Maximum speed: 2700/2400 rpm (depending on the type of fluid)
- Connections: flange SAE 4 bolts.
FEATURES
- Operating temperature: -12 to 90 ° C.
- Cylindrical shaft with standard key.
- Minimum speed: 600rpm.
- Maximum speed: 2700/2400 rpm (depending on the type of fluid)
- Connections: flange SAE 4 bolts.
| Discription | |||
| Model | Displacement | Port, NPT | |
| Inlet | Outlet | ||
| 20VQ-8A-1D30 | 27,4 | 1 1/2” | 3/4” |
| 20VQ-11A-1D30 | 36,4 | 1 1/2” | 3/4” |
| 25VQ-14A-1D20 | 45,4 | 1 1/2” | 1” |
| 25VQ-17A-1D20 | 55,2 | 1 1/2” | 1” |
| 25VQ-21A-1D20 | 67,5 | 1 1/2” | 1” |
| 35VQ-25A-1D20 | 81,6 | 2” | 1 1/4” |
| 35VQ-35A-1D20 | 112,8 | 2” | 1 1/4” |
| 35VQ-38A-1D20 | 121,6 | 2” | 1 1/4” |
| 45VQ42 86A20 | 138,7 | 3” | 1 1/2” |
| 45VQ60A 86A20 | 193,4 | 3” | 1 1/2” |
| Model | Displacement | Port, NPT | |
| Inlet | Outlet | ||
| 2520VQ-21A5-1DD20 | 67,5 | 2 1/2” | 1” – 3/4” |
| 2520VQ-17A5-1DD20 | 55,2 | 2 1/2” | 1” – 3/4” |
| 3520VQ-25A5-1DD20 | 81,6 | 3 1/2” | 3/4” – 1 1/4” |
| 3520VQ-35A8-1DD20 | 112,8 | 3 1/2” | 3/4” – 1 1/4” |
| 4535VQ-60A38-1AA20 | 193,4 | 4” | 1 1/2” – 1” |
| 4525VQ60A21 1CC-20 | 193,4 | 4” | 1 1/2” – 1” |
| 3520VQ30A5-1CC-20 | 97,7 | 3 1/2” | 3/4” – 1/4” |
| 4520VQ50A12-1CC-20 | 162,3 | 3 1/2” | 1 1/2” |
| 3525VQ30A12-11DC-20 | 97,7 | 3” | 1 1/4” |
| 4525VQ60A17-1DD-20 | 193,4 | 4” | 1 1/2” – 1” |
| 2520VQ-21A8-1DD20 | 67,7 | 2 1/2” | 1” – 3/4” |

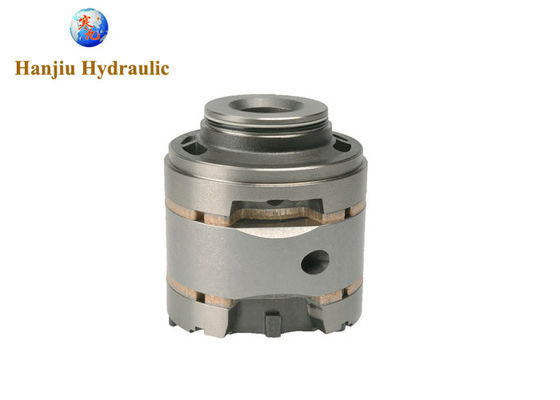

REPLACEMENT CARTRIGE:
| Discription | ||
| Model | Displacement | Flow |
| cm3./rev. | ||
| 20VQ-5 | 18,0 | 27 (7,13) |
| 20VQ-6 | 21,6 | 32,4 (8,50) |
| 20VQ-8 | 27,4 | 41,1 (10,80) |
| 20VQ-9 | 31,0 | 46,5 (12,20) |
| 20VQ-11 | 36,4 | 54,6 (14,40) |
| 25VQ-12 | 40,2 | 60 (15,85) |
| 25VQ-14 | 45,4 | 68 (17,96) |
| 25VQ-17 | 53,8 | 80 (21,20) |
| 25VQ-21 | 67,5 | 101 (26,68) |
| 35VQ–21 | 67,5 | 101 (26,68) |
| 35VQ-25 | 81,6 | 168 (44,38) |
| 35VQ-30 | 97,7 | 182 (48,08) |
| 35VQ-35 | 112,8 | 122 (32,23) |
| 35VQ-38 | 121,6 | 146 (38,57) |
| 45VQ-42 | 138,7 | 207 (54,68) |
| 45VQ–47 | 152,5 | 228 (60,00) |
| 45VQ-50 | 162,3 | 243 (64,20) |
| 45VQ-57 | 185,0 | 270 (71,33) |
| 45VQ-60 | 193,0 | 280 (74) |
| Model | Displacement | Flow |
| cm3./rev. | ||
| 20VQ-5 | 18 | 27 (7,13) |
| 20VQ-8 | 27,4 | 41,0 – (10) |
| 20VQ-9 | 30,8 | 46,0 – (12) |
| 20VQ–11 | 36,4 | 54,0 – (14) |
| 20VQ-12 | 39,7 | 60,0 – (16) |
| 20VQ-14 | 45,4 | 67,0 – (18) |
| 25VQ-12 | 39,5 | 60,0 – (16) |
| 25VQ-17 | 55,2 | 82,5 – (22) |
| 25VQ-19 | 65,0 | 97,5 – (26) |
| 25VQ-21 | 67,5 | 101,0 – (27) |
| 35VQ–21 | 67,5 | 101,0 – (27) |
| 35VQ-25 | 81,6 | 121,5 – (32) |
| 35VQ-30 | 97,7 | 145,5 – (39) |
| 35VQ-35 | 112,8 | 168,0 – (44) |
| 35VQ-38 | 121,6 | 181,5 – (48) |
A compact, highly efficient hydraulic pump is a key component of a hydraulic drive system. Hanjiu offers a wide variety of hydraulic pumps, vane pumps with unique performance characteristics which are designed for superior, efficient system performance.
Contact us today to discuss your questions or application needs with our team.
