Product Details:
Payment & Shipping Terms:
|
| Item: | Directional Monoblock Valves | Model: | 45 LPM And 80 LPM |
|---|---|---|---|
| Apply To: | Mobile And Stationary Equipment | Spool: | 1, 2, 3, 4, 5, 6, 7 |
| Function: | Spring Return, Detent, Remote, Joystick | Circuit: | Parallel |
| High Light: | 80lpm monoblock directional control valve,45lpm monoblock directional control valve,1Spool directional monoblock valve |
||

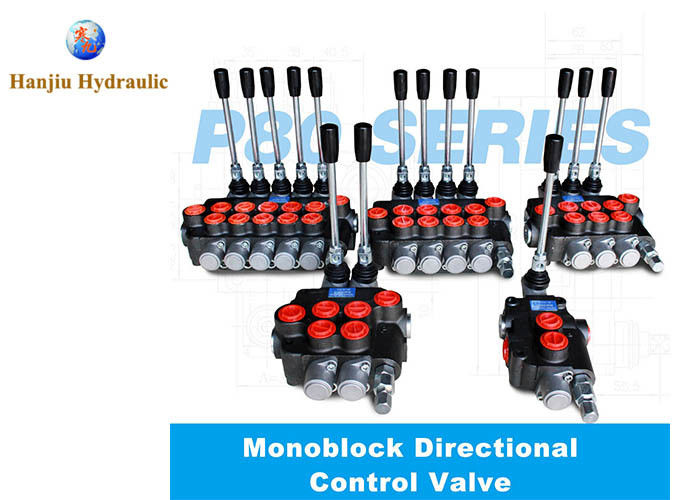

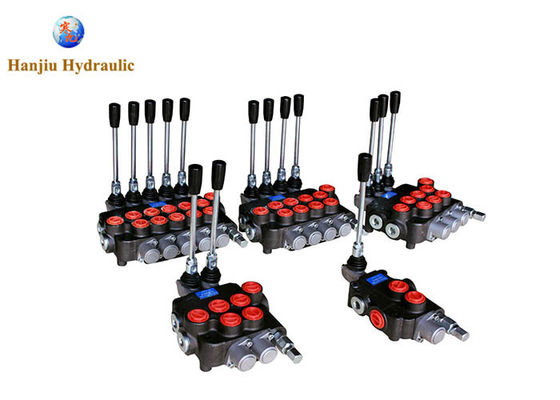

Directional Monoblock Valves, 45 LPM and 80 LPM, for Mobile and stationary equipment to drive motors and cylinders
Directional Monoblock Valves
TECHNICAL CHARACTERISTICS
Monoblock manually operated valves.
P40 Flow: 45 LPM - P80 Flow: 80 LPM.
APPLICATIONS
Mobile and stationary equipment to drive motors and oil-hydraulic cylinders.
TECHNICAL CHARACTERISTICS
Mono block from 1 to 5 levers
Parallel circuit, with backstop at P
Nominal flow from 45 l / min to 400 l / min.
Working pressure 315 bar or 4600PSI
Built-in adjustable pressure relief valve for protection.
Connections: 3/8 ”GAS A, B; P 1/2” GAS T
| Descripcion | ||
| Model | Flow | Spool |
| P-40 | 45 l/min | 1 |
| P-40 | 45 l/min | 2 |
| P-40 | 45 l/min | 3 |
| P-40 | 45 l/min | 4 |
| P-40 | 45 l/min | 5 |
| P-80 | 80 l/min | 1 |
| P-80 | 80 l/min | 2 |
| P-80 | 80 l/min | 3 |
| P-80 | 80 l/min | 4 |
| SD-14 | 120 l/min | 1 |
| SD-18 | 160 l/min | 1 |
| SD-18 | 160 l/min | 2 |
| SD-18 | 160 l/min | 3 |

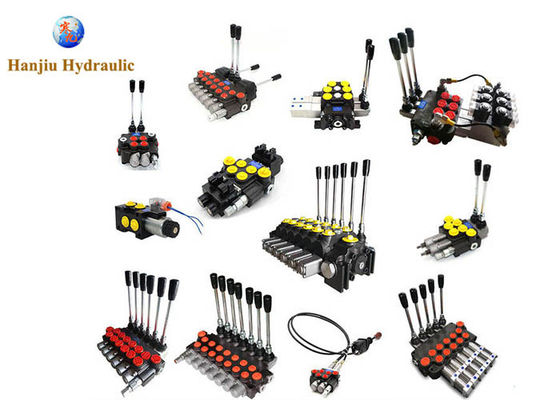

Sectional also available
