| Item: | Compensated Flow Regulator | Flow GPM: | 0-8 Gpm, 0-16 Gpm, 0-30 Gpm |
|---|---|---|---|
| Maximum Pressure: | 3000 Psi. | Min Pressure: | 750 Psi. |
| Material: | Cast Iron | Position: | 5 |
| High Light: | 3000psi compensated flow regulator,30gpm compensated flow regulator,5 position compensated flow regulator |
||

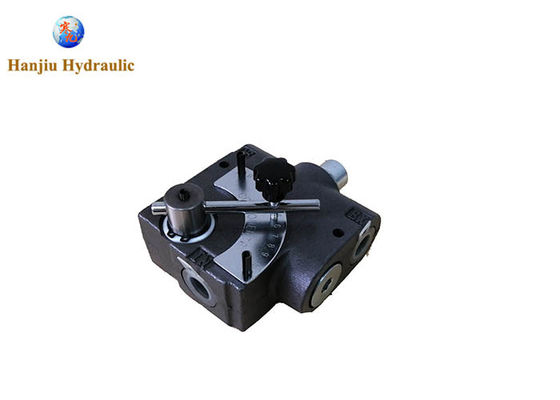

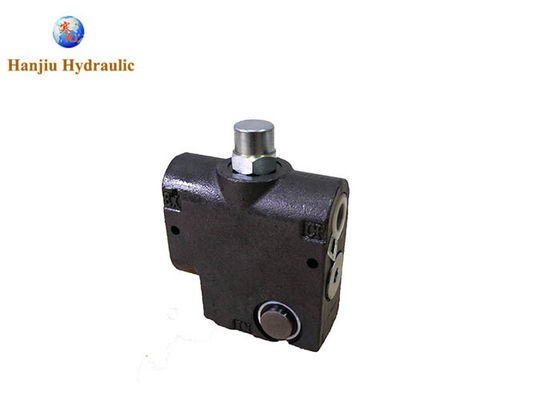

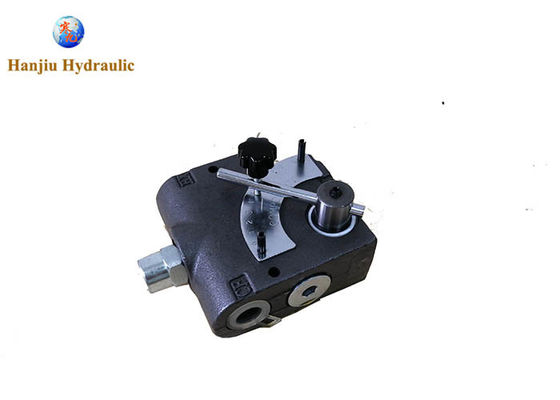

Compensated Flow Regulator, 0-8 gpm, 0-16 gpm, 0-30 gpm, 3000 Psi
Compensated Flow Regulator
DESCRIPTION
Controls excess flow through a bypass keeping the flow constant.
Avoid load losses and unnecessary energy consumption.
Excess flow can be returned to tank or used in power line.
FEATURES
Regulation in 5 positions by lever.
Maximum Pressure: 3000 Psi.
Cast Iron Body.
LKF model is a full range pressure compensating variable flow control. It is designed so that the orlfice
area varles as the lever is rotated. The outlet flow is smooth and constant regardless of the pressure on the
control flow or excess flow ports. An adjustable ball spring relef valve allows for pressure compensated how
up to the pressure setting on the relief valve. Relief valves are preset at 1500psi and fled adjusiable from 750
to 3000psl.
| Discription | ||
| Pressure Compensated | ||
| Model | Port NPT | FlowGPM |
| LKF-60-1/2NPT | 1/2” | 0 - 16 |
| LKF-114- -34NPT | 3/4” | 0 - 30 |
Directional Control Valves Monoblock and Sectional also available
