Product Details:
Payment & Shipping Terms:
|
| Item: | Directional Monoblock Valves | Model: | SD-18 |
|---|---|---|---|
| Apply To: | Mobile And Stationary Equipment | Spool: | 1, 2, 3, 4, 5, 6, 7 |
| Function: | Spring Return, Detent, Remote, Joystick | Circuit: | Parallel |
| High Light: | 160lpm sectional control valve,CE sectional control valve,160lpm sectional valve |
||

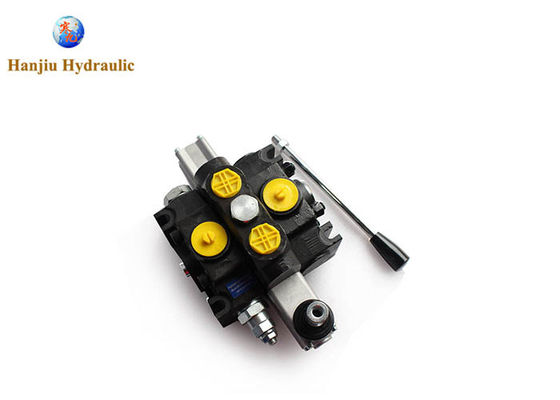

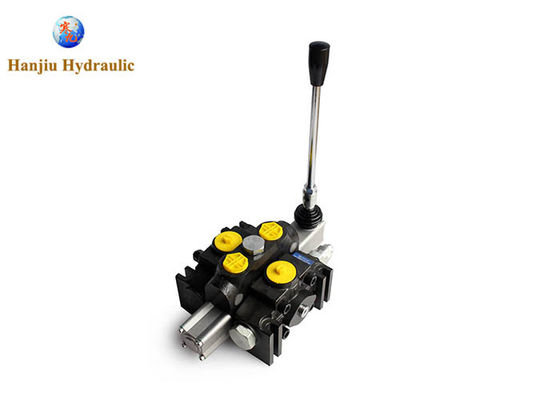

SD-18 160 LPM Sectional Directional Control Valves to drive motors and cylinders
SECTIONAL CONTROL VALVE
Offers multi-function control valve method to solve hydraulic circuit system requirement. The compact construction design is one of strong features for sectional directional control valves include other features, such as low pressure drop, high efficiency.
Operation methods including manual control, hydraulic control, electro-hydraulic and pneumatic control. We provide good quality and high accuracy sectional directional control valve for all customers' requirements.
TECHNICAL CHARACTERISTICS
Sectional manually operated valves.
20 lpm - 200 lpm
1 lever to 12 levers
Working pressure 315 bar or 4600PSI
Built-in adjustable pressure relief valve for protection.
APPLICATIONS
Mobile and stationary equipment to drive motors and oil-hydraulic cylinders.
| AMBIENT TEMPERATURE | -40 … +60 |
| oC | |
| VISCOSITY | 12 … 800 |
| mm2/s | |
| FLUID TEMPERATURE | -15… +80 |
| oC | |
| FILTRATION | 10 to NAS 1638 |
| MAX OPERATING PRESSURE | 315 |
| bar | |
| BACK PRESSURE | 50 |
| bar | |
| NOMINAL FLOW | 70 |
| L/min | |
| LEAKAGE (A,B-T) | 15 cm3/min at 120 bar |
| SPOOL STROKE | +/- 7 mm |
| ACTUATING FORCE | < 200 N |
| N | |
| MODIFICATION/SPOOLS | Up to 12 |
Is used for switching on/off and directing the working fluid between head flow generators,head flow consumers and the tank.It is a sectional directional control valve with manual control.They can be integrated in packages of up to 12 sections.
Monoblock Valves also available:
