Product Details:
Payment & Shipping Terms:
|
| Item: | LSHT Motors | Model: | BMRS |
|---|---|---|---|
| Fastening: | 103-1014-012 | Port: | .875-14 UNF-2B |
| Shaft: | 25.4 DIA. STRAIGHT | Flange: | 44.40 DIA. |
| High Light: | eaton char lynn motor,103-1014-012 eaton char lynn motor,engine eaton char lynn motor |
||
Eaton 103-1014-012 ENGINE CHARLYNN S 14 FLANGE OVAL 2 BOLT SHAFT 1 CHAV 00404353
Quick view:
| Feature | Code | Description |
|---|---|---|
| PRODUCT | M | MOTOR |
| SERIES | S0 | S SERIES MOTOR |
| DISPLACEMENT | 137 | 224 CM3/R [13.7 IN3/R] |
| MOUNTING TYPE | BA | 4 BOLT STD - 44.40 [1.748] DIA. X 3.05 [.120] PILOT, .375-16 UNC-2B MOUNTING HOLES ON 82.55 [3.250] DIA. B.C. (No Pilot with Extreme Duty Seal) |
| OUTPUT SHAFT | 01 | 25.4 [1.00] DIA. STRAIGHT, WOODRUFF KEY, .250-20 UNC-2B HOLE IN SHAFT END |
| PORT TYPE | AA | .875-14 UNF-2B SAE O-RING PORTS |
New Aftermarket Char-Lynn 103-1014-012
Same founting and working performance as Eaton S series, approved by Eaton dealers and Eaton users, recognized by the original equipment manufacturer, and maintain good working performance under extreme conditions, price reasonable, short delivery time, much more profit return to wholesellers.

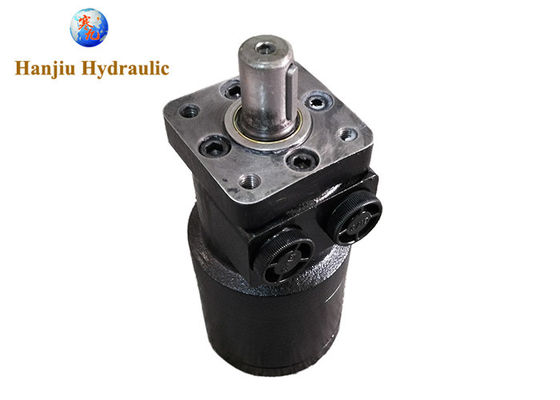

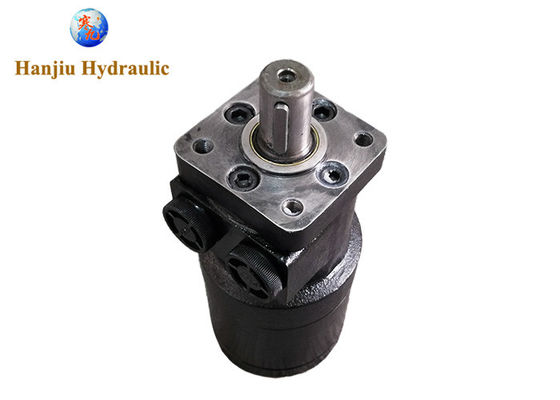

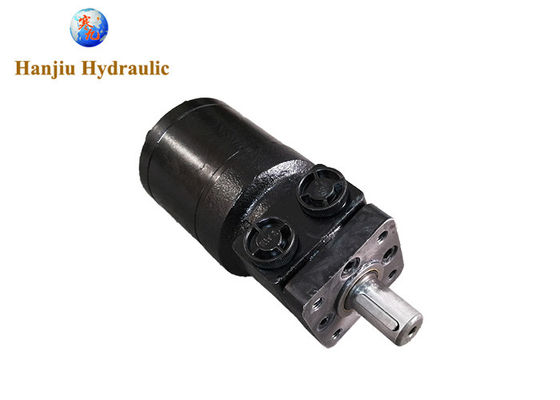

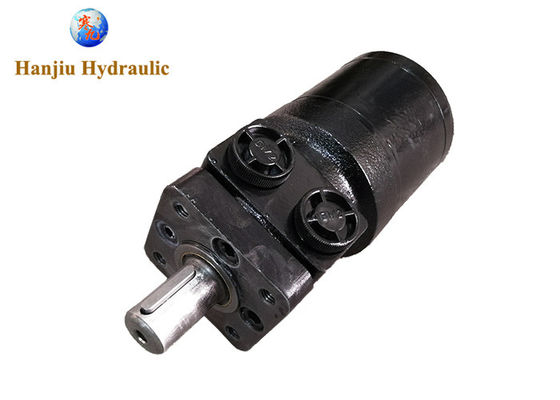

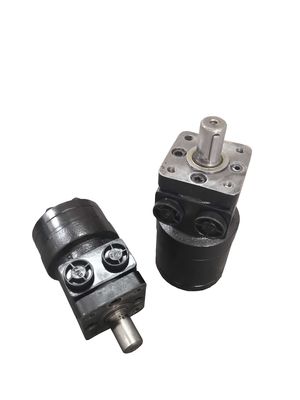

Below is reference photo of aftermarket motor of 103-1014-012, and also more aftermarket notors of Eaton
