665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000

665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000
665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000 665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000 665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000 665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000

Large Image :  665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: 119-1030
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: 350
Packaging Details: Carton, Box, Pallets
Delivery Time: 35 - 45 work days
Payment Terms: L/C, T/T, Western Union, Western Union
Supply Ability: 300000 sets per year
Detailed Product Description
Item: LSHT Motors Model: 119-1030
Displacement: 665.3 CM3/R [40.60 IN3/R] Flange: 127.0 [5.00] PILOT DIA.
Shaft: 57.15 [2.250] DIA. STRAIGHT SHAFT WITH .500-20 UNF-2B THREAD IN END Port: 1.3125-12 UN-2B SAE O-RING STAGGERED PORTS
High Light:

lsht motor charlyn serie 10000

,

ce motor charlyn serie 10000

,

lsht 10000 series char lynn motor



Hydraulic Geroler Disc Valve MotorChar-Lynn (Eaton) 119-1030-003 10000 - Standard, 665.3 cm³/r Geometric Displacement







OVERVIEW
Lowest pressure drop motor in the industry

* This is an Aftermarket CHAR-LYNN 119-1030-003 / EATON 119-1030 MOTOR





NOTE

Delivery time estimates are based on real-time product availability and standard ground shipping.





SPECIFICATIONS
Series 10000 - Standard
Displacement 40.60 in³/r, 665.3 cm³/r
Mounting Type 4-Bolt Flange - 5 in Pilot
Shaft Type Straight
Maximum Operating Temperature 180 °F
Output Shaft Size 2-1/4 in Straight - Straight Key
Overall Height 5.79 in
Overall Length 17.74 in
Overall Width 5.91 in
Seal Type Standard
Operation Mode Continuous Rating - Motor May Be Run Continuously At These Ratings. / Intermittent Operation - 10 Percent Of Every Minute / Peak Operation - 1 Percent Of Every Minute
Drain Connection Size .5625-18 Unf-2b O-ring Port Size -6







PARAMETERS



Displacement   cc/rev 345 480 665 940
Max. Speed* rpm 501 354 254 179
Flow lpm 170 170 170 170
Torque* Nm 1040 1475 2085 2700
Press. ∆bar** bar 205 205 205 190

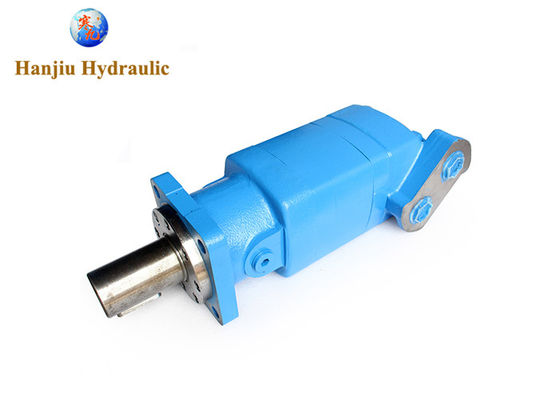

665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000 0

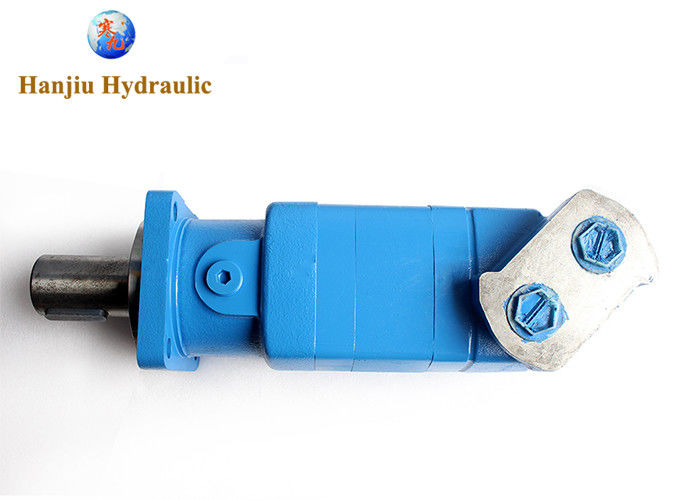

665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000 1

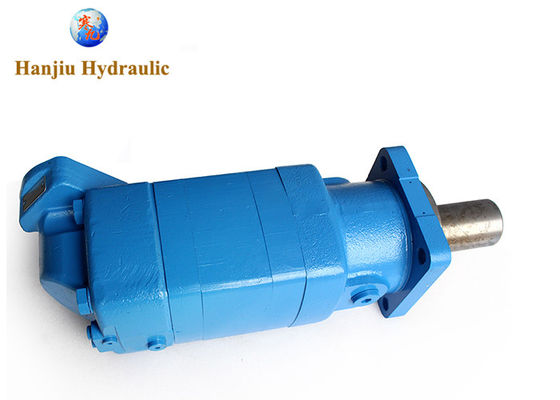

665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000 2













More AFTERMARKET CHAR-LYNN / EATON MOTOR

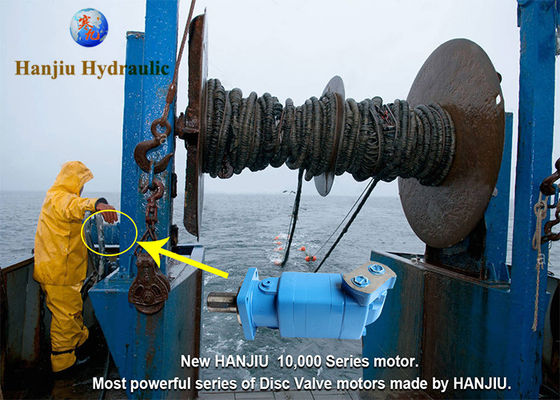

665.3 Cm3/R Geometric Displacement LSHT Motor Charlyn Serie 10000 3
