Product Details:
Payment & Shipping Terms:
|
| Model No.: | DCV60 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6,7,8,9 ... | Flow: | 40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | Manual/cable/pneumatic | Max Pressure: | 350bar |
| High Light: | 16 gpm hydraulic control valves,bsp ports hydraulic control valves,dcv60 hydraulic control valves |
||

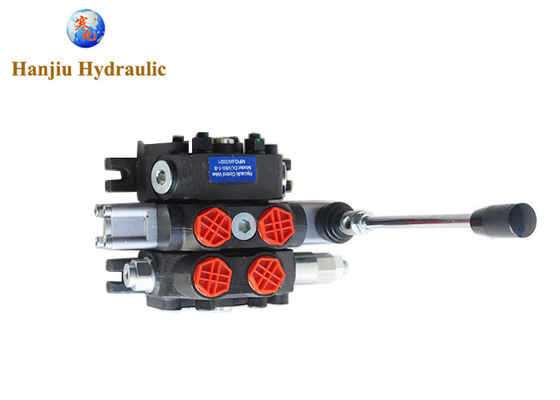

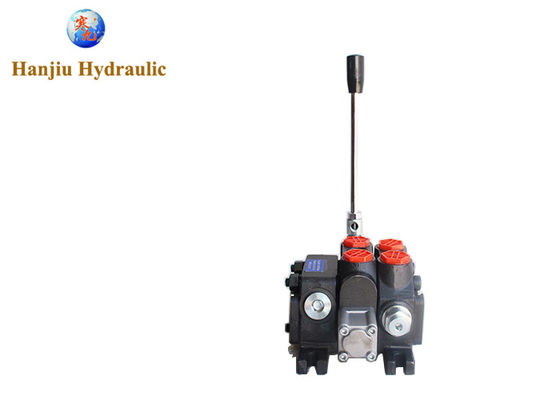

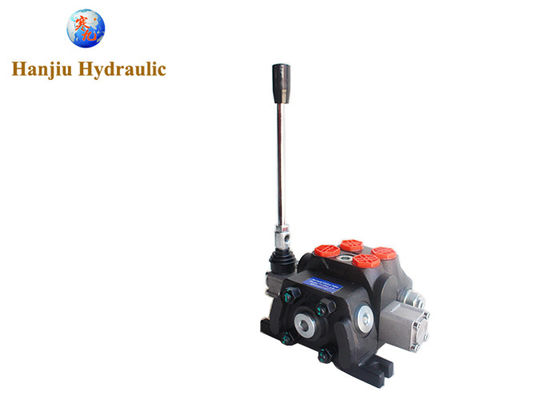

Hydro direction valve 16GPM high pressure valve with 1 bank BSP ports
| Norminal Flow | 60 L/min |
| Max Flow | 16GPM |
| Max Pressure | 315 bar/5076PSI |
| Control Type | manual, pneumatic, hydraulic, electro-hydraulic |
| Allowed back pressure | ≤1 mpa |
| Oil port size | G3/4 |
| Operating range | 15-75MM2/S |
| Viscosity | min 12 MM2/S |
| max 400 MM2/S | |
| Structure | sectional 1-12sections |
Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed centre hydraulic systems.
Fitted with a main pressure relief valve and a load check valve on every working section
Available with parallel or series circuit.
Optional carry--over port.
A wide variety of service ports and circuit valves.
Available manual, pneumatic, hydraulic, electro--hydraulic, and remote with flexible cables spool control kits.
Diameter 20 mm (0.79 in) interchangeable spools.
oil ports
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
RELATED PRODUCTS:
We offer a variety of monoblock and sectional directional control valves for use in agricultural, marine, industrial, construction sectors.
As a rookie in the hydraulic market, HANJIU TECHNOLOGY has quickly won the market in just a few years and has become a popular supplier of hydraulic components at home and abroad. The hydraulic directional control valve produced by HANJIU TECHNOLOGY is widely favored by consumers. Once you have tried HANJIU TECHNOLOGY's hydraulic directional steering valve, you will be conquered by its excellent performance. Who wouldn't love high-quality products with high cost performance?
