Original Aftermarket GENIE T108664 Platforms Parts Drive Motor Brake Motors Hydraulic

Original Aftermarket GENIE T108664 Platforms Parts Drive Motor Brake Motors

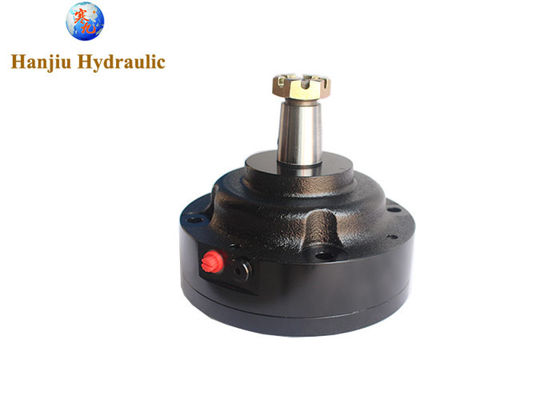

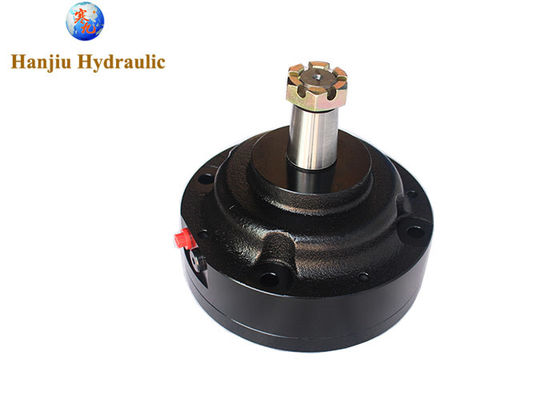

GENIE T108664 HYDRAULIC BRAKE FITS GENIE GS4047 hydraulic lifting scissors

HYDRAULIC BRAKE
Use to lock equipment into position. Spring applied, hydraulically released static brake.

Internal components run in oil bath. Roller bearings. Castle nut included.


Specifications/ Technical Data:

Holding Torque 10,000 in.lbs.
Release Pressure 400 PSI
Max Pressure 3,000 PSI
Release Volume 0.7 cu.in.
Speed 250 RPM max.
Shaft 1-3/8" tapered w/threaded end
Port SAE 4
Mount 4 holes on 7" B.C. w/4" pilot
Size 7-7/8" dia. x 2"
Shpg. 40 lbs. lbs.

Reliable and genuine hydraulic components for your construction equipment.

We offer various models from known brands as Haulotte, JLG, Skyjack, Genie, Snorkel, and many others.

other types we can supply:

HANJIU TECHNOLOGY will also conduct related tests on the performance and durability of the product. Each product produced will be taken to the corresponding testing room for more than five tests, and the product will be used as a finished product after it is confirmed. , Placed in the finished product area, and then supplied to consumers through transportation or display. Under this operation, the defect rate of HANJIU TECHNOLOGY products is relatively small, and the performance is relatively strong. The service life of ordinary hydraulic motors is five to seven years, and the service life of HANJIU TECHNOLOGY hydraulic motors is seven to ten years. And so on are all good products.

Since you have to choose to buy, why not choose to buy a product with better performance and better efficiency? All kinds of mechanical operations are relatively large-scale operation projects, which require a lot of financial resources, and a preliminary preparation of material resources. If a part has a problem, the impact will be a major loss of personnel and a major financial loss. , So better product selection means safer mechanical operation and lower cost loss.

As one of the manufacturers of hydraulic motors, HANJIU TECHNOLOGY has more than ten years of experience in the industry, and its sales targets include but are not limited to China, Canada, the United States, Europe, and Africa, spanning tens of millions of square meters. And HANJIU TECHNOLOGY maintains the craftsmanship spirit for its own products. For so many years, it can only develop its own mainstream products, do only one thing wholeheartedly, and maintain love. It is this craftsmanship that the company can make this product better.
