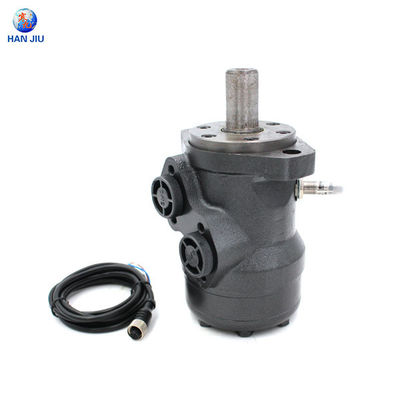

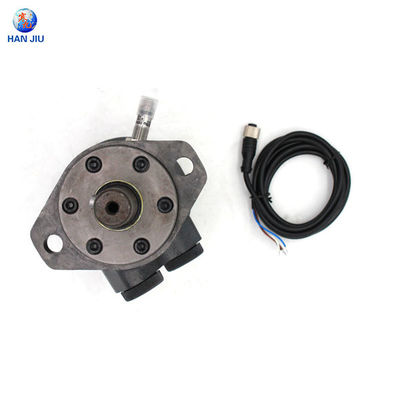

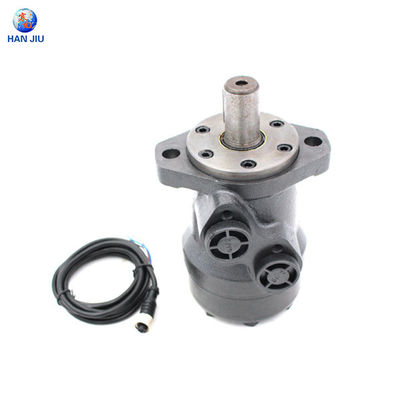

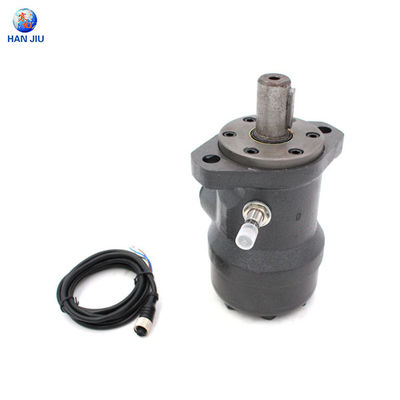

BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor

BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor
BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor

Large Image :  BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMR-200-2-AS-D-SD
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 60 USD
Packaging Details: Box, Pallet
Delivery Time: 55 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pieces per year
Detailed Product Description
Item: Hydraulic Motor OEM #: BMR-200-2-AS-D-SD
Manufacturer: Hanjiu Displacement: 200ml/r
Mounting Flange: 2-hole Wheel Flange Shaft Type: Straight
High Light:

200ml/r bmr hydraulic motor

,

200cc danfoss hydraulic motor

,

151-6393 danfoss hydraulic motor



BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 with sensor





This is an Danfoss similar motor with sensor, not made by Danfoss, it's made by Hanjiu.





Technical information

BMR MEDIUM-SPEED MOTOR WITH 2M CABLE
- Displacement: 200cc
- Flange: 2-hole, SAE-A, distance 106mm, Ø centring 82.50mm
- Shaft: Ø25mm, cylindrical
- Ports: 1/2" BSP (inlet and outlet) 1/4" BSP (drain)
- PNP speed of rotation sensor (35 impulsion per rev)
- Danfoss reference: 151-6393

FEATURES OF PRODUCT
Displacement: 200 cm3/rev
Max. pressure drop: 130 bar cont.
Max. continuous speed: 310 rpm
Rotation: clockwise





Main Specifications:
Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:
Type BMR
BMRS
36
BMR
BMRS
50
BMR
BMRS
80
BMR
BMRS
100
BMR
BMRS
125
BMR
BMRS
160
BMR
BMRS
200
BMR
BMRS
250
BMR
BMRS
315
BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1085 960 750 600 475 378 310 240 190 155
int. 1220 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 360 360 390 390 365
int. 83 126 220 280 340 430 440 490 535 495
peak 105 165 270 320 370 460 560 640 650 680
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 10 7 6 5
int. 9.8 11.2 15 15 14.5 14 13 9.5 9 8
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 16.5 13 11 9 7
int. 16.5 17.5 20 20 20 20 17.5 15 13 10
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 20 17.5 15
Max. flow (L/min) cont. 40 50 60 60 60 60 60 60 60 60
int. 45 60 75 75 75 75 75 75 75 75
Weight (kg) 6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5



Technical data for BMR with 31.75 and 32 shaft:

Type BMR
BMRS
36
BMR
BMRS
50
BMR
BMRS
80
BMR
BMRS
100
BMR
BMRS
125
BMR
BMRS
160
BMR
BMRS
200
BMR
BMRS
250
BMR
BMRS
315
BMR
BMRS
375
Geometric displacement (cm3 /rev.) 36 51.7 81.5 102 127.2 157.2 194.5 253.3 317.5 381.4
Max. speed (rpm) cont. 1250 960 750 600 475 378 310 240 190 155
int. 1520 1150 940 750 600 475 385 300 240 190
Max. torque (N·m) cont. 72 100 195 240 300 380 450 540 550 580
int. 83 126 220 280 340 430 500 610 690 690
peak 105 165 270 320 370 460 560 710 840 830
Max. output (kW) cont. 8.5 9.5 12.5 13 12.5 12.5 11 10 9 7.5
int. 9.8 11.2 15 15 14.5 14 13 12 10 9
Max. pressure drop (MPa) cont. 14 14 17.5 17.5 17.5 17.5 17.5 17.5 13.5 11.5
int. 16.5 17.5 20 20 20 20 20 20 17.5 15
peak 22.5 22.5 22.5 22.5 22.5 22.5 22.5 22.5 21 17.5
Max. flow (L/min) cont. 45 50 60 60 60 60 60 60 60 60
int. 55 60 75 75 75 75 75 75 75 75
Weight (kg)   6.5 6.7 6.9 7 7.3 7.6 8 8.5 9 9.5
* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.





BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor 0

BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor 1


More BMR series motors available:



BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor 2BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor 3





BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor 4

BMR Danfoss Replacement Medium Speed Hydraulic Motor 151-6393 With Sensor 5




A variety of mounting flange types, a variety of output shaft  types, and a variety of displacements can meet all your installation and use requirements. For BMM, BMP, BMR, BMH, BMS, BMSY, BMT, BMV, BMK2, BMK4, BMK6, BMK10 hydraulic motors, call our sales team

on +86-311-68123061 or WhatsApp 008613831101542.
