| Type: | Hydraulic Orbital Torque Motor | Speed: | 160rpm-195rpm |
|---|---|---|---|
| Warranty: | 12 Months | Torque: | 1085N.M-1180N.M |
| Output: | 14.5kw-16.5kw | Pressure: | 17.5mpa-19mpa |
| High Light: | 17.5mpa Hydraulic Agitator Motor,Concrete Pump Hydraulic Agitator Motor |
||

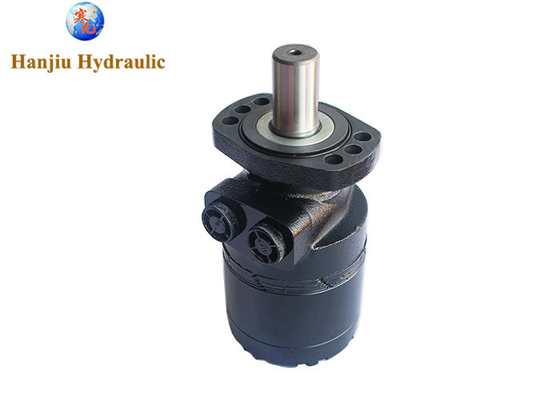

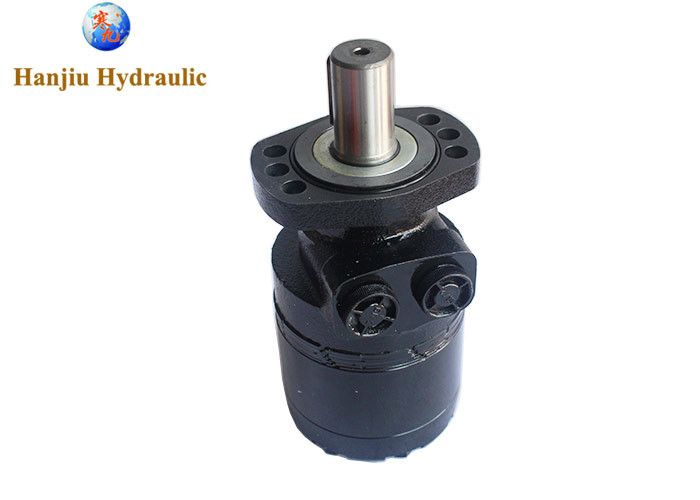

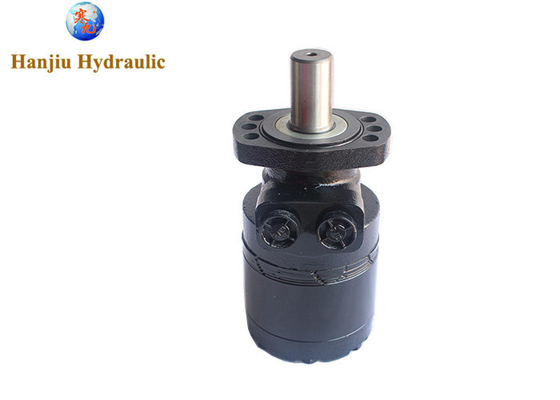

Motor Hydraulic Agitator B748 Concrete Pump Spare Part Putzmeister Beton Pump Part
Product details:
type: hydraulic agitator motor
matching brand:Danfoss/white/bucher
fitting:concrete pump truck,concrete mixer truck, beton pump
quality:OEM quality, high quality steel
OEM no.: Putzmeister 541970
Main Specificaion
| Type | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | BMER | |
| 125 | 160 | 200 | 230 | 250 | 300 | 350 | 375 | 475 | 540 | 750 | ||
| Geometric displacement (cm3/rev.) | 118 | 156 | 196 | 228 | 257 | 296 | 345 | 371 | 462 | 540 | 745 | |
| Max. speed (rpm) | cont. | 360 | 375 | 330 | 290 | 290 | 250 | 220 | 200 | 160 | 140 | 100 |
| int. | 490 | 470 | 425 | 365 | 350 | 315 | 270 | 240 | 195 | 170 | 120 | |
| Max. torque (N•m) | cont. | 325 | 450 | 530 | 625 | 700 | 810 | 905 | 990 | 1085 | 980 | 1050 |
| int. | 380 | 525 | 600 | 710 | 790 | 930 | 1035 | 1140 | 1180 | 1240 | 1180 | |
| peak | 450 | 590 | 750 | 870 | 980 | 1120 | 1285 | 1360 | 1260 | 1380 | 1370 | |
| Max. output (kW) | cont. | 12.0 | 15.0 | 15.5 | 16.0 | 17.5 | 18.0 | 17.5 | 16.5 | 14.5 | 11.5 | 8.0 |
| int. | 14.0 | 17.5 | 18.0 | 19.0 | 20.0 | 21.0 | 20.0 | 19.0 | 16.5 | 15.0 | 10.0 | |
| Max. pressure drop (MPa) | cont. | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 20.5 | 17.5 | 14 | 10.5 |
| int. | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 19 | 17.5 | 12 | |
| peak | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 27.6 | 20.5 | 20.5 | 14 | |
| Max. flow (L/min) | cont. | 45 | 60 | 70 | 70 | 75 | 80 | 80 | 75 | 75 | 75 | 75 |
| int. | 60 | 75 | 85 | 85 | 90 | 95 | 95 | 90 | 90 | 90 | 90 |
|
The production of a concrete mixer truck is technically a necessary hard power, but the various parts of the concrete mixer truck
required for production still need to be handed over to the company that is responsible for this sector. It not only saves your development time and cost, but also focuses on the areas you are best at. The commodities in the current world are no longer arranged by one company, but are divided into different sections to complete the products. The world is more diversified and win-win direction. As a general trend, business and business are also the best choice for win-win cooperation.
So, when facing the hydraulic components sector, when you don’t know how to choose. You can choose a high-quality excellent company to work together. Hanjiu technology is your best choice.
Hanjiu technology is a company specializing in the production and sales of hydraulic components. The products are widely used and can be used in engineering construction, agriculture, marine, mining and other fields. In many large-scale engineering projects, you can always see our products. High-quality hydraulic motors, hydraulic valves, hydraulic orbitrol steerig units..etc. are trusted by customers in many countries.
Hanjiu technology manufacture aftermarket spare parts of concrete pumps and mixers for the brands like Putzmeister,
Schwing, Cifa, Sermac, Reich, Waitzinger, Elba, Junjin and the other brands. We manufacture high quality and reasonable
priced concrete pump pistons,hydraulic orbit motors
Our professional team can solve your hydraulic system problems for you, and the complete production line allows our production to be carried out in an efficient and orderly manner. Choosing HANJIU TECHNOLOGY can meet all your needs for high-quality performance of hydraulic motors.
