Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Model: | 1P120 |
|---|---|---|---|
| Apply To: | Flow Generators, Flow Consumers | Spool: | 1 |
| MAax Operation Pressure: | 350 Bar | Nominal Flow: | 120 LPM |
| High Light: | 120lpm monoblock hydraulic directional control valve,monoblock directional control valve 1 spool,120 lpm monoblock directional control valve |
||

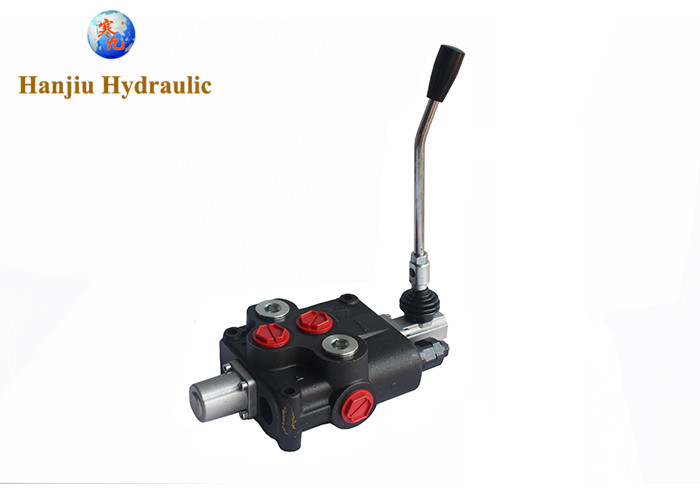

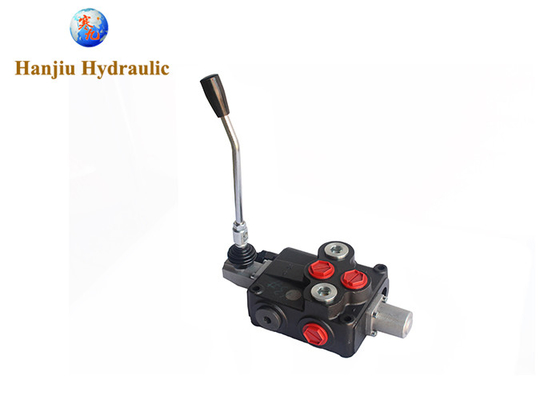

1 spool P120 Monoblock Directional Control Valves, Flow rate 120 LPM
The hydraulic distributor Р120 is used for switching on/off and controlling of the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tanks of hydraulic systems.
| AMBIENT TEMPERATURE | -40 … +60 |
| oC | |
| VISCOSITY | 12 … 800 |
| mm2/s | |
| FLUID TEMPERATURE | -15 … +80 |
| oC | |
| FILTRATION | 10 to NAS 1638 |
| MAX OPERATING PRESSURE | 315 |
| bar | |
| BACK PRESSURE | 50 |
| bar | |
| NOMINAL FLOW | 120 |
| L/min | |
| LEAKAGE (A, B-T) | 30 cm3/min at 120 bar |
| SPOOL STROKE | 10 |
| mm | |
| ACTUATING FORCE | < 300 |
| N |
* For different spool & lever options please contact our sales team
P120 HYDRAULIC CONTROL VALVES AVAILABLE IN 1-4 SPOOL BANKS WITH ADJUSTABLE RELIEF VALVE AND MACHINED FOR CARRYOVER PLUG. ALL STANDARD CONTROL VALVES COME WITH DOUBLE ACTING (A) SPOOLS AND SPRING TO CENTER LEVER CONTROL.
SPECIFICATION
- PORT SIZES = P,T + A/B = 1" BSP
- CAST IRON BODY - EN-GJL300
- MAX WORKING PRESSURE - P = 250 BAR, T = 50 BAR, A/B = 300 BAR
- MAX FLOW RATE = 120 LPM
- OPERATING TEMPERATURE BETWEEN -40℃ TO +60℃
- RELIEF VALVE SETTING = 180 BAR STANDARD (MAX = 250 BAR)
- SPOOL LEAKAGE AT 120 BAR = 30CM3 P/M
