Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Model: | 2P120 |
|---|---|---|---|
| Apply To: | Flow Generators, Flow Consumers | Spool: | 2 |
| MAax Operation Pressure: | 350 Bar | Nominal Flow: | 120 LPM |
| High Light: | 2 spool monoblock hydraulic control valve,1 inch monoblock hydraulic control valve,spool monoblock hydraulic directional control valve |
||

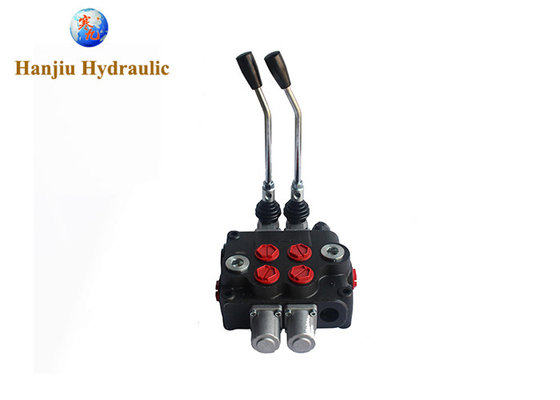

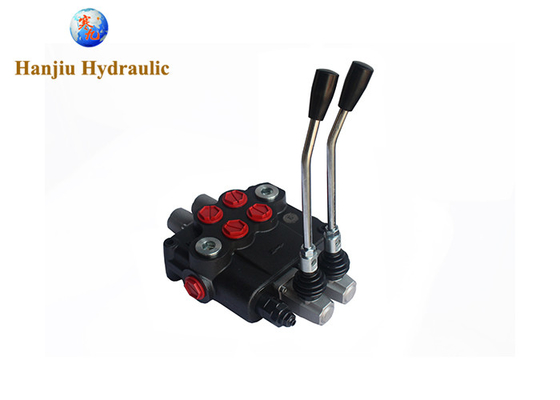

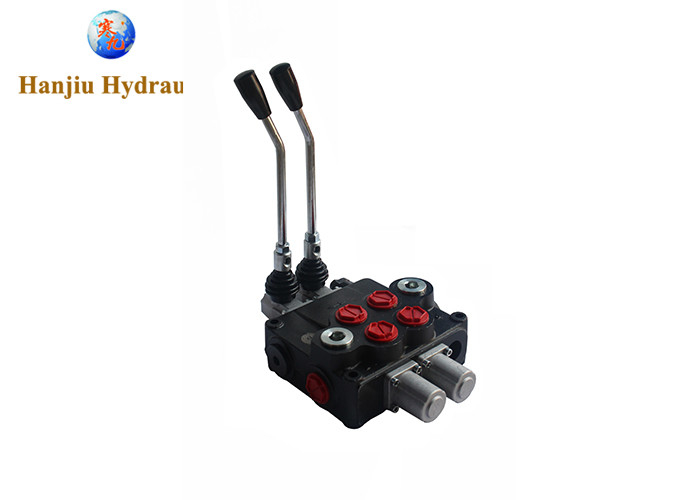

2P120 1'' Directional Control Valve, Monoblock Directional Control Valves 2 Spool
The hydraulic distributor Р120 is used for switching on/off and controlling of the working fluid between head flow generators (hydraulic pumps), head flow consumers (hydraulic cylinders, motors, etc.), and the tanks of hydraulic systems.
Available in 1-4 spools
With adjustable relief valve and machined for carryover plug
All standard control valves come with double action and spring to center function.
* For different spool & lever options please contact our sales team
| AMBIENT TEMPERATURE | -40 … +60 |
| oC | |
| VISCOSITY | 12 … 800 |
| mm2/s | |
| FLUID TEMPERATURE | -15 … +80 |
| oC | |
| FILTRATION | 10 to NAS 1638 |
| MAX OPERATING PRESSURE | 315 |
| bar | |
| BACK PRESSURE | 50 |
| bar | |
| NOMINAL FLOW | 120 |
| L/min | |
| LEAKAGE (A, B-T) | 30 cm3/min at 120 bar |
| SPOOL STROKE | 10 |
| mm | |
| ACTUATING FORCE | < 300 |
| N |
Specification:
P, T, A, B = 1'' BSP
Max working pressure, P = 250 BAR, T = 50 BAR, A/B = 300 BAR
Max flow rate = 120 LPM
