| Item: | Hydraulic Valves | Model: | 3P120 |
|---|---|---|---|
| Apply To: | Flow Generators, Flow Consumers | Spool: | 3 |
| MAax Operation Pressure: | 350 Bar | Nominal Flow: | 120 LPM |
| High Light: | 120 liter monoblock control valve,open center spool monoblock control valve,1" monoblock hydraulic directional control valve |
||

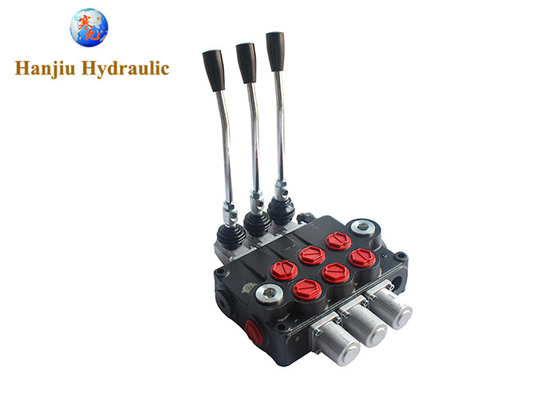

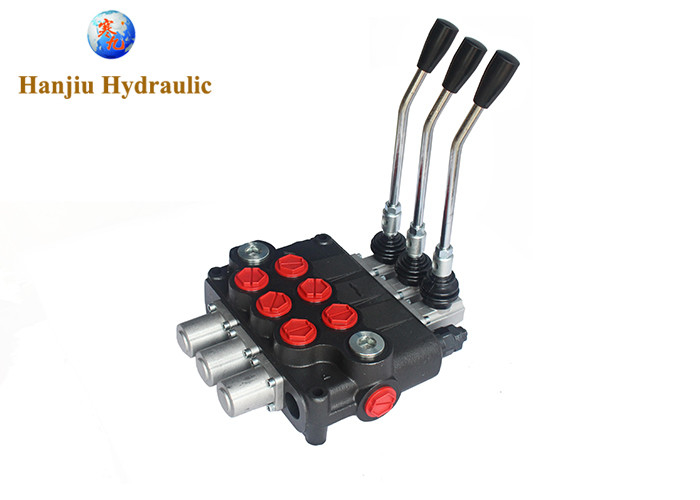

120 liter monoblock control valve, P120 , three spool , G 1" , open center spool
Directional control valves are one of the core elements in a hydraulic system. They help directing the fluid to different components such as hydraulic cylinders or motors.
Directional control valves perform three functions:
Stop fluid flow
Allow fluid flow
Change direction of fluid flow.

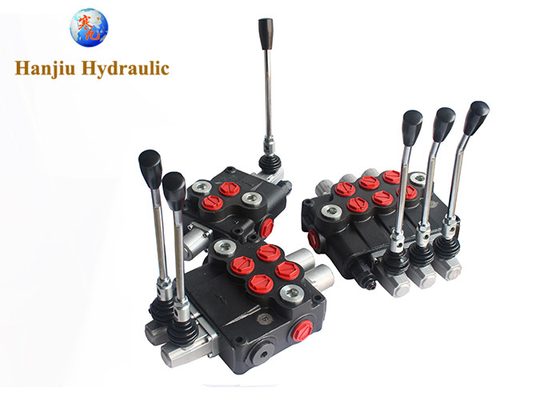

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hanjiu provide monoblock directional control valves with different capacities and spool control options.
* Spool is open center “A” spool with spring return. Working port threads (A & B) are G 1"
* Max. Pressure P: 250 bar, T: 50 bar, A-B: 300 bar
| AMBIENT TEMPERATURE | -40 … +60 |
| oC | |
| VISCOSITY | 12 … 800 |
| mm2/s | |
| FLUID TEMPERATURE | -15 … +80 |
| oC | |
| FILTRATION | 10 to NAS 1638 |
| MAX OPERATING PRESSURE | 315 |
| bar | |
| BACK PRESSURE | 50 |
| bar | |
| NOMINAL FLOW | 120 |
| L/min | |
| LEAKAGE (A, B-T) | 30 cm3/min at 120 bar |
| SPOOL STROKE | 10 |
| mm | |
| ACTUATING FORCE | < 300 |
| N |
