Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Model: | DCV25 |
|---|---|---|---|
| Apply To: | Truck | Spool: | 1 |
| MAax Operation Pressure: | 350 Bar | Nominal Flow: | 25 LPM |
| High Light: | dcv25 monoblock valves,25l/min directional control valve,5.3 gpm directional control valve |
||

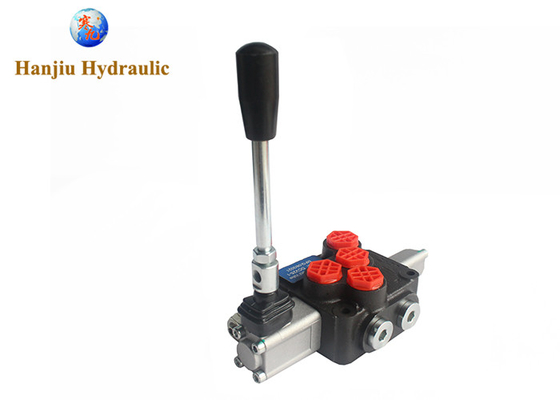

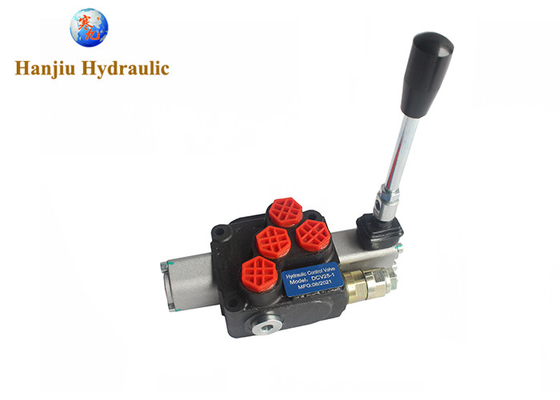

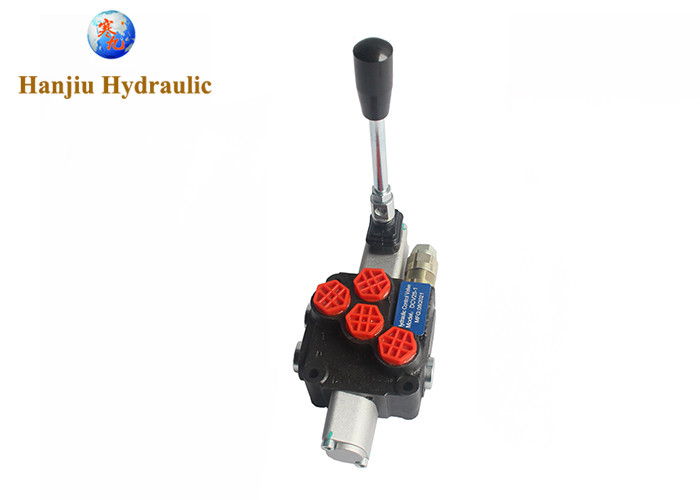

DCV 25 Monoblock & Modular Valves, one spool, 25 L/min 5.3 GPM
Monoblock design
Up to 6 sections
Max flow of 40lpm
Ports 3/8"
| Type | Max Flow l/min ( GPM) | Max pressure bar ( psi) |
| DCV 25/1 | 40 ( 10.6) | 400 ( 5800) |
| DCV 25/2 | ||
| DCV 25/3 | ||
| DCV 25/4 | ||
| DCV 25/5 | ||
| DCV 25/6 |
All the castings are made with Shell-Moulding, in special graphite cast iron. This kind of cast iron is of high resistance, and it allows having, with the same external overall dimensions, bigger internal gallery, and lower pressure drops.
All spools are made in high resistance steel, nickel plated, radial balanced and with special notches in order to have a better performance, they are completely interchangeable.
