Product Details:
Payment & Shipping Terms:
|
| Item: | Hydraulic Valves | Model: | ZT20 |
|---|---|---|---|
| Apply To: | Forklift, Environment Vehicle And Light Loading Machines | Spool: | 5 |
| MAax Operation Pressure: | 350 Bar | Nominal Flow: | 90 LPM |
| High Light: | forklift monoblock control valve,1 spool monoblock control valve,5 spool monoblock directional control valve |
||

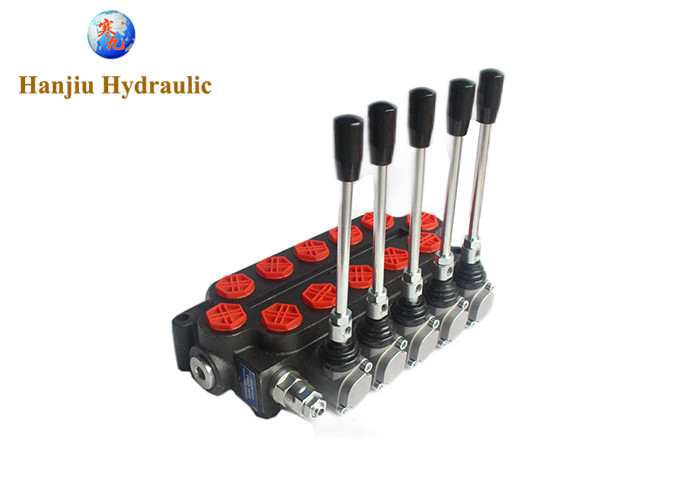

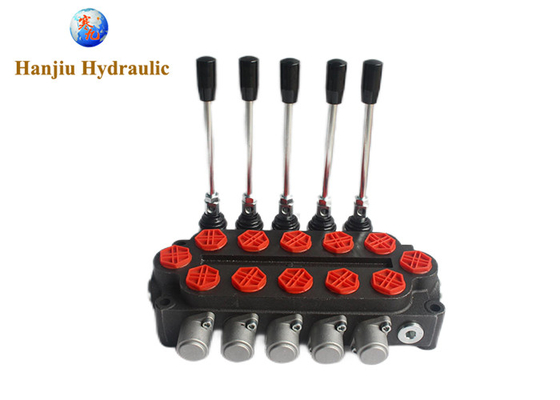

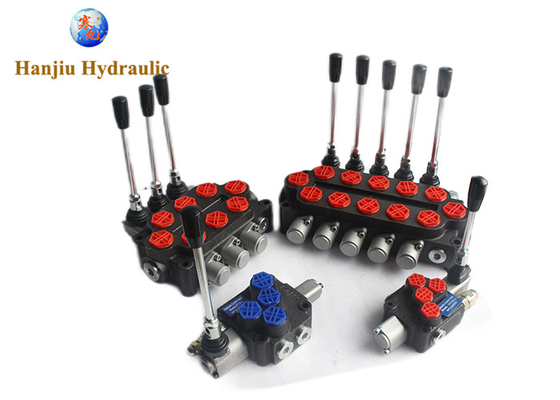

Forklift Monoblock Control Valve ZT20 with Parallel circuit, 1-5 spool
Model ZT-L20 with middle-high pressure monoblock construction is an independently developed control valves by our company.
Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be returned.
. Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure.
. Oil way: Parallel circuit,power beyond option
. Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
. Valve construction: monoblock construction, 1-5 levers.
. Spool Function: 0,Y, P,A.
. Option:Hydraulic lock is available to be added on A and B port.
. The valve is widely used in the hydraulic system of forklift, environment vehicle and light loading machines.
| Specifications | ||||||
| Nominal | Max. pressure (Mpa) | Nom. flow (L/min) | Allowable | Hydraulic Oil | ||
| Pressure (Mpa) | Back, pressure (Mpa ) | Tem.range | Visc.range (mm2/s ) | Filtrating accuracy (卩m) | ||
| (°c) | ||||||
| 20 | 31.5 | 90 | W1 | -20〜+80 | 10-400 | W10 |
