| Type: | 2 Spool Hydraulic Valve | Structure: | Monoblock Directional Valve With Cable Control |
|---|---|---|---|
| Pressure: | Medium Pressure, High Pressure, 160-250bar | Flow: | 80 Liters/ Min |
| Connection: | Internal Thread | Power: | Hydraulic, Pneumatic, Solenoid, Manual, Electric |
| Application: | Agricultural Machines And Construction Machineries, Heavy Duty Tasks | Material: | Cast Iron |
| High Light: | 1x Cable Remote Control Valve Kit,2spool Cable Remote Control Valve Kit,Remote Valve Cable Control Connection Kit |
||

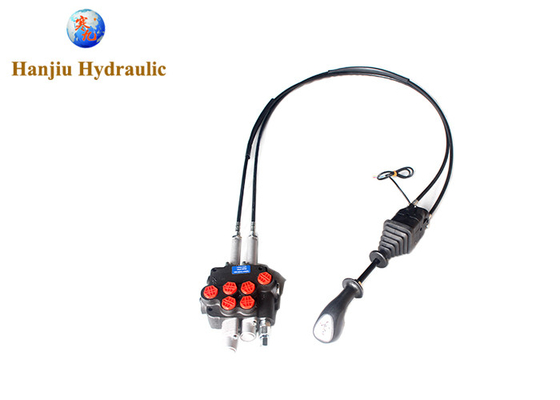

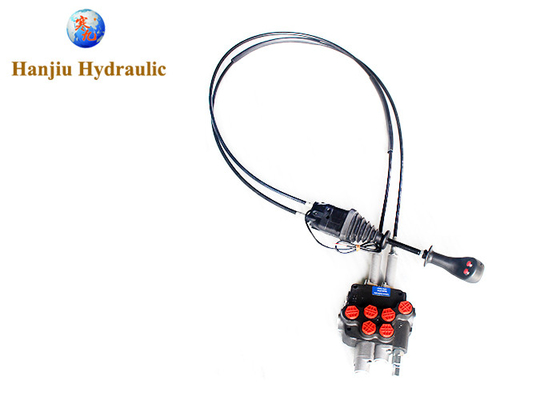

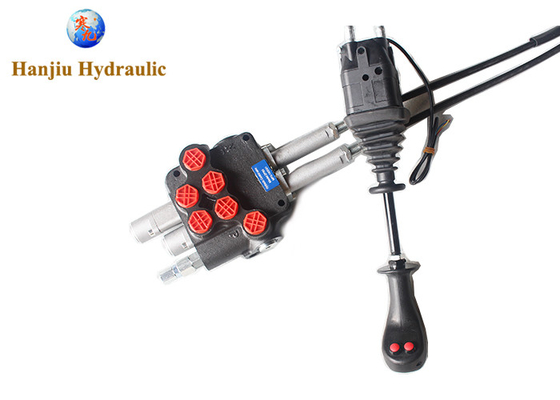

1x Floating Cable Remote Control Valve Kit 2 Spool 80L Joystick Open Center
PARAMETERS
| Nom. Pressure (MPa) |
Max.Pressure (MPa) |
Nom. Flow rate (L/min) |
Back Pressure(MPa) |
hydraulic oil | ||
| Tem.rang (ºC) |
Visc.rang (mm2/S) |
filtrating accuracy (μm) |
||||
| 20 | 31.5 | 80 | ≤1 | -20~+80 | 10~400 | ≤10 |
| Flow rate | 80l/min |
| Spool function | Cylinder, motor spool, single acting |
| Thread | G3/8, M18*1.5,3/4-16 UNF-2B (SAE 8) |
| Control way | Spring and detent control |
| Max pressure | 315bar. |
| Spool diameter | 16mm |
| Cable length | 1.8m |
Hydraulic control valve 2P80 1 A1 A1 GKZ + 2 pieces of cable + joystick with 1x floating position
SPECIFICATIONS
Joystick Indemar Control twice with one hand +Valve 2P80 1 A1 A1 GKZ1
- Maximum working pressure P = 3600psi (250 bar); T = 150 psi (10 bar); A, B = 4300 psi (300 bar)
- nominal flow rate 21 gpm (80 l / min)
- Centrally open (pump-to-tank flow)
- Adjustable pressure relief valve
- A, B connections 1/2 "BSPP (British Standard Parallel Pipe, not NPT)
- Connection P, T, N 3/4 "BSPP
- All the coils are Standard double-acting with spring return in neutral position
It is widely used in hydraulic systems in construction, agriculture and industry.
The set is adapted to different types of machines such as: agricultural machinery, tractors,
Field sprayers, tours, cyclops, HDS loaders, construction machinery, loaders, excavators, sweepers,
Industrial machines and other hydraulically controlled devices.
Ideal for controlling three sections per revolution, lifting the frame, tilted head and grapple
for bale or crocodile. In tractors where the hydraulic pump output does not exceed 80 l / min
General Information:
The main advantages of joystick control:
1. Very comfortable, convenient and precise control.
2. Safety mechanism with which the joystick head can be blocked.
3. Throw the manifold outside of the booth, which will stay clean with no oil leaking.
Joystick:
Adapted to control two sections in the manifold. Has an additional button and exit
Electrical wiring harness that enables the use of an electrovalve that provides additional control, third section e.g. in the TUR loader with a crocodile or a bale grab.
Inner parts made of aluminum, housing made of strong plastic. Blocking the possibilities
Control via the safety button. NIMCO European production, 2 year guarantee.
Cable:
Standard cable length: 1.5m
The possibility of changing the length of the lines to 1 m; 1.8 m; 2.5 m; 3m without changing the price of the set.
Thread on the distributor side: cable body M16x1.5, cable tie M6x1.5.
Joystick ball with a diameter of 14mm.
