Product Details:
Payment & Shipping Terms:
|
| Model No.: | 2P40 | Warranty: | 12-18 Months |
|---|---|---|---|
| Spool: | 1, 2, 3, 4, 5, 6, ... | Flow: | 40lt, 45lt, 60lt, 80lt, 100lt, 120lt, 140lt, ... |
| Spool Function: | O/Y/A | Warranty: | 12months |
| High Light: | floating spool monoblock loader valve,11gpm monoblock loader valve,11gpm hydraulics monoblock loader valve |
||

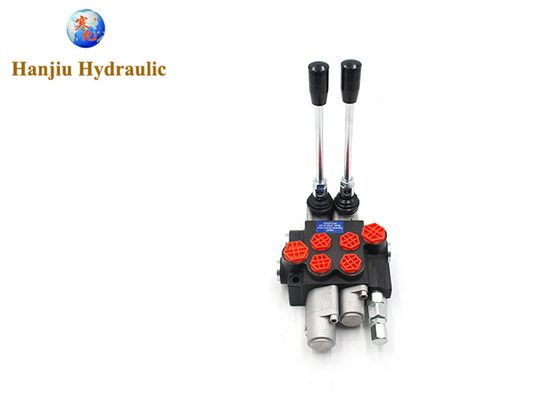

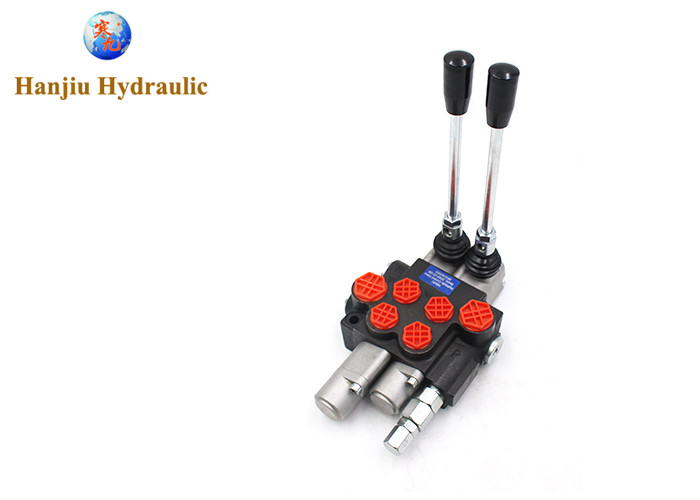

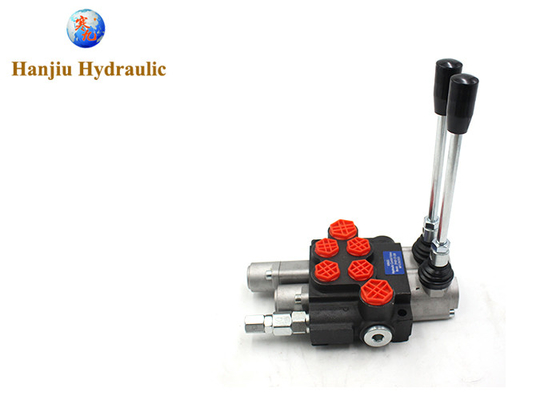

This is a brand new high quality valve, it is designed for Front end Loaders, tractors or any application where you need to control one function or cylinders. It has a 'float' function on the second spool with detent, which means your Blade will 'skim' the ground . The other spool is a cylinder spool for an alternate function. It is a 'four' position lever, up, down, centre plus all the way down, is detent 'float'. The oil is open to tank in this position allowing your blade to rise & fall freely with the grounds contours.
The Hydraulic Valve actually, is a device that can change the opening degree of liquid(oil) flow path
They are manufactured in a variety of styles to function in different applications. Valves are used to manipulate the flow of hydraulic fluid within a hydraulic circuit and are activated either mechanically or electronically.
Manually Operation, Mechanical Drive, Hydraulic Transmission, pneumatic Transmission ,Solenoid Drive, Electric-Hydraulic Drive ,Solenoid Proportion Drive
Directional control valves can control the start, stop and change in direction of flow of a pressure medium
Hydraulic directional control valves should be selected based upon both the size of the circuits and the components,
both upstream and downstream to the valve
A directional control valve comprises at least two spool (switching) positions and two working ports.
Flow ratings should be based upon the highest possible flow the valve will need to achieve.
| Ambient temperature | -40C...+60C |
| Viscosity | 12 ...800 mm2/s |
| Fluid temperature | -15C...+80C |
| Filtration | 10 to NAS 1638 |
| Max operating pressure | 250bar |
| Back pressure | 50 bar |
| Nominal flow | 40 l/min |
| Leakage(A,B-T) | 15cm3/min at 120bar |
| Spool stroke | 6 mm |
| Actuating force | < 200 N |
| Modification/ Spools | with 1 to 7 |
1, Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be
returned.
2, Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working
pressure.
3, Oil way: Parallel circuit, power beyond option
4, Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
5, Valve construction: monoblock construction, 1-6 levers.
6, Spool Function: O,Y, P,A.
7, Option: Hydraulic lock is available to be added on A and B port.
8, Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric
control and etc.
Ports thread
| BSP Thread | Metric thread | US standard UNF thread | US standard NTP thread | ||||
| code | Thread size | code | Thread size | code | Thread size | code | Thread size |
| G04 | G1/4 | M16 | M16X1.5 | U10 | 5/8-12UNF | N06 | NPT3/8 |
| G06 | G3/8 | M18 | M18X1.5 | U12 | 3/4-16UNF | N08 | NPT1/2 |
| G08 | G1/2 | M20 | M20X1.5 | U14 | 7/8-14UNF | N12 | NPT3/4 |
| G12 | G3/4 | M22 | M22X1.5 | U16 | 1-12UNF | ||
| M27 | M27X2 | ||||||
