Lsht TG0475 Parker Tg Motor With 6 Bolt Mounting And 6B Shaft

Lsht TG0475 Parker Tg Motor With 6 Bolt Mounting And 6B Shaft
Lsht TG0475 Parker Tg Motor With 6 Bolt Mounting And 6B Shaft Lsht TG0475 Parker Tg Motor With 6 Bolt Mounting And 6B Shaft Lsht TG0475 Parker Tg Motor With 6 Bolt Mounting And 6B Shaft

Large Image :  Lsht TG0475 Parker Tg Motor With 6 Bolt Mounting And 6B Shaft

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: BMER-2-475-FS-SW
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: 150 - 170 us dollar
Packaging Details: Box, Pallet
Delivery Time: 55 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pieces per year
Detailed Product Description
Item: Low Speed High Torque Motor OEM #: BMER-2-475-FS SW
Manufacturer: Hanjiu Displacement: 475 Ml/r
Mounting Flange: 6-hole Wheel Flange Shaft Type: 6B Spline
High Light:

lsht parker tg motor

,

6b shaft parker tg motor

,

tg0475 lsht motor

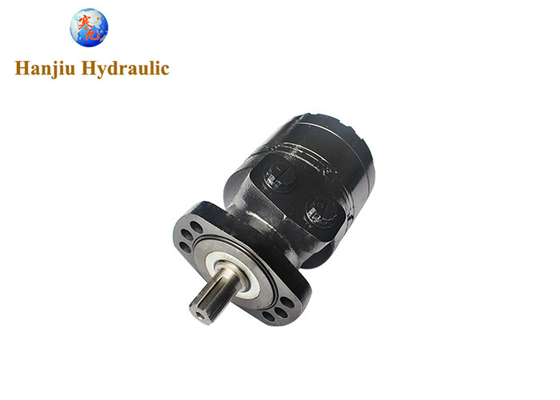

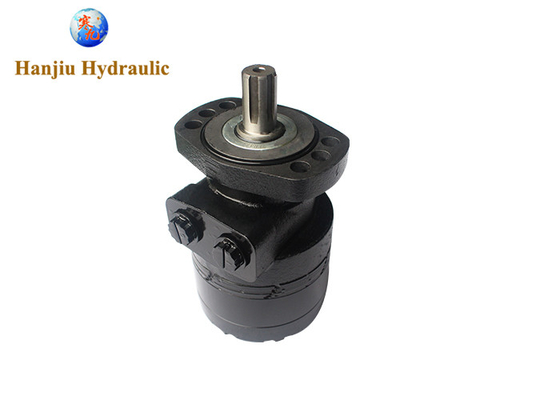

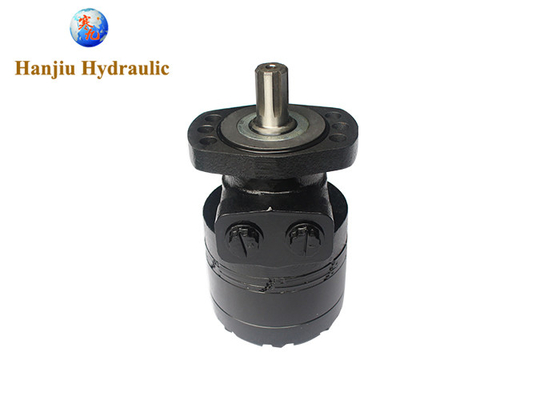

Parker TG series aftermarket motor TG0475 with 6 bolt mounting and 6B shaft



This is a Parker TG aftermarket motor, which same as Parker TG series on form, fit and application.



BMER 0475 = TG 0475



Motor
Series
BMER
cm3/rev
in3/rev
rev/min cont / int*
l/min
g/min
cont / int*
bar
psid
max
bar
psig
cont / int*
Nm
lb-in
max
KW
HP
cont / int*
Nm
lb-in
BMER 0475 477
29.1
237 76 114
20 30
138 207
2000 3000
300
4350
887 1372
7853 12145
28
38
740 1120
6549 9909



BMER Features : Zero leak commutation valve, For greater, more consistent volumetric efficiency. Roller vane rotor set reduces friction and internal leakage, maintaining efficiency throughout the life of the motor, No check valves needed, no extra plumbing. Wide choice of displacement range, flange and shaft options. Greater efficiency in systems design to suit your application



Customers from North America, Latin America and Europe use Hanjiu's BMER motor as a high-quality alternative to Parker's TG motor. Our quality is excellent, and our price is more favorable to dealers and users. We are currently the new brand with the highest quality and price advantage in the market.



Hanjiu BMER has excellent strength and durability among high-performance motors. The core torque link of the BMER series powertrain is an ultra-heavy component that includes a unique spline geometry. The robust structure always allows transmission of more than 13,000 lb-in of torque. The entire powertrain is constantly cleaned in a cool high-flow fluid to ensure a long life. The roller blades and sealed commutator maintain high efficiency and provide smooth low-speed performance.



If you are looking for a better supplier, please contact me. I provide detailed motors of TG series motors, as well as TE, TJ, TF, TB, TC, TJ series motors.



Lsht TG0475 Parker Tg Motor With 6 Bolt Mounting And 6B Shaft 0



Lsht TG0475 Parker Tg Motor With 6 Bolt Mounting And 6B Shaft 1
