758hd Harvester Head John Deere Hydraulic Motor Feed Rollers Danfoss Omtw 315 400 500

Name: 758hd Harvester Head John Deere Hydraulic Motor Feed Rollers Danfoss Omtw 315 400 500
Brand: HANJIU
SKU: BMTW
Rating: 4.6 (197 reviews)

Large Image : 758hd Harvester Head John Deere Hydraulic Motor Feed Rollers Danfoss Omtw 315 400 500

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	ISO9001:2015
Model Number:	BMTW

Payment & Shipping Terms:

Minimum Order Quantity:	20 Sets
Price:	Negotiable
Packaging Details:	Carton Packing, and finally with pallet or wooden box
Payment Terms:	L/C, T/T, Western Union, Paypal
Supply Ability:	100,000 Sets per year

Contact Now

Detailed Product Description

Categories:	Hydraulic Wheel Motor	Name:	OMTW MHTW315K2
Max.output:	Cont.31.2kw/int.35kw	Max Torque:	Cont.1080N.m/int.1260N.m
Flange:	φ200mm Wheel Motors	Shaft:	Cone Shaft 1:10
High Light:	harvester head john deere hydraulic motor , omtw 315 john deere hydraulic motor , omtw 400 danfoss hydraulic motor

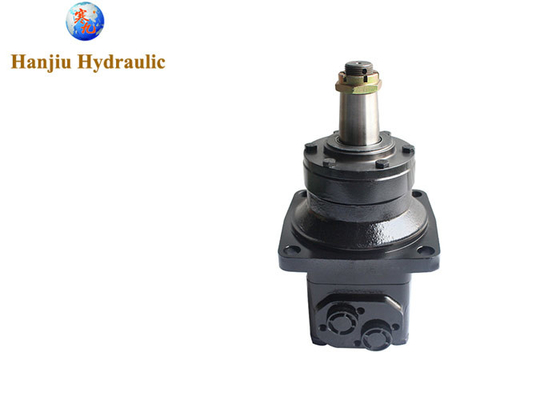

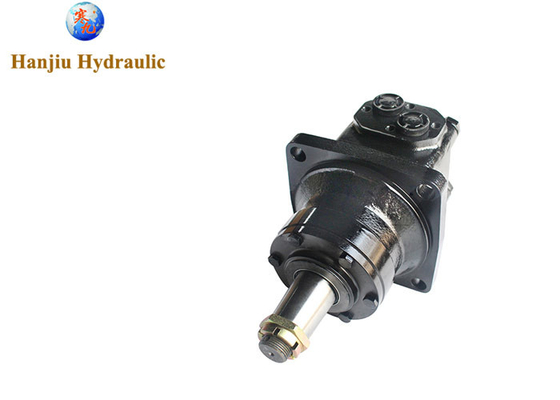

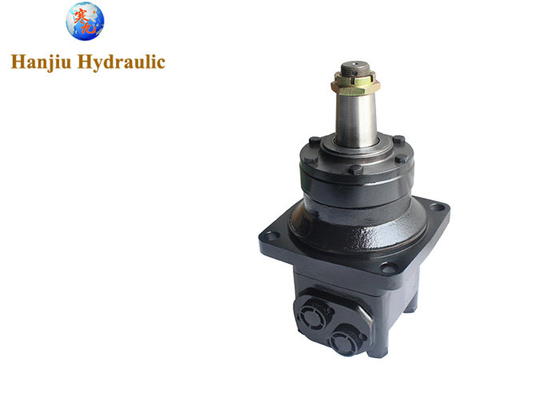

758HD - HARVESTER HEAD HYDRAULIC MOTOR, FEED ROLLERS DANFOSS OMTW 315, 400, 500 John Deere

Hanjiu hydraulic motors BMTW, matching Danfoss OMTW,

with same performance, 100% quivalent to original Danfoss

also this type of hydraulic orbit motors is widely used on harvester head,

especially for John Deer 758 Harvester head 44 CUTTING MECHANISMS

Output volume (cc/rev):326.3cc

Shaft: tappered shaft 1:10

max r.p.m.: 380

Torque max. (Nm): 1346.3

Power max. (kW): 40,0

Pressure difference (bar): 280

Inlet pressure (bar): 300

Volume flow max. (l/min): 150

Engine version: with non-return valves

Connection: G 3/4"

Leakage oil connection: G 1/4"

Main Specifications:

Type		BMTW 160	BMTW 200	BMTW 230	BMTW 250	BMTW 315	BMTW 400	BMTW 500	BMTW 630	BMTW 800
displacement (cm3/rev. )		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max.pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	rated	80	100	100	100	100	100	100	100	100
	cont.	100	125	125	125	125	125	125	125	125
	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (Mpa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25
