X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange

Name: X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange
Brand: HANJIU
SKU: OMPX160
Price: 47 USD
Availability: InStock
Rating: 4.9 (117 reviews)

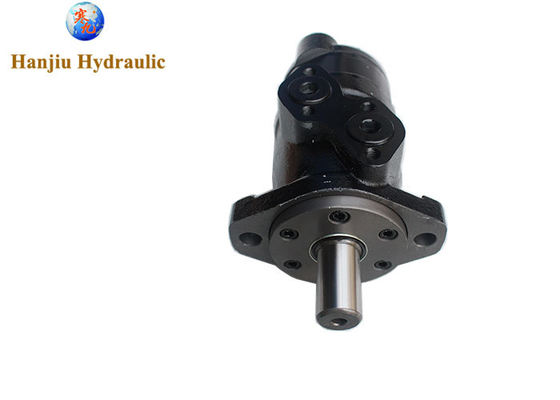

Large Image : X 160 Shaft 25mm Rear Port Danfoss Omp Motor Cylindrical Shaft A2 2 Bolt Flange

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	OMPX160

Payment & Shipping Terms:

Minimum Order Quantity:	100 Pieces
Price:	47 - 60 usd
Packaging Details:	1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Type:	Geroler And Gerotor Motor	Warranty:	12months
Model No.:	BMP200	Feature:	Replace OMP, M+S MP, EATON H Series
Application:	Plastic, Agricultural, Forestry, Industrial, Etc.	Port:	Rear Port
High Light:	rear port danfoss omp motor , shaft 25mm danfoss omp motor , rear port omp 160 hydraulic motor

OMP MOTOR X 160 SHAFT Ø25MM Rear Port Cylindrical Shaft A2 2 Bolt flange

Description:

Hanjiu BMPX160 = Danfoss OMPX160 Rear Port

Specifications:

Type	BMPX
Displacement	160CC
Shaft	25MM Cylindrical
Flange	A2 (2 Bolt 106.1 pcd)
Port Position	End
Shaft Seal	High Pressure
Drain	Yes

Hanjiu offers range of geroler and gerotor motors that are compatible with Danfoss on form, fit and function.

We are experts when it comes to all Danfoss Orbital Motors, including the below BMP motors with SAE A 2 Bolt

Cylindrical Shaft 1/2" BSP Ports.

Type		BMP 36	BMP 50	BMP 80	BMP 100	BMP 125	BMP 160	BMP 200	BMP 250	BMP 315	BMP 400	BMP 500
displacement (cm3 /rev.)		36	51.7	77.7	96.2	120.2	157.2	194.5	240.3	314.5	389.5	486.5
Max. speed (rpm)	cont.	1500	1150	770	615	490	383	310	250	192	155	120
Max. speed (rpm)	int.	1650	1450	960	770	615	475	385	310	240	190	150
Max. torque (N·m)	cont.	55	100	146	182	236	302	360	380	375	360	385
	int.	76	128	186	227	290	370	440	460	555	525	560
	peak	96	148	218	264	360	434	540	550	650	680	680
Max. output (kW)	cont.	8	10	10	11	10	10	10	8.5	7	6	5
Max. output (kW)	int.	11.5	12	12	13	12	12	12	10.5	8.5	7	6
Max. pressure drop (MPa)	cont.	12.5	14	14	14	14	14	14	11	9	7	6
	int.	16.5	17.5	17.5	17.5	17.5	17.5	17.5	14	14	10.5	9
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	18	16	14	12
Max. flow (L/min)	cont.	55	60	60	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	60	75	75	75	75	75	75	75	75	75	75
Weight (kg)		5.6	5.6	5.7	5.9	6	6.2	6.4	7	6.9	7.4	8
