Product Details:
Payment & Shipping Terms:
|
| Type: | Low Speed High Torque Hydraulic Motor | Speed: | 247rpm-328rpm |
|---|---|---|---|
| Displacement: | 295cc | Warranty: | 12-18 Months |
| Application: | Construction Machines, Heavey Machines, Rollers Etc. | Torque: | 378N.M-528N.M |
| Output: | 9.9kw-17.9kw | Pressure: | 12mpa-16.5mpa |
| High Light: | lsht nichols motors,lsht parker nichols motor,low speed nichols motors |
||
This medium duty motor has higher pressure ratings than the TB motor, for applications requiring higher torque.
Robust roller bearings withstand higher side loads and are suitable for chain and sprocket shaft connections.
It uses high pressure shaft seals, robust roller bearings and high flow shaft seal cooling.
Main Specifications:
| Type | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | BME2 | |
| 65 | 80 | 100 | 125 | 160 | 200 | 230 | 250 | 295 | 315 | 375 | ||
| Geometric displacement | 66.8 | 81.3 | 101.6 | 127 | 157.2 | 193.6 | 226 | 257 | 287.8 | 314.5 | 370 | |
| (cm3 /rev.) | ||||||||||||
| Max. speed (rpm) | cont. | 667 | 543 | 439 | 350 | 283 | 229 | 247 | 216 | 296 | 178 | 152 |
| int. | 842 | 689 | 553 | 441 | 355 | 289 | 328 | 287 | 254 | 235 | 199 | |
| Max. torque (N*m) | cont. | 126 | 157 | 191 | 245 | 307 | 382 | 378 | 381 | 393 | 448 | 439 |
| int. | 176 | 215 | 268 | 335 | 422 | 520 | 528 | 543 | 547 | 587 | 613 | |
| Max. output (kW) | cont. | 8.3 | 8.8 | 7.9 | 8.9 | 8.9 | 9 | 9.9 | 9.3 | 8.7 | 8 | 7.6 |
| int. | 13.9 | 14.4 | 13.5 | 14.1 | 15.6 | 15.7 | 17.9 | 16.5 | 15.6 | 14.3 | 14 | |
| Max. pressure drop (MPa) | cont. | 14 | 14 | 14 | 14 | 14 | 14 | 12 | 11 | 10 | 10 | 9 |
| int. | 19 | 19 | 19 | 19 | 19 | 19 | 16.5 | 15.5 | 14.5 | 13.5 | 12.5 | |
| peak | 20 | 20 | 20 | 20 | 20 | 20 | 18 | 18 | 17 | 16 | 16 | |
| Max. flow (L/min) | cont. | 45 | 45 | 45 | 45 | 45 | 45 | 57 | 57 | 57 | 57 | 57 |
| int. | 57 | 57 | 57 | 57 | 57 | 57 | 75 | 75 | 75 | 75 | 75 | |

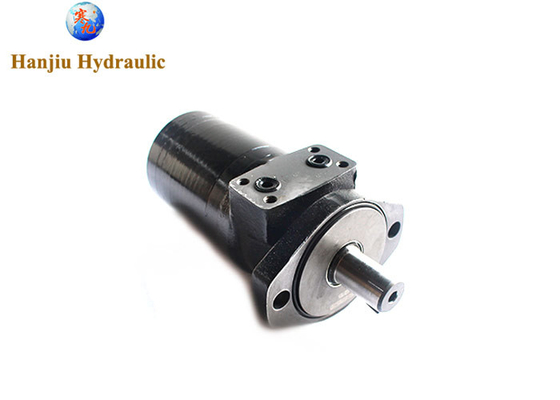

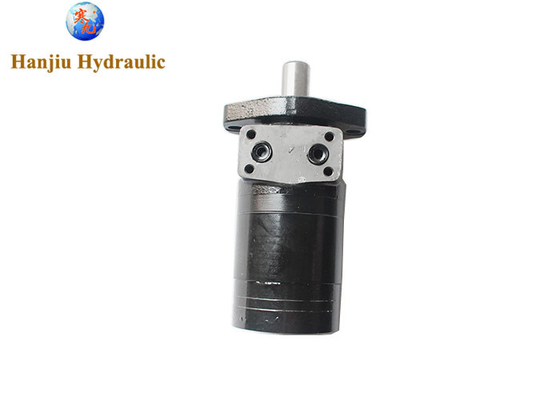

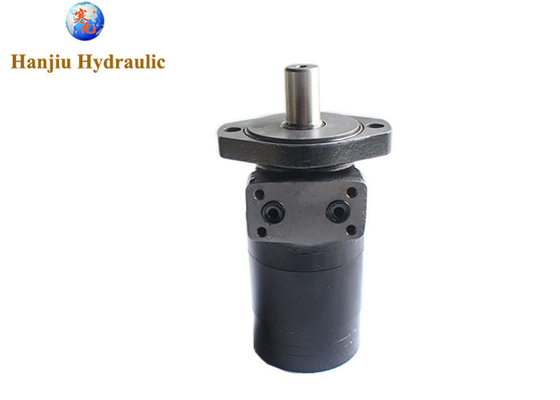

| 1, | model number | BME2-295-HM-K-R-B |
| 2, | displacement | 295ml/r |
| 3, | flange | 2-13.5 Magneto Mount |
| 4, | shaft | key shaft,woodruff key |
| 5, | oil port | φ12.7 |
| 6, | drain | --- |
| 7, | rotation | Standard |
| 8, | paint | Black |
| 9, | replace | Parker TE TG TF |
Other types we supply:
TE0260AM100AAAB
TE0260AM100AAAG
TE0260AM110AAAA
TE0260AM110AAAB
TE0260AM130AAAA
TE0260AM130AAAB
TE0260AM250AAAA
TE0260AP090AAAA
TE0260AP100AAAA
TE0260AP100AAAB
TE0260AP100AAAC
TE0260AP110AAAA
TE0260AP110AAAB
TE0260AP130AAAA
TE0260AP260AAAA
TE0260AR100AAAB
TE0260AS010AAAA
TE0260AS010AAAC
TE0260AS090AAAA
TE0260AS090AAAB
TE0260AS100AAAA
TE0260AS100AAAB
TE0260AS110AAAA
TE0260AS110AAAB
TE0260AS110AALW
TE0260AS130AAAA
TE0260AS130AAAB
TE0260AS130AAAC
TE0260AS210AAAB
TE0260AS210AAAC
TE0260AS210AAAG
TE0260AS210AAXB
TE0260AS210AAXK
TE0260AS211AAAC
TE0260AS220AAAA
TE0260AS250AAAA
TE0260AS260AAAB
TE0260AS660AAAA
TE0260AS660AAAB
TE0260AT100AAAB
TE0260AW260AAAA
TE0260CT260AAAA
TE0260DS141AAAA
TE0260FM100AAAA
TE0260FM100AAAB
TE0260FM100HAAA
TE0260 50AAAA
TE0260FP010AAAA
TE0260FP100AAAA
TE0260FP100AAAB
TE0260FP100AAAH
TE0260FP110AAAA
TE0260FP110AAAB
TE0260FP130AAAA
TE0260FP130AAAB
TE0260FR010AAAA
TE0260FR100AAAA
TE0260FR100AAAB
TE0260FR100AAFA
TE0260FR130AAAA
TE0260FR140AAAB
TE0260FR220AAAB
TE0260FS010AAAA
TE0260FS090AAAB
TE0260FS100AAAA
TE0260FS100AAAB
TE0260FS100AAAC
TE0260FS100AABJ
TE0260FS100AAFA
TE0260FS100AAFW
TE0260FS101AAAB
TE0260FS101AAAW
TE0260FS130AAAA
TE0260FS130AAAB
TE0260FS210AAAB
TE0260FS250AADJ
TE0260FS280AAAA
TE0260FS330AABP
TE0260FS330AADJ
TE0260FS330AAFB
TE0260MM100BBCP
TE0260MR130AAAA
TE0260MS010AAAA
TE0260MS010AAAB
TE0260MS100AAAB
TE0260MS110AAAB
TE0260MS130AAAA
TE0260MS250AABP
TE0260MS260AAAA
TE0260MS260BBCN
TE0260UR130AAAB
TE0260UR250AAAB
TE0260UR250AAAG
TE0260US100AAAB
TE0260US110AAAA
TE0260US120AAAA
TE0260US250AAAB
TE0260US250AAAF
TE0260US250AAAG
TE0260US250AAAJ
TE0260US250AADD
TE0260US250AAFB
TE0260US250AALF
TE0260US260AAAB
TE0295AM100AAAA
TE0295AM100AAAB
TE0295AM100HAAB
TE0295AM110AAAA
TE0295AM110AAAB
TE0295AM220AAAA
TE0295AM250AAAA
TE0295AP010AAAA
TE0295AP100AAAA
TE0295AP100AAAB
TE0295AP100AAAC
TE0295AP110AAAA
TE0295AP110AAAB
TE0295AP130AAAA
TE0295AP220AAAA
TE0295AP220AAAB
TE0295AP260AAAA
TE0295AR100AAAA
TE0295AR110AAAB
TE0295AS010AAAA
TE0295AS010AAAB
TE0295AS010AAAC
TE0295AS010AABJ
TE0295AS100AAAA
TE0295AS100AAAB
TE0295AS100AAAC
TE0295AS100FSAA
TE0295AS110AAAA
TE0295AS110AAAB
TE0295AS120AAAC
TE0295AS130AAAA
TE0295AS130AAAB
TE0295AS130AAAC
TE0295AS130AAAG
TE0295AS130AANU
TE0295AS130AAUU
TE0295AS210AAAB
TE0295AS210AAAC
TE0295AS220AAAA
TE0295AS260AAAB
TE0295AS660AAAA
TE0295AT220AAAA
TE0295AT260AAAA
TE0295AT260AAAB
TE0295CT260AAAA
TE0295DT260AAAA
TE0295FM100AAAB
TE0295FM100AAFA
TE0295FM110AAAB
TE0295 10AAAC
TE0295FP100AAAA
TE0295FP100AAAB
TE0295FP100AAAC
TE0295FP100FSAA
TE0295FP110AAAA
TE0295FP110AAAB
TE0295FP120AAAB
TE0295FP130AAAA
TE0295FP130AAAB
TE0295FP210AAAC
TE0295FR100AAAA
TE0295FR100AAAB
TE0295FR130AAAA
TE0295FR250AAAA
TE0295FS010AAAA
TE0295FS100AAAA
TE0295FS100AAAB
TE0295FS100AAAH
TE0295FS100FSAA
TE0295FS110AAAA
TE0295FS120AAAB
TE0295FS130AAAA
TE0295FS130AAAB
TE0295FS210AAAA
TE0295FS210AAAB
TE0295FS250AAAB
TE0295FS260AAAA
TE0295FS330AAFB
TE0295MN260AAAB
TE0295MR100AAAA
TE0295MS010AAAB
TE0295MS100AAAA
TE0295MS100AAAB
TE0295MS110AAAA
TE0295MS110AAAB
TE0295MS130AAAA
TE0295MS260AAAA
TE0295MT260AAAC
TE0295NS100AAAB
TE0295UR120AAAB
TE0295UR130AAAB
TE0295UR250AAAA
TE0295UR250AAAB
TE0295UR250AAAF
TE0295UR250AAAJ
TE0295US100AAAA
TE0295US100AAAB
TE0295US110AAAA
TE0295US110AABJ
TE0295US120AAAA
TE0295US120AAAB
TE0295US120AAAF
TE0295US120AACP
TE0295US130AAAB
TE0295US250AAAA
TE0295US250AAAF
TE0295US250AAAJ
TE0295US250AABP
TE0295US250AACP
TE0295YT260AAAC
TE0330AM100AAAA
TE0330AM100AAAB
TE0330AM130AAAB
TE0330AM220AAAA
TE0330AM260AAAC
