Compact Volume Low Speed High Torque Hydraulic Motor For Combine Harvester

Large Image : Compact Volume Low Speed High Torque Hydraulic Motor For Combine Harvester

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMR100

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pieces
Price:	Negotiable
Packaging Details:	1 pc/ inner carton, 3 pcs/ outer carton, 27x40x14cm, transport with wooden pallet, 1500 pcs/ 20GP, 3000 pcs/ 40GP
Delivery Time:	10 - 15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, Payple
Supply Ability:	70000 pieces per year

Contact Now

Detailed Product Description

Product:	Hydraulic Harvester Motor	Manufacture:	HANJIU
Model:	BMR-3-F-D-2-A-2-A	Flange:	2 Bolt Mount, Pilot 82.55mm
Shaft:	25.4mm	Oil Port:	Port G1/2, Drain G1/4
Highlight:	cycloid hydraulic motor , hydraulic rotary motor

Orbit Hydraulic Motor For Combine Harvester, Sweepers, Hole Digger

The company mainly produce and provide orbit hydraulic motor, hydraulic spare parts to industry of:

APPLICATIONS:

Agricultural planting,
Ground care, Sweeping and Mowing machinery,
Construction,
Forestry,
wood processing and cutting,
Farmland irrigation winch ,
Winch Wood from deforestation,
Construction machinery and platform,
Pilling machines,
Oceanographic research winch,
Nautical equipment and winches for fishing boats,
Towing and mooring winches, and many more.

PRODUCT INTRODUCE:

Orbital Hydraulic Motors Low speed high torque type
used for sweeping, cutting, rotating, harvesting, lifting, windling, load handling, delivery and more power transmission applications.
displacement 8ml/r to 1000ml/r, speed from 100RPM to 2000RPM, flow from 40Lpm to 225Lpm, working pressure from 9MPa to 30MPa, torque from 75N*M to 3000N*M.
form, fit and 100% interchange with wolrd popular models and brands Like , Eaton, M+S, SAM, and others

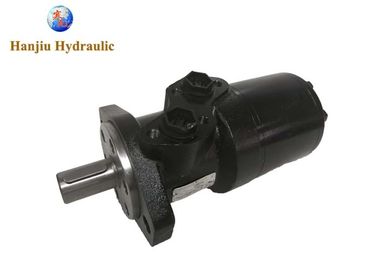

PRODUCT INTRODUCE OF THE MOTOR IN THE PICTURE:

Gerotor Hydraulic Motor BMR series
Same as Eaton Char-Lynn Gerotor Hydraulic Motor S, T, W
Same as Gerotor Hydraulic Motor OMR
Same as M+S Gerotor Hydraulic Motor MR
Same as White Cross Hydraulic Motor RE
Same as SAM Brevini Hydraulic Motor BR

Manufacturer: HANJIU
Model: BMR-3-F-D-2-A-2-A
Description: Hanjiu Gerotor Hydraulic Motor
Packaging Condition Details: 1 pc/ inner carton, 3 inner cartons/ outer cartons.

SPECIFICATIONS OF THE MOTOR IN THE PICTURE:

Shaft Length: 40mm
Shaft Diameter: 25.4mm
Number of Ports: 2
Number of Drain Port: 1
Size of Ports: G1/2, G1/4

MAIN SPECIFICATIONS:

Technical data for BMR with 25 and 1 in and 1 in splined and 28.56 tapered shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1085	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1220	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	360	360	390	390	365
	int.	83	126	220	280	340	430	440	490	535	495
	peak	105	165	270	320	370	460	560	640	650	680
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	10	7	6	5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	9.5	9	8
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	16.5	13	11	9	7
	int.	16.5	17.5	20	20	20	20	17.5	15	13	10
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	20	17.5	15
Max. flow (L/min)	cont.	40	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	45	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

Technical data for BMR with 31.75 and 32 shaft:

Type		BMR BMRS 36	BMR BMRS 50	BMR BMRS 80	BMR BMRS 100	BMR BMRS 125	BMR BMRS 160	BMR BMRS 200	BMR BMRS 250	BMR BMRS 315	BMR BMRS 375
Geometric displacement (cm3 /rev.)		36	51.7	81.5	102	127.2	157.2	194.5	253.3	317.5	381.4
Max. speed (rpm)	cont.	1250	960	750	600	475	378	310	240	190	155
Max. speed (rpm)	int.	1520	1150	940	750	600	475	385	300	240	190
Max. torque (N·m)	cont.	72	100	195	240	300	380	450	540	550	580
	int.	83	126	220	280	340	430	500	610	690	690
	peak	105	165	270	320	370	460	560	710	840	830
Max. output (kW)	cont.	8.5	9.5	12.5	13	12.5	12.5	11	10	9	7.5
Max. output (kW)	int.	9.8	11.2	15	15	14.5	14	13	12	10	9
Max. pressure drop (MPa)	cont.	14	14	17.5	17.5	17.5	17.5	17.5	17.5	13.5	11.5
	int.	16.5	17.5	20	20	20	20	20	20	17.5	15
	peak	22.5	22.5	22.5	22.5	22.5	22.5	22.5	22.5	21	17.5
Max. flow (L/min)	cont.	45	50	60	60	60	60	60	60	60	60
Max. flow (L/min)	int.	55	60	75	75	75	75	75	75	75	75
Weight (kg)		6.5	6.7	6.9	7	7.3	7.6	8	8.5	9	9.5

* Continuous pressure:Max.value of operating motor continuously.
* Intermittent pressure:Max.value of operating motor in 6 seconds per minute .
* Peak pressure:Max.value of operating motor in 0.6 second per minute.

Compact Volume Low Speed High Torque Hydraulic Motor For Combine Harvester 0

Please do not hesitate to contact us for further information, inquiries or orders.

Thank you for choosing 'Hanjiu' Hydraulics.
