Product Details:
Payment & Shipping Terms:
|
| Features: | OMH500 / MH500 | Product Name: | Low RPM Hydraulic Motor BMH |
|---|---|---|---|
| Brand Name: | HANJIU | Model Number: | BMH500 |
| Displacement: | 200cc - 750cc | Application: | Concrete Pump |
| High Light: | orbital hydraulic motor,cycloid hydraulic motor |
||

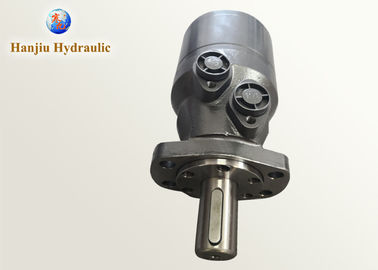

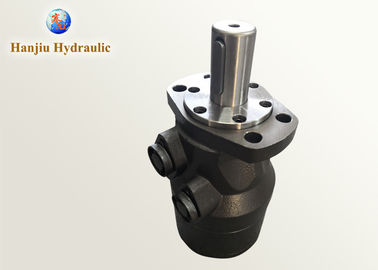

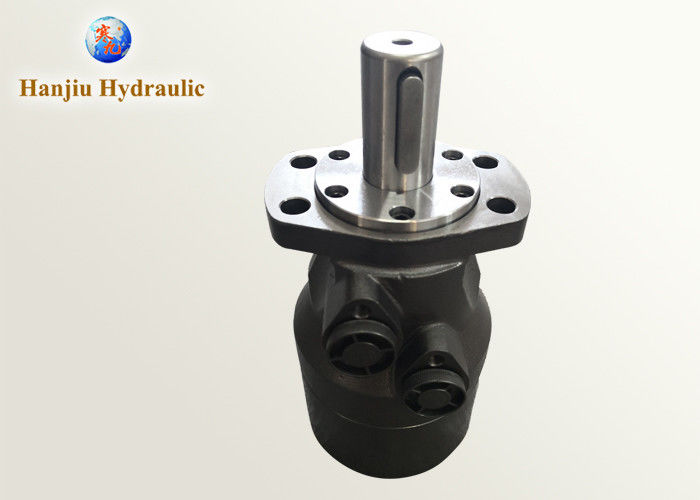

Putzmeister Concrete Pump 238130001 151H1016 OMH500 Orbital Hydraulic Motor
OMH500 151H-1016 = Hanjiu BMH500
Shaft : Ø32mm
Key: 10*8*45
Displacement: 500cc
Oil Port: G1/2"
• Hanjiu Hydraulic BMH Motor have a good application on Concrete Pumps.
• Hanjiu Hydraulic BMH Motor quality mtach than OMH, M+S MH Motor.
FEATURES
• Constant operating torque over a wide speed range
• Smooth running over the entire speed range
• High starting torque
• High pressure oil seals
• Low speed, high torque motors
• Roller vane type drive system – offers high volumetric efficiency and long life.
| Concrete Pump Auger Motor | |
| BMH / MH / OMH | 160cc |
| BMH / MH / OMH | 200cc |
| BMH / MH / OMH | 250cc |
| BMH / MH / OMH | 315cc |
| BMH / MH / OMH | 400cc |
| BMH / MH / OMH | 500cc |
| BMH / MH / OMH | 750cc |
Details
| Type |
BMH 200 |
BMH 250 |
BMH 315 |
BMH 400 |
BMH 500 |
|
|
Displacement (cc/rev) |
203.2 | 255.9 | 316.5 | 406.4 | 489.2 | |
|
Max torque (n.m) |
cont | 510 | 621 | 740 | 850 | 830 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max pressure (mpa) |
cont | 17.5 | 17.5 | 17.5 | 15.5 | 12.5 |
| int | 20 | 20 | 20 | 19 | 16 | |
|
Max speed rate (rpm) |
cont | 366 | 290 | 236 | 183 | 155 |
| int | 439 | 348 | 282 | 220 | 184 | |
|
Max flow (L/min) |
cont | 75 | 75 | 75 | 75 | 75 |
| int | 90 | 90 | 90 | 90 | 90 | |
|
Weight(kg)
|
10.5 | 11 | 11.5 | 12.3 | 13.0 | |
BMH Motor Application
KCP Concrete Pump
Liebherr Concrete Pump
XCMG Concrete Pump
Vitale-Robinson Concrete Pump
CIFA Concrete Pump
Junjin Concrete Pump
Putzmeister Concrete Pump
Schwing Concrete Pump
Latrobe Concrete Pump
Hanjiu BMH Motors
