|Model No.:||6P40||Warranty:||12-18 Months|
|Spool:||1, 2, 3, 4, 5, 6, ...||Flow:||40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...|
hydraulic monoblock valves,
hydraulic directional valve

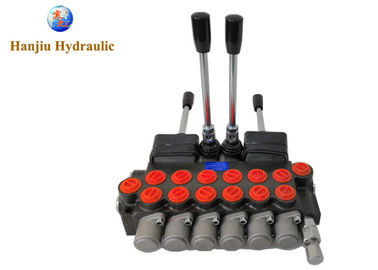

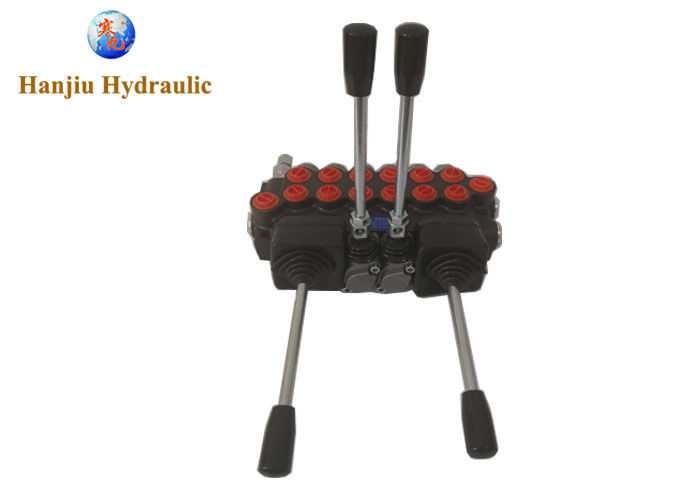

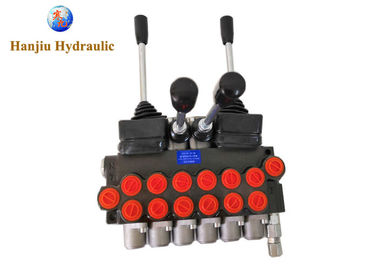

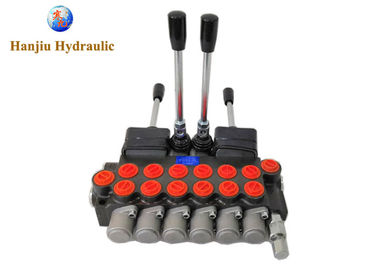

6P40 joystick Hydraulic Directional Control Valve 40lpm manual control Valve interchangeable spool
P40 series valves with middle-high pressure monoblock construction is developed based on Europe
|Viscosity||12 ...800 mm2/s|
|Filtration||10 to NAS 1638|
|Max operating pressure||315 bar|
|Back pressure||50 bar|
|Nominal flow||40 l/min|
|Leakage(A,B-T)||15cm3/min at 120bar|
|Spool stroke||6 mm|
|Actuating force||< 200 N|
|Modification/ Spools||with 1 to 7|
Functions and features
1. Compact size, light and handy structure, small weight, simple operation and safety & reliability;
2. Work group number can be added according to demand, 7 spools at most.
3. Complete configuration of primary and secondary overflow valves; Opening pressure to be adjusted as required by customers;
4. Series-parallel connection structure and external load retaining valve ensure that the actuating mechanism with higher load will not fall in operation.
5. Modules with different functions on the valve group can realize the switchover between single and dual pumps to improve working efficiency and save energy consumption.
Manually or mechanically controlled hydraulic directional control valve Р40 is designed for distribution and control of work flow between generator (pump) and executive mechanisms (cylinder, hydro-motor, etc.). It is manufactured with 1 to 7 plungers, with parallel or serial action, with common or individual back valve for each plunger, with or without safety valve.
1, Inner check valve: The check valve inside the valve body is to insure the hydraulic oil not to be
2, Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working
3, Oil way: Parallel circuit, power beyond option
4, Control Way: Manual control, pneumatic control, hydraulic and electric control for optional.
5, Valve construction: monoblock construction, 1-6 levers.
6, Spool Function: O,Y, P,A.
7, Option: Hydraulic lock is available to be added on A and B port.
8, Available with manual, pneumatic control, electric and pneumatic control, hydraulic and electric
control and etc.
