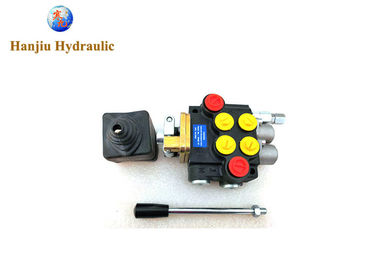

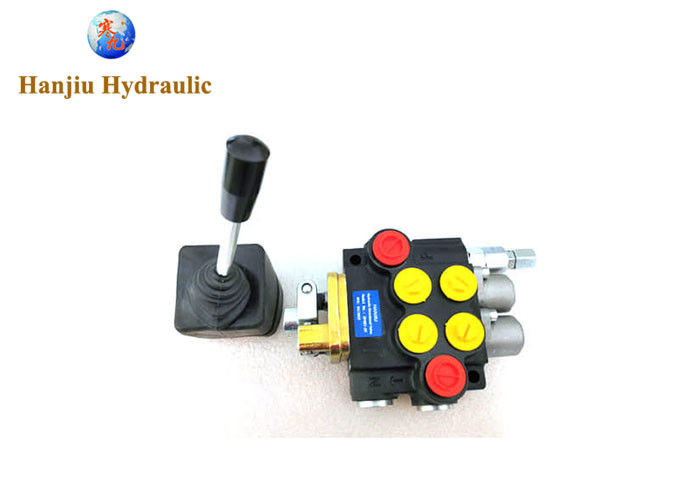

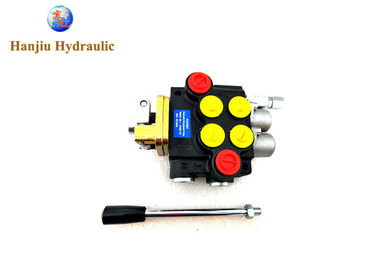

2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder

2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder
2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder 2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder 2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder

Large Image :  2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder

Product Details:
Place of Origin: CHINA
Brand Name: HANJIU
Certification: CE
Model Number: 2P40J-OT
Payment & Shipping Terms:
Minimum Order Quantity: 100 Sets
Price: Negotiable
Packaging Details: Inner carton / Outer carton / Pallet
Delivery Time: 25 - 35 work days
Payment Terms: L/C, Western Union, T/T
Supply Ability: 1000000 sets per year
Detailed Product Description
Products Name: Loader Control Valve Model No.: 2P40
Warranty: Come With 1 Year Warranty Spool: 2
Flow: 40 Liters/ Min Rated Pressure: 16 MPa
Spool Function: 'O' Position: 'T'
P,T,N: 1/2' BSP A, B: 3/8' BSP
High Light:

hydraulic control valve

,

hydraulic directional valve



2 Spool Hydraulic Joystick Control Valve 11gpm, Double Acting Cylinder





Quick Details:

Model No.: 2P40J-OT

P,T,N: 1/2' BSP

A, B: 3/8' BSP

Liters: 40 l/min




Ambient temperature -40C...+60C
Viscosity 12 ...800 mm2/s
Fluid temperature -15C...+80C
Filtration 10 to NAS 1638
Max operating pressure 315 bar
Back pressure 50 bar
Nominal flow 40 l/min
Leakage(A,B-T) 15cm3/min at 120bar
Spool stroke +/-7 mm
Actuating force < 200 N
Modification/ Spools 1 to 8












Valve Monoblock
Description Model Control Quotation Remark
P40 manual 1 P40/ 1 manual US$ more function available
P40 manual 2 P40/ 2 manual US$ more function available
P40 manual 3 P40/ 3 manual US$ more function available
P40 manual 4 P40/ 4 manual US$ more function available
1-6 lever available
P80 manual 1 P80/ 1 manual US$ more function available
P80 manual 2 P80/ 2 manual US$ more function available
P80 manual 3 P80/ 3 manual US$ more function available
P80 manual 4 P80/ 4 manual US$ more function available
1-6 lever available
  * manual, joystick, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic available











We provide hydraulic directional control valves

Our valves compatibel with Italy and Bulgaria makes, like Badestnost, with excellent perofrmance and much better offer



We provide with Joystick, manual, cable, pneumatic, solenoid, electro-pneumatic, electro-hydraulic control, It's available from 40 liters - 200 liters, and upto 1 spools are also provided by us, We have many options for the monoblock and sectional types



We are professional manufacturer to produce Hydraulic Monoblock and Sectional Directional Control Valves to suit hydraulic systems of agricultural, forestry, construction, minging, transport, industrial, drilling machine, sanitation and many more




2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder 02 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder 1


2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder 22 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder 3

2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder 42 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder 5


2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder 6


2 Spool Hydraulic Joystick Control Valve 11gpm , Double Acting Cylinder 7
