| Model No.: | HSV9 | Warranty: | 12-18 Months |
|---|---|---|---|
| DC Optional: | 24V | Flow: | 90L/MIN |
| Oil Port: | G3/4 | Rated Pressure: | 25mpa |
| High Light: | HSV9,24V electric hydraulic diverter valve,G3/4 electric hydraulic diverter valve |
||

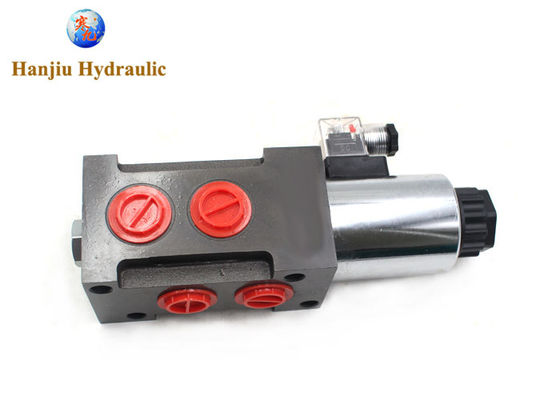

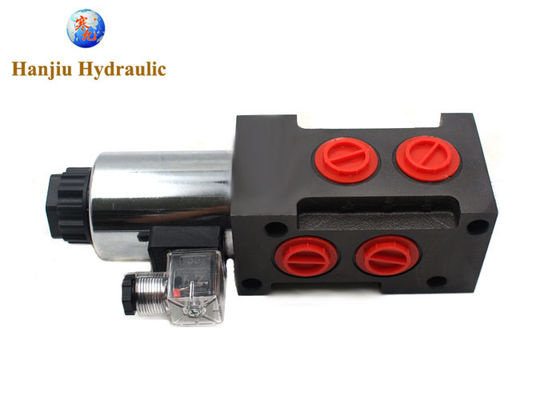

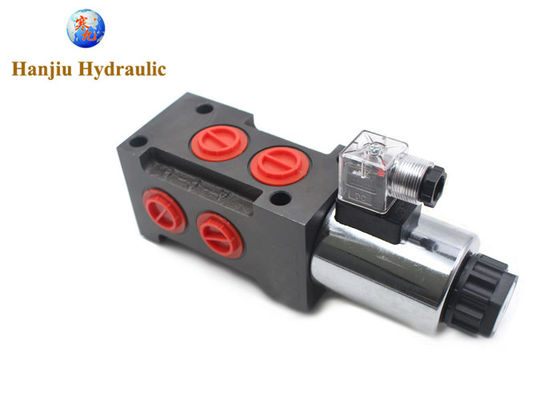

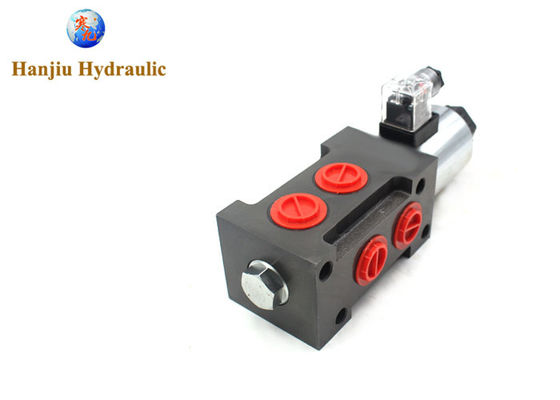

hydro-pack SVV90 solinoid valve Series Selector Valves electric diverter valve 24V - SVV 6/2-24V 90 Liters
Directional control valves are one of the core elements in a hydraulic circuit. They help directing the fluid to different components in the system.
Directional control valves perform only three functions:
There is a part called "spool "inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hanjiu provide monoblock directional control valves with different capacities and spool control options such as hydraulic, pneumatic or with cables/joysticks.
SVV90 valves are 6 ways, 2 positions (6/2) solenoid operated valves. They are used for selective connection of different cylinders/hydraulic motors in the application. When valve is de-energised, oil directs from D & C ports to first actuator. When valve coil is energised, oil directs from A & B ports to second actuator
Specifications:
| parameter | value |
| Number of Work Sections | from 1 to 3 |
| Max working pressure | 315 bar |
| Operating pressure | 210 bar |
| Rated flow | 90 l / min |
| Working temperature | from -30 ° С to + 50 ° С |
| Fluid viscosity | from 20 to 400 mm 2 / s |
| Fluid temperature | from -20 ° С to + 70 ° С |
| Filtration | Grade 9 NAS1638 |
| Supply Voltage / Power Consumption | 12VDC * / 36W and 24VDC * / 29W |
| Switching frequency max | 15,000 times per hour |
| Duty cycle | one hundred% |
Ordering code
HSV9---X---X---X---X
1 2 3 4 5
1.series code
2.Model type: A/B/C
3.Number of sections:1-3( Model A,B available for stack)
4.Ports size
| Code | Port Thread size |
| P1 | |
| P2 | |
| P3 | |
5.Solenoid type
Model type
Through the ports P1 and P2, the solinoid valve DVS6-6 / 2L diverter is connected to one of the working sections of the regular directional control valves
To ports C D - connect consumer 1
To ports A1 B1 - connect consumer 2
The management of two new consumers is carried out with one lever of a standard hydraulic distributor.
Switching between consumers - by using a button installed in a convenient place for the operator, for example, a button joystick with cable joystick or control button Remote control handles handles
