Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor

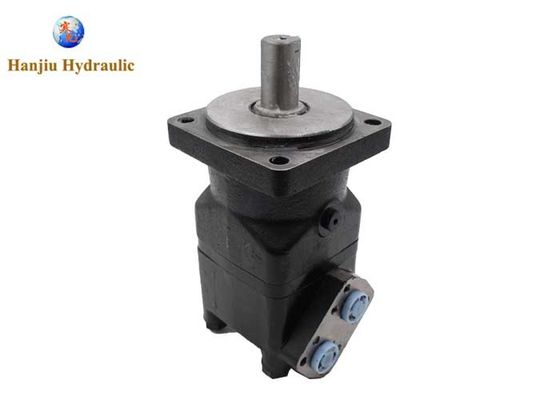

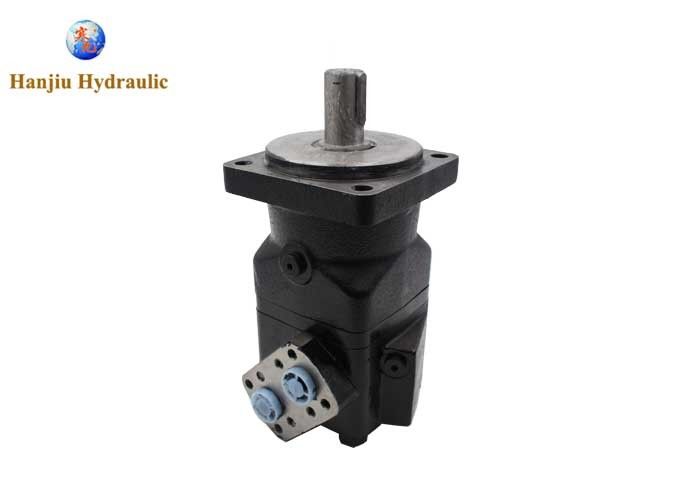

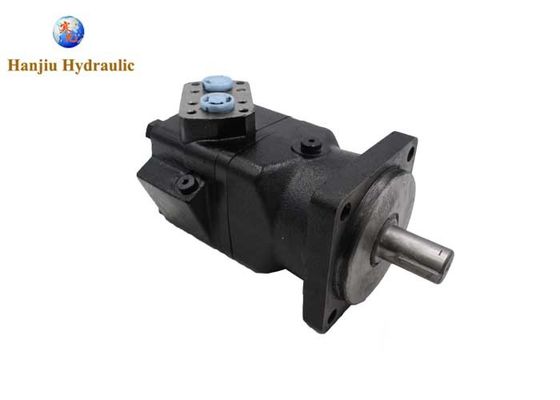

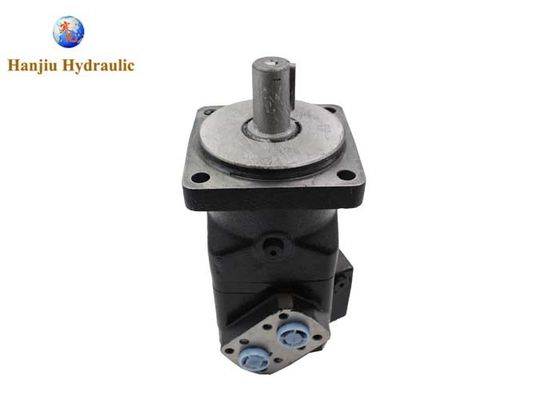

Large Image : Torque 1036 N*M 31.75mm Shaft Heavy Duty Hydraulic Motor

Product Details:

Place of Origin:	China
Brand Name:	HANJIU
Certification:	CE
Model Number:	BMTE-250-CCG1SFB

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	Negotiable
Packaging Details:	1 pc/ wooden box, wooden pallet for sea shipping
Delivery Time:	10 - 15 work days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union
Supply Ability:	100000 pieces per year

Contact Now

Detailed Product Description

Features:	High Torque	Product:	High Torque Hydraulic Motor
Type:	BMT Series	Applications:	Mining & Drilling Equipment
Used On:	Hydraulic System	Rotary:	Left & Right
Highlight:	1036 N*M Heavy Duty Hydraulic Motor , 31.75mm Heavy Duty Hydraulic Motor , 625rpm Heavy Duty Hydraulic Motor

BMTE-250-CCG1SFB Heavy Duty Hydraulic Motor Torque 1036 n*m 31.75mm shaft

Main Specifications:

Type		BMT 160	BMT 200	BMT 230	BMT 250	BMT 315	BMT 400	BMT 500	BMT 630	BMT 800
Geometric displacement (cm3 /rev.)		161.1	201.4	232.5	251.8	326.3	410.9	523.6	629.1	801.8
Max. speed (rpm)	cont.	625	625	536	500	380	305	240	196	154
Max. speed (rpm)	int.	780	750	643	600	460	365	285	233	185
Max. torque (N·m)	cont.	470	590	670	730	950	1080	1220	1318	1464
	int.	560	710	821	880	1140	1260	1370	1498	1520
	peak	669	838	958	1036	1346.3	1450.3	1643.8	1618.8	1665
Max. output (kW)	cont.	27.7	34.9	34.7	34.5	34.9	31.2	28.8	25.3	22.2
Max. output (kW)	int.	32	40	40	40	40	35	35	27.5	26.8
Max. pressure drop (MPa)	cont.	20	20	20	20	20	18	16	14	12.5
	int.	24	24	24	24	24	21	18	16	13
	peak	28	28	28	28	28	24	21	19	16
Max. flow (L/min)	cont.	100	125	125	125	125	125	125	125	125
Max. flow (L/min)	int.	125	150	150	150	150	150	150	150	150
Max. inlet pressure (MPa)	cont.	21	21	21	21	21	21	21	21	21
	int.	25	25	25	25	25	25	25	25	25
	peak	30	30	30	30	30	30	30	30	30
Weight (kg)		19.5	20	20.4	20.5	21	22	23	24	25

* Continuous pressure :Max. value of operating motor continuously.
* Intermittent pressure :Max. value of operating motor in 6 seconds per minute.
* Peak pressure:Max. value of operating motor in 0.6 second per minute.

BMT is the most common one used on mining & drilling machines.

Flange
4	4-Ø14 Square-flangeØ160,pilotØ125×9	BMT
K6	4-Ø14.5Square-flangeØ162,pilotØ127×9
W	4-Ø18 Wheel-flangeØ200,pilotØ160×7
D	4-Ø14 Circle-flange Ø160,pilot Ø125×8	BMTS
E	4-Ø14.5 Square-flange Ø162, pilot Ø127×10	BMTS
Output Shaft
M	Shaft Ø40,parallel key 12×8×70	BMT
G	Shaft Ø38.1,parallel key 9.52×9.52×57.15
F	Shaft Ø38.1,splined tooth 17-DP12/24
FD	Shaft Ø38.1,splined tooth 17-DP12/24
T	Cone-shaft 1:10 Ø45,parallel key B12×8×28
T1	Cone-shaft 1:8 Ø45,parallel key 11.13×11.13×31.75
SL	shaft Ø34.85,Splined key,Splined key 6-34.85×28.14×8.64
G1	shaftØ31.75,parallel key 7.96×7.96×40
F1	Shaft Ø31.75,splined tooth 14-DP12/24
Omit	Short shaft 16-DP12/24	BMTS
Port and Drain Port
D	G3/4 Manifold Mount,4-M10 , G1/4
M	M27×2 Manifold Mount,4-M10, M14×1.5
S	1-1/16-12UN O-ring, 9/16-18UNF
S1	1-1/16-12UN O-ring, 7/16-20UNF
G	G3/4,G1/4
M3	M27×2,M14×1.5

Hanjiu produce and supply hydraulic motors to kind of mining drilling equipments.

Orbital Hydraulic Motors, Low Speed High Torque type

totally we have 7 type motors available, for heavy duty drilling work, we recommend our BMS, BMT, BMV series. These motors used on:

rock drill rig,
multipurpose drill rig,
coring investigation drill rig,
soil investigation drill rig,
piling grouting drill rig,
jet grounting drill rig,
water well drill rig,

Please do not hesitate to contact us for further information, inquiries or orders.

Thank you for choosing 'Hanjiu' Hydraulics.
