Truck Cranes 60 Liters 7 Spools Bsp 1/2" Sectional Control Valve

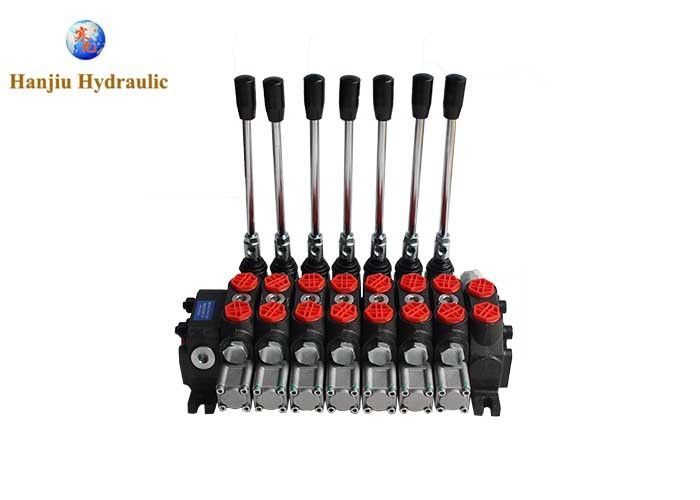

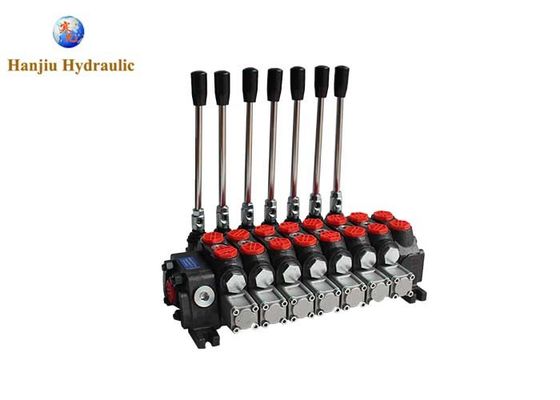

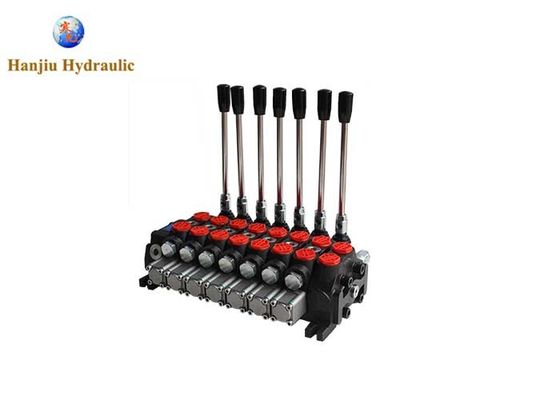

Large Image : Truck Cranes 60 Liters 7 Spools Bsp 1/2" Sectional Control Valve

Product Details:

Place of Origin:	CHINA
Brand Name:	HANJIU
Certification:	CE
Model Number:	DCV60-7-YT-YW

Payment & Shipping Terms:

Minimum Order Quantity:	30 Sets
Price:	Negotiable
Packaging Details:	Carton Packing and finally with a Tray, or Wooden Box
Delivery Time:	10-15 work days
Payment Terms:	L/C, T/T
Supply Ability:	300000 sets per year

Contact Now

Detailed Product Description

Model No.:	DCV60	Warranty:	12-18 Months
Spool:	1, 2, 3, 4, 5, 6, ...	Flow:	40lt, 50lt, 60lt, 80lt, 100lt, 120lt, 140lt, ...
Spool Function:	O/Y/A	Max Pressure:	350bar
Highlight:	60 liters sectional control valve , 7 spools sectional control valve , 1/2" sectional control valve

Truck Cranes Sectional Control Valve 60 liters 7 Spools BSP 1/2"Port

DCV60 is used for switching on/off and directing the working fluid between head flow generators,head flow consumers and the tank.It is a sectional directional control valve with manual control.They can be integrated in packages of up to 12 sections.

Norminal Flow	60 L/min
Max Flow	16GPM
Max Pressure	315 bar/5076PSI
Control Type	manual, pneumatic, hydraulic, electro-hydraulic
Allowed back pressure	≤1 mpa
Oil port size	customizable
Operating range	15-75MM2/S
Viscosity	min 12 MM2/S
	max 400 MM2/S
Structure	sectional 1-12sections

Auxiliary valve:over load valve, anti-cavitation valve,combined valves, etc.
Spool function:A, O, Y, P, etc.
Control type:manual, pneumatic, electro-hydraulic, electro-pneumatic, etc.
Circuit type:parallel,series-parallel
C port(oil bridge) as hydraulic source for other parts
Structure:Sectional

oil ports

BSP Thread		Metric thread		US standard UNF thread		US standard NTP thread
code	Thread size	code	Thread size	code	Thread size	code	Thread size
G04	G1/4	M16	M16X1.5	U10	5/8-12UNF	N06	NPT3/8
G06	G3/8	M18	M18X1.5	U12	3/4-16UNF	N08	NPT1/2
G08	G1/2	M20	M20X1.5	U14	7/8-14UNF	N12	NPT3/4
G12	G3/4	M22	M22X1.5	U16	1-12UNF
		M27	M27X2

Truck Cranes 60 Liters 7 Spools Bsp 1/2" Sectional Control Valve 0

Truck Cranes 60 Liters 7 Spools Bsp 1/2" Sectional Control Valve 1

Truck Cranes 60 Liters 7 Spools Bsp 1/2" Sectional Control Valve 2

Truck Cranes 60 Liters 7 Spools Bsp 1/2" Sectional Control Valve 3

Truck Cranes 60 Liters 7 Spools Bsp 1/2" Sectional Control Valve 4

Truck Cranes 60 Liters 7 Spools Bsp 1/2" Sectional Control Valve 5

Truck Cranes 60 Liters 7 Spools Bsp 1/2" Sectional Control Valve 6

RELATED PRODUCTS:

We offer a variety of monoblock and sectional directional control valves for use in agricultural, marine, industrial, construction sectors.

Truck Cranes 60 Liters 7 Spools Bsp 1/2" Sectional Control Valve 7

Hanjiu: a professional hydraulic components manufacture in China,our main products are hydraulic motors/steering units/monoblock control valves/gear pumps, we have a rapid development in such a short time due to the high quality prodcuts,competitive price,stable delivery and best after sales service.
