Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060 Series

Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060 Series
Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060 Series Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060 Series Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060 Series Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060 Series

Large Image :  Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060 Series

Product Details:
Place of Origin: China
Brand Name: HANJIU
Certification: CE
Model Number: 060
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: Negotiable
Packaging Details: Carton Box
Payment Terms: L/C, , T/T
Supply Ability: 100000 Pieces One Year
Detailed Product Description
Product Name: Hydraulic Power Steering 060 Brand: HANJIU
Displacement: 500cc Application: Tractors , Front Loaders,excavators
Pressure: 15mpa Featurer: Long Live, Less Licking
High Light:

hydraulic power steering 060

,

Hydro Steering Wheel 060

,

500cc hydraulic power steering

 Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060series



The hydraulic steering wheel is an oil metering and distributor in the working steering system of agricultural, municipal, special, road and construction equipment.

The hydraulic steering wheel functions in the hydraulic systems of machines for the accuracy of the flow rate of the fluid used in the system,

and it also regulates the size of the oil flow that goes from the gear pump to the executive hydraulic cylinders of the vehicle wheel steering mechanism, the speed of which does not exceed 60 km / h, while the size of the oil supply to the bodies involved in the work, is directly proportional to the angle of rotation of the hydraulic steering shaft.

Hydraulic wheel 060 - 500 is used on: T - 150, KhTZ, DZ-98, ZTM-216, EO-4321, T-150K, MoAZ.

1. Characteristic Features

060 Hydraulic Power Steering offer the following advantages

► Minimizes steering linkage—reduces cost, provides flexibility in design.

► Provides complete isolation of load forces from the control station—provides operator comfort.

► Provides continuous, unlimited control action with very low input torque.

► Provides a wide selection of control circuits and meter sizes.

► Can work with many kinds of power steering pumps or fluid supply.


2. Specification

Parameters Series
060-*-***-**-*
Function code 1,2,4 1,4
Displacement (mL/r) 50 63 80 100 125 160 200 250 280 315 400
Rated Flow (L/min) 5 6 8 10 12.5 16 20 25 28 32 40
Max.input pressure(Mpa) 16
Relief Valve Pressure Settings ( MPa) 06,07,08,10,12,14,15,16
Shock Valve Pressure Settings ( MPa) 12,13,14,16,18,20,21,22
Max.cont.back pressure 2.5
Weight(kg) 5.75 5.81 5.89 5.96 6.1 6.3 6.5 6.73 6.91 7.1 7.5
Dimension L (mm) 130 132 134 137 140 145 150 156 161 166 176

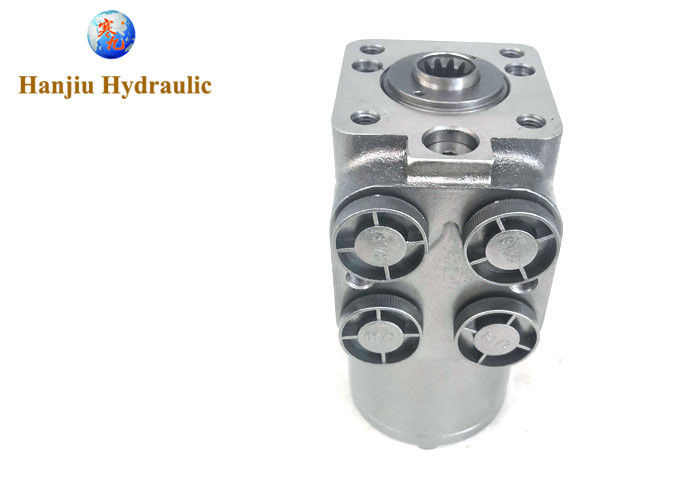

Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060 Series 0

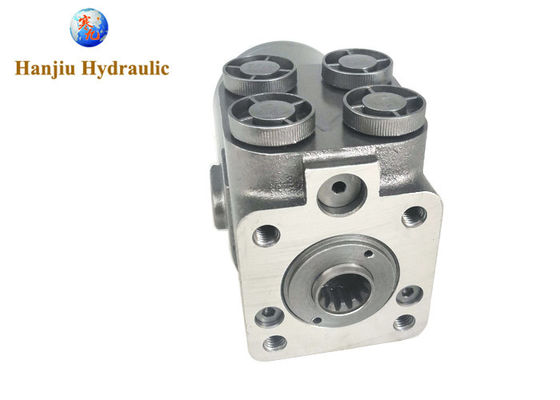

            Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060 Series 1

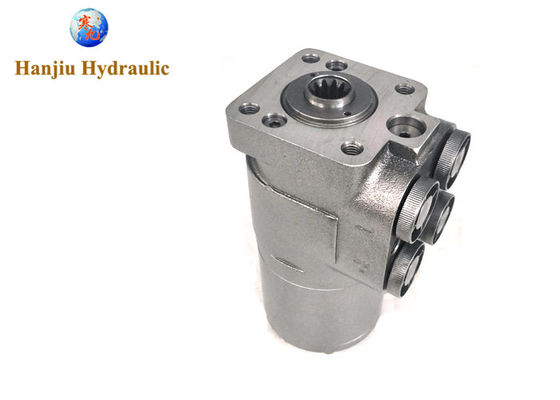

          Hydro Steering Wheel LIFUM-500 Front Loaders Hydraulic Service Repair Parts 060 Series 2





  Hanjiu hydraulic is specializing in Hydraulic orbital motors and Hydraulic obtirol steering units



  We are professional becasue we are focusing!
